WorkCentre 3210/3220 Multifunction Printer Service Manual 8-35
Service Parts Disassembly

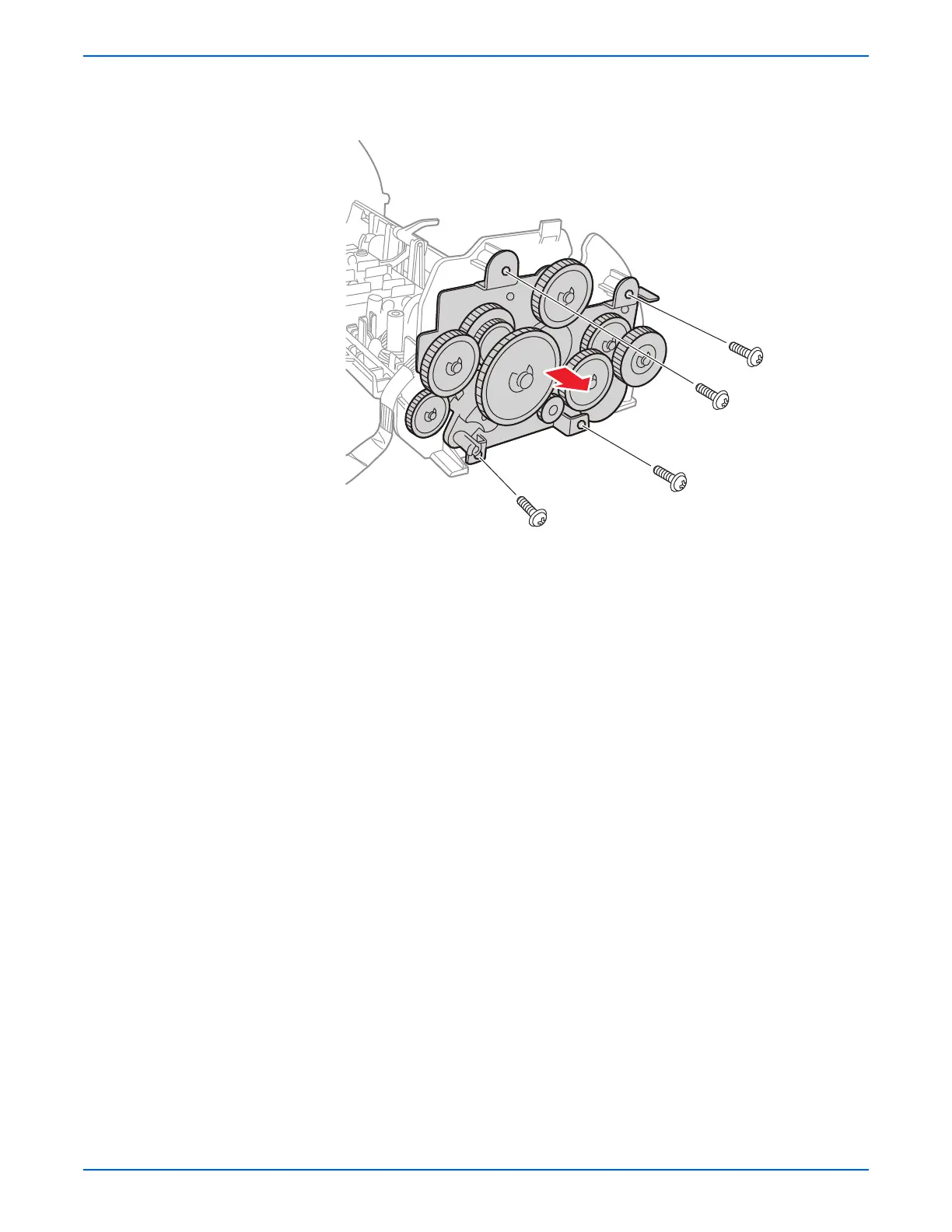

7. Remove 4 screws (12 mm, silver) that secure the ADF Motor.
8. Remove the ADF Motor.
s3210mfp-164
