WorkCentre 3210/3220 Multifunction Printer Service Manual 8-49
Service Parts Disassembly
Note
The middle cover remains with the printer.

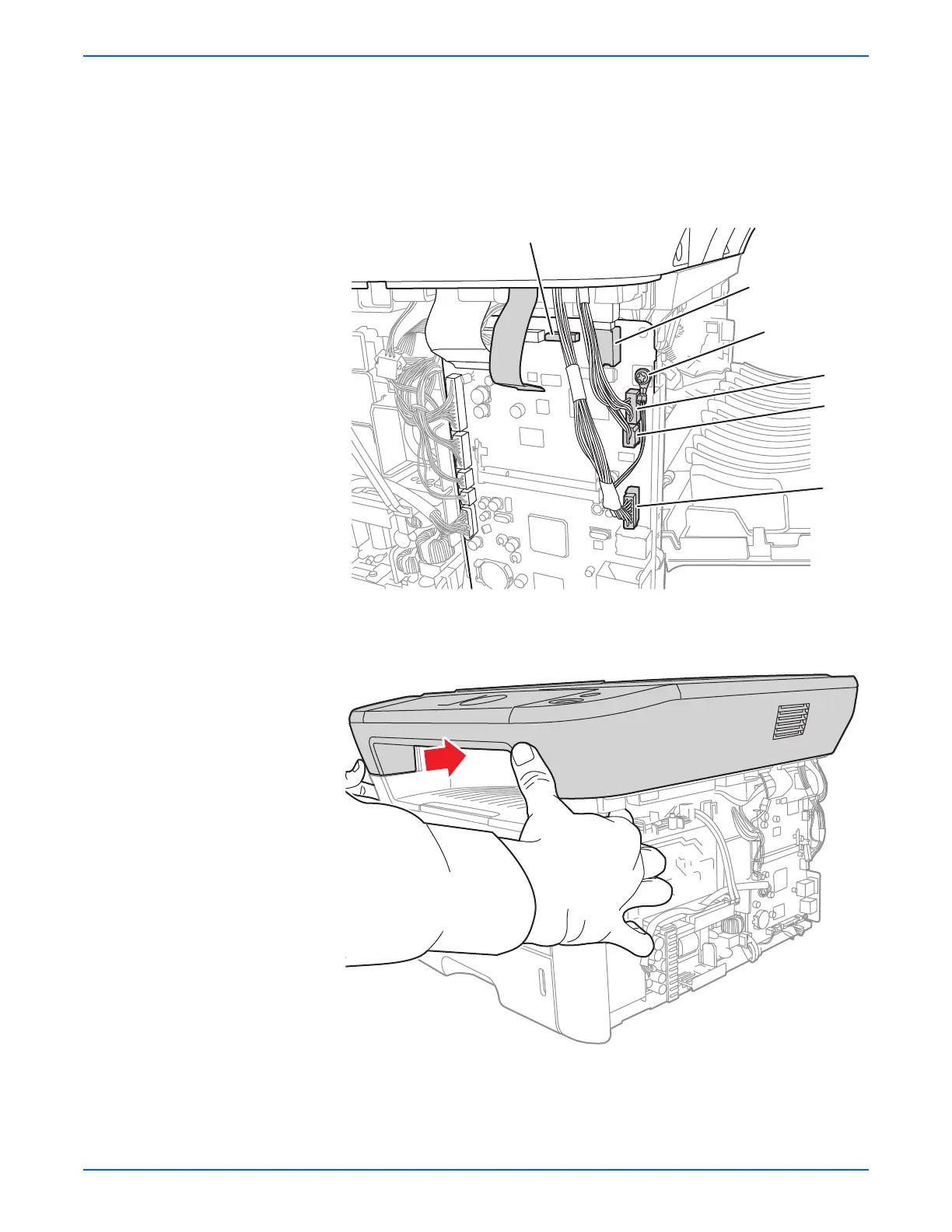

4. Disconnect the wiring harness connectors CN3, CN4, CN5, CN8, CN22,
and USB connector from the Main Controller Board.
5. Remove 1 screw (12 mm, silver) that secures the ground wire.
6. Push the Platen Assembly toward the rear to release the 2 tabs.
7. Lift and remove the Platen Assembly.
s3210mfp-160
CN22
USB Connector
Ground Screw
CN8
CN3
CN5
s3210mfp-221
