5.3 C: Tuning
160 YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual
5.3 C: Tuning
C parameters are used to set the acceleration and deceleration characteristics, as well as S-curves. Other parameters in
this group cover settings for torque compensation, and carrier frequency.
◆ C1: Acceleration and Deceleration Times
■ C1-01 to C1-04: Accel, Decel Time 1/2
Two different sets of acceleration and deceleration times can be set in the drive. They can be selected by digital inputs, by
the motor selection, or can be switched automatically. Acceleration time parameters always set the time to accelerate
from 0 Hz to the maximum output frequency (E1-04). Deceleration time parameters always set the time to decelerate
from maximum output frequency to 0 Hz. C1-01 and C1-02 are the default active accel/decel settings.
Switching Acceleration Times by Digital Input
Accel/decel time 1 are active by default if no input is set. The accel/decel time 2 can be activated by digital inputs (H1-
 = 7) as explained in Table 5.12.
Table 5.12 Accel/Decel Time Selection by Digital Input
Figure 5.19 shows an operation example for changing accel/decel. times. The example below requires that the stopping
method be set for “Ramp to stop” (b1-03 = 0).

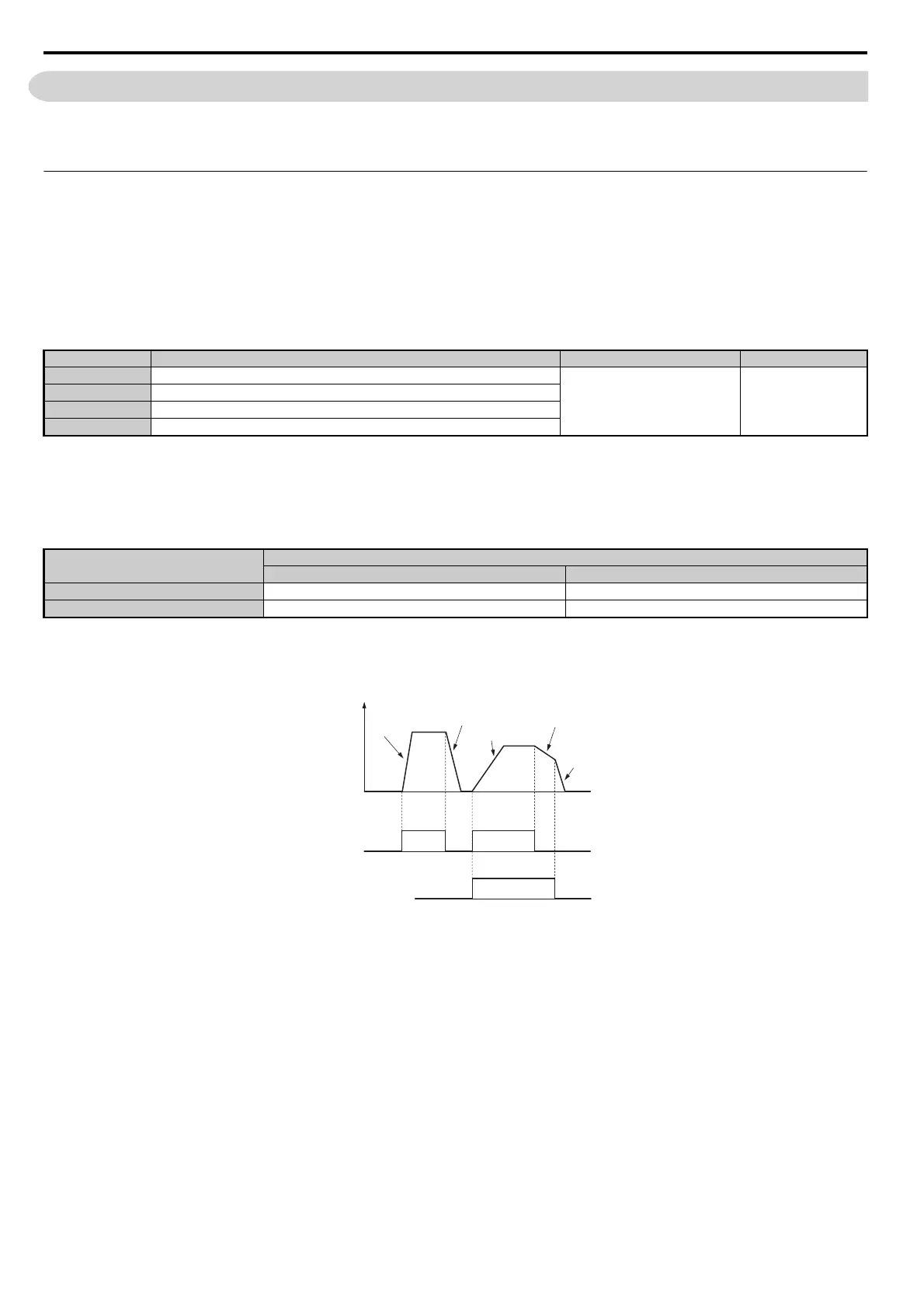

Figure 5.19
Figure 5.19 Timing Diagram of Accel/Decel Time Change
No. Parameter Name Setting Range Default
C1-01 Acceleration Time 1
0.0 to 6000.0 s 30.0 s
C1-02 Deceleration Time 1
C1-03 Acceleration Time 2
C1-04 Deceleration Time 2
Accel/Decel Time Sel. 1
H1- = 7
Active Times
Acceleration Deceleration
0 C1-01 C1-02
1 C1-03 C1-04
Output
frequency
Accel Time 1
(C1-01)
Decel Time 1
(C1-02)
Accel Time 2
(C1-03)
Decel Time 2
(C1-04)
Decel Time 1
(C1-02)
FWD (REV)
Run command
ON
OFF
ON
ON
Accel/Decel Time Selection 1
(Terminals S1 to S8, H1- = “7”)
