YASKAWA E1000 User Manual

3.10 Control I/O Connections
86 YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual
3.10 Control I/O Connections
◆ Sinking/Sourcing Mode Selection for Hardwire Baseblock Inputs
Use jumper S3 on the terminal board to select between Sink mode, Source mode or external power supply for the
HardWire Baseblock inputs H1 and H2 as shown in Table 3.15 (Default: Source mode, internal power supply.) Refer to
Switches and Jumpers on the Terminal Board on page 85 for locating jumper S3.

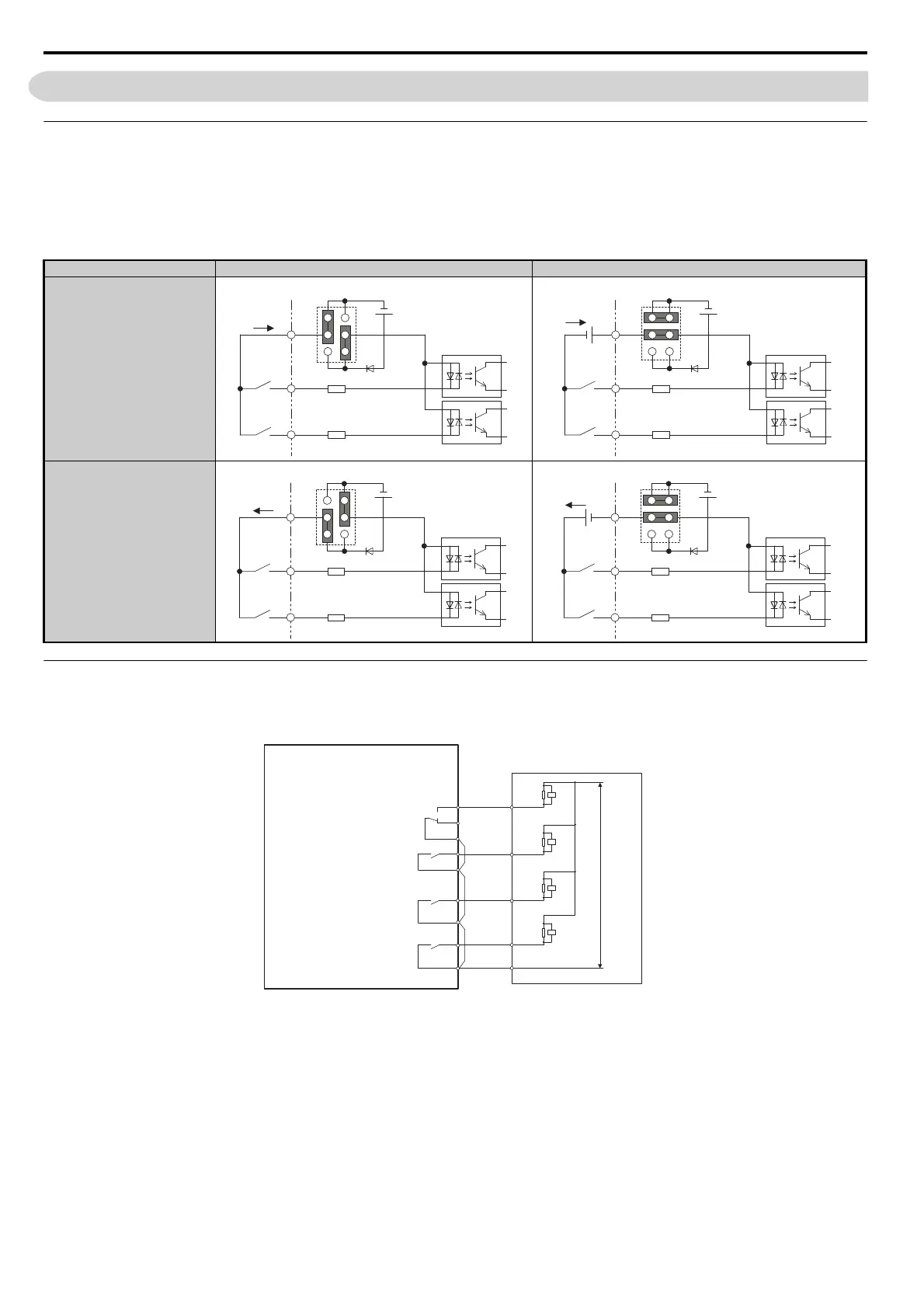

Table 3.11 Hardwire Baseblock Input Sink / Source / External Power Supply Selection
◆ Using the Contact Outputs
The example below illustrates the use of multi-function digital outputs and the fault relay. Refer to Figure 3.1 for
standard connection diagram.
Figure 3.30 Contact Outputs
Drive Internal Power Supply External 24 Vdc Power Supply
Sinking Mode
Sourcing Mode
24 Vdc
H1
H2
HC
Jumper S3
24 Vdc
H1
H2
HC
External
24 Vdc
Jumper S3
24 Vdc
H1
H2
HC
Jumper S3
24 Vdc
H1
H2
HC
External
24 Vdc
Jumper S3
M3
M4
M5
M6
SA
SA
SA
SA
Max
250 Vac
Controller
Fault relay outputs and
Multi-function relay outputs
250 Vac 10 mA to 1A
30 Vac 10 mA to 1A
(Min. load: 5 Vdc, 10 mA)
Fault
During
Run
Zero
Speed
Speed
Agree 1
Drive
MA
M1
M2
MB
MC
Relay
Relay
Relay
Relay
YEC_TMonly
