YASKAWA E1000 User Manual

2.2 Mechanical Installation
Mechanical Installation
2
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 47

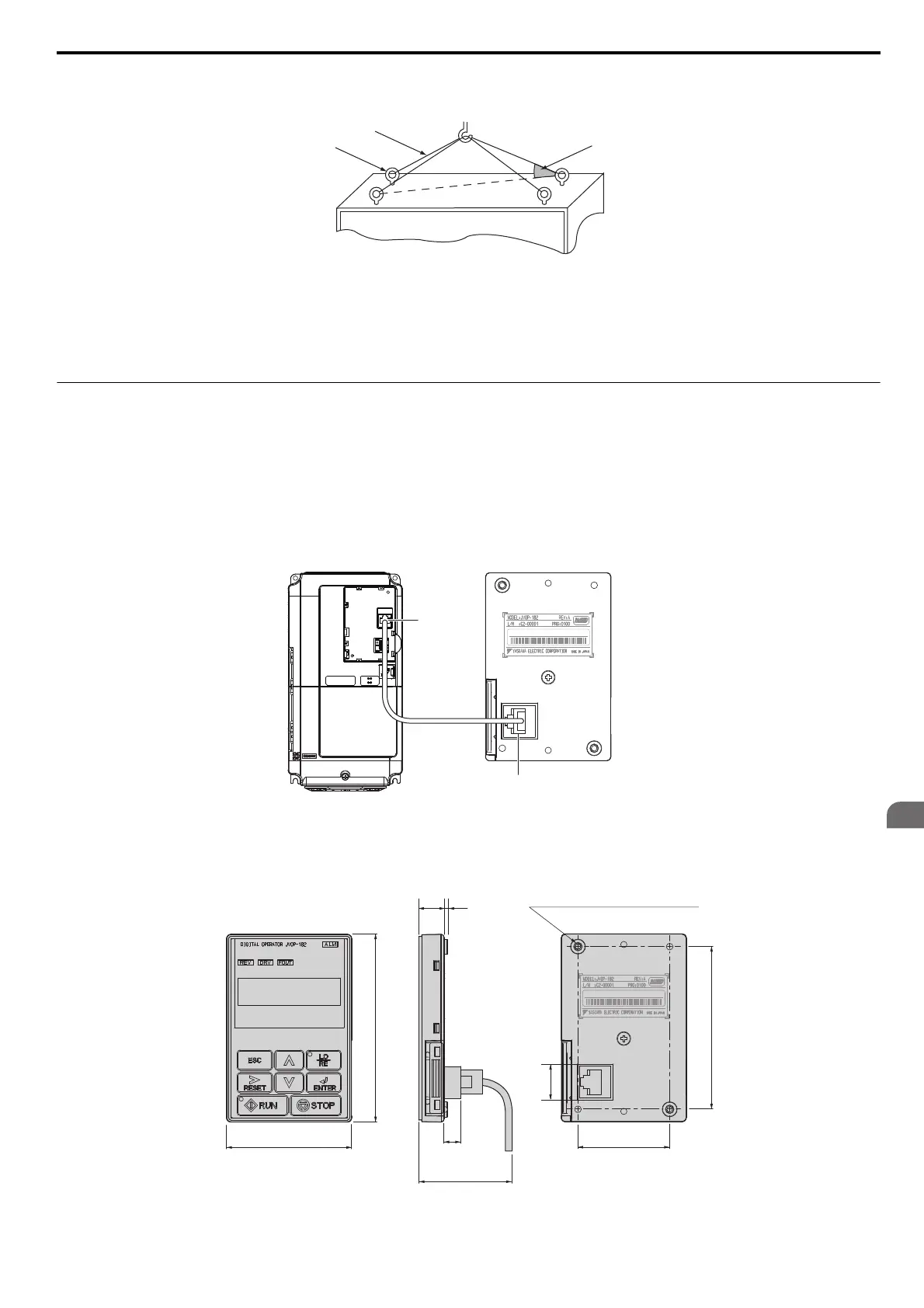

2. Pass wire through the holes of all the four eye bolts (See Figure 2.6).
Figure 2.6
Figure 2.6 State of Suspension with Wires
3. Take up the slack in the wires gradually with a crane, and when the wires are confirmed to have stretched tight,
hoist the drive.
4. When ready to install the drive in the enclosure panel, lower the drive. Halt lowing once when the drive has
reached near the floor, and then lower the drive again very slowly.
◆ Digital Operator Remote Usage
■ Remote Operation
The digital operator mounted on the drive can be removed and connected to the drive using an extension cable up to 3 m
long. This makes it easier to operate the drive when it is installed in a location where it can not be accessed easily.
The digital operator can also be permanently mounted in a remote location like a panel door. An extension cable and an
installation support set (depending on the installation type) will be required.
Note: Refer to Drive Options and Peripheral Devices on page 333 for information on extension cables and installation support sets.
Figure 2.7
Figure 2.7 Communication Cable Connection
■ Digital Operator Remote Installation
Digital Operator Dimensions
Figure 2.8 Digital Operator Dimensions
Eye bolt
Wires
Suspending angle:
50 degree or greate
r
S / N : J007XE273710001
OperatorDrive
Communication Cable Connector
Comm Port
common_
TMonly
S / N : J007XE273710001
90
78
60
7.9
Minimum
50
Unit: mm
12.2
1.6
Inst allation holes (2-M3 screws, depth 5)
44
15
YEC_TMonly
