1.3 Model Number and Nameplate Check
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 29
1.3 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
• If you have received the wrong model or the drive does not function properly, contact your supplier.
◆ Nameplate

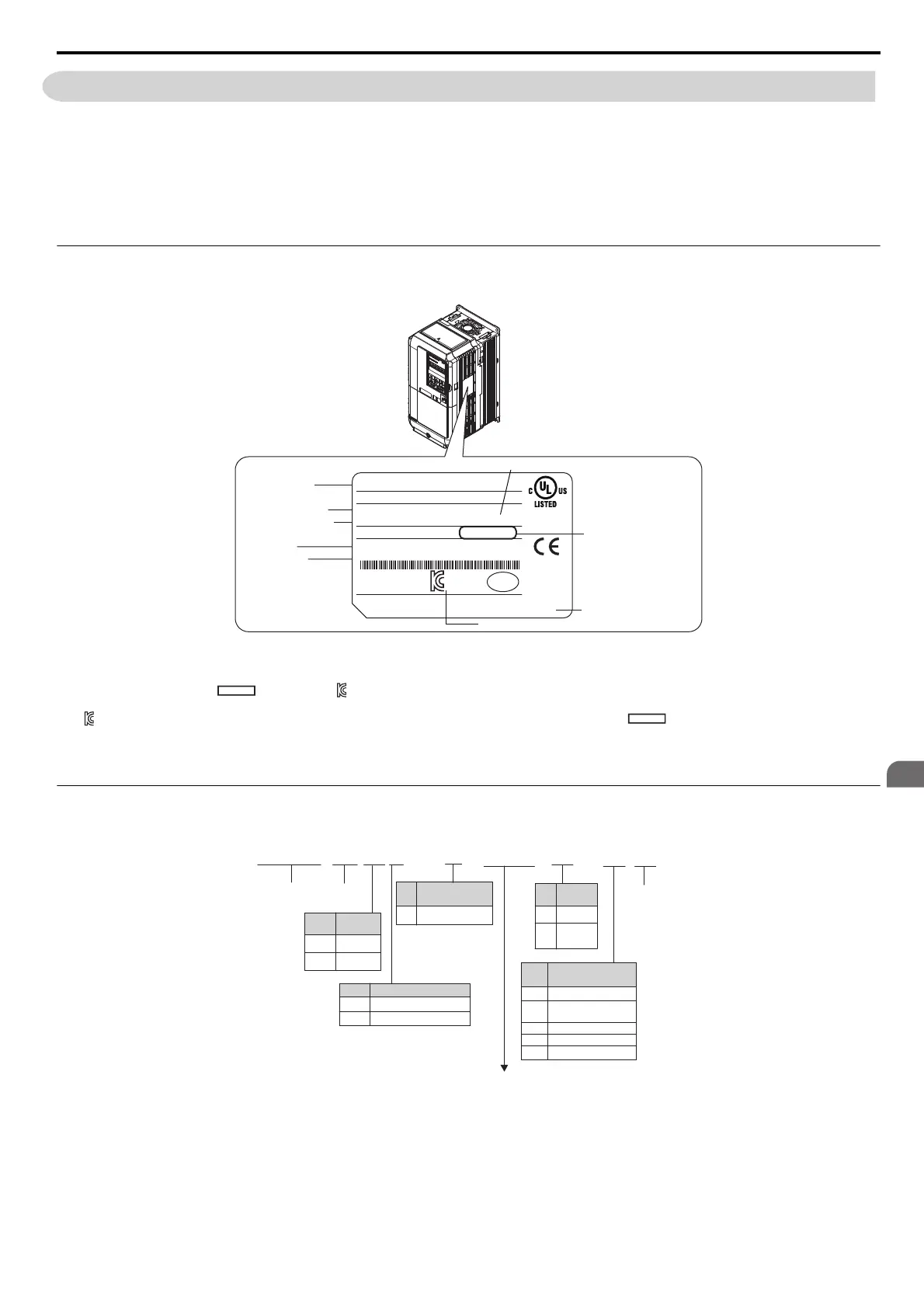

Figure 1.1 Nameplate Information
◆ Model Number
<1> Drive models CIMR-E4A0930 and 4A1200 use software version 380. The availability of certain functions on these models differs from
models CIMR-E2A0004 to 2A0415 and 4A0002 to 4A0675, which use software version 800.
Refer to Parameter Groups on page 359 for details.
<2> Drive model CIMR-ET that bears the mark conforms to Korean Radio Waves Act and is designated for use in Asia (Region code: T).
Refer to Model Number on page 29 for details.
마크가 부착되어 있는 제품은 한국 전파법에 적합한 아시아향 기종 ( 형식 : CIMR-ET ) 입니다 .
<3> The address of the head office of Yaskawa Electric Corporation (responsible for product liability) is shown on the nameplate.
<1> Drives with these specifications do not guarantee complete protection for the environmental conditions indicated.
PRG : 8000
IP20
IND.CONT.EQ.
7J48
CIMR-ET4A0004FAA
YASKAWA ELECTRIC CORPORATION
2-1 Kurosaki-shiroishi, Yahatanishi-Ku, Kitakyushu 806-0004 Japan
MADE IN JAPAN
:
: AC3PH 380-480V 50/60Hz 4.3A
: AC3PH 0-480V 0-200Hz 4.1A
: 3.2 kg
:
:
: E131457
PASS
MODEL
MAX APPLI. MOTOR : 1.5kW REV : A
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
KCC
-
REM
-
Yec
-
CIMR
-
E1000
-
XXX
TYPE 1 ENCLOSURE
AC drive model
Input specifications
Output specifications
Lot number
Serial number
Software version
<1>
<2>
Amps
<3>
CIMR
-
E B 4 A 0002 F A A
Drive
E1000
Series
No.
Enclosure
Type
Design
Revision
Order
No.
Customized
Specifications
A Standard model
No.
Region
Code
IP00
F
IP20/NEMA 1,
UL Type 1
A
B China
TAsia
No. Voltage Class
No.
Environmental
Specification
K Gas-resistant
A
B
N
S
Standard
Humidity- and
dust-resistant
Oil-resistant
Vibration-resistant
3-phase, 380-480 Vac
3-phase, 200-240 Vac
2
4
<1>
YEC_common
Refer toTable 1.3 and Table 1.4.
