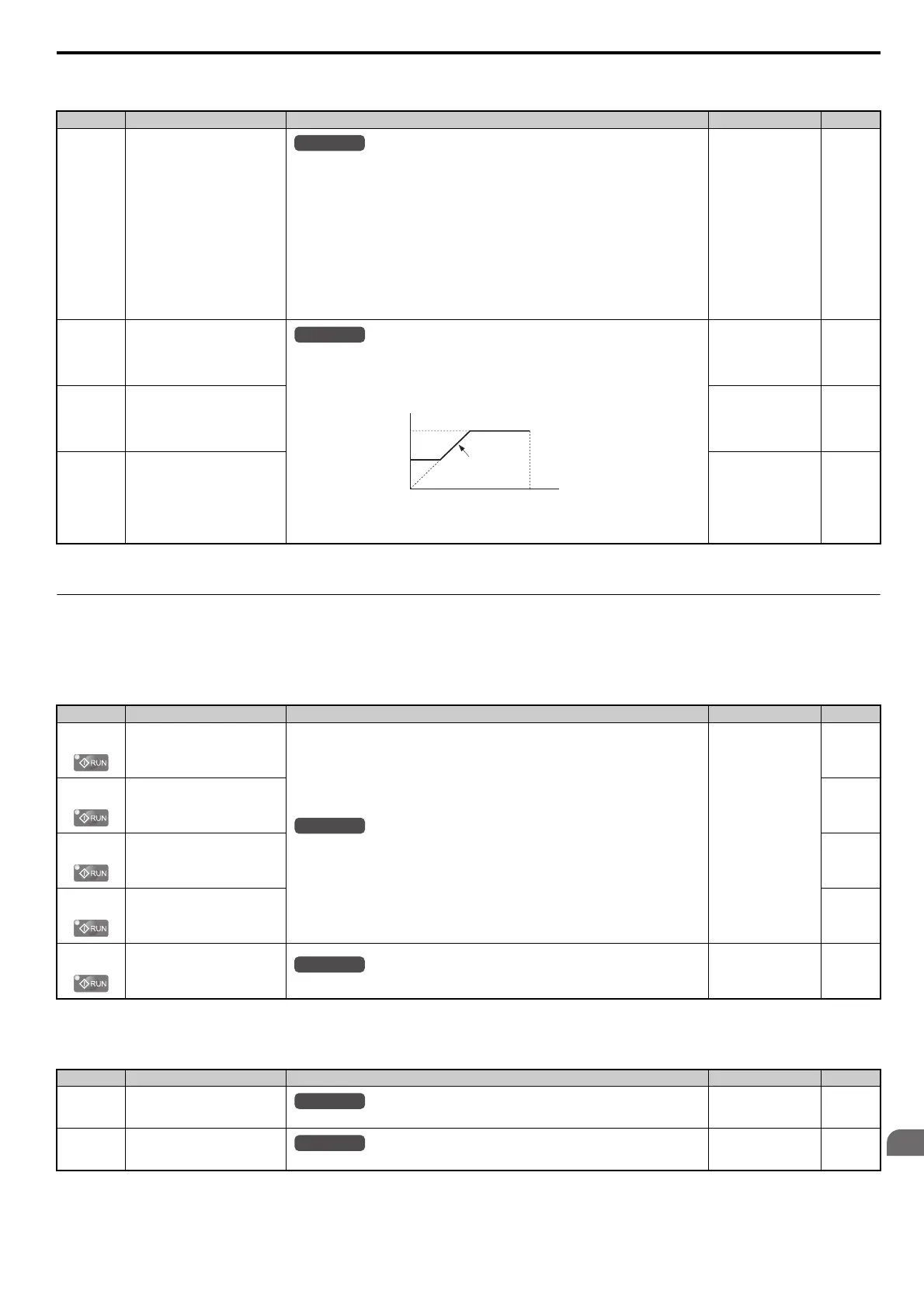

B.3 Parameter Table
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 367
■ C6: Carrier Frequency
◆ d: Reference Settings
Reference parameters are used to set the various frequency reference values during operation.
■
d1: Frequency Reference
■ d2: Frequency Upper/Lower Limits
No.(Addr.) Name Description Setting Page
C6-02
(224H)
<4> Default setting is dependent on the control mode (A1-02), the drive model (o2-04).
<13> Default setting value is dependent on the carrier frequency selection (C6-02).
Carrier Frequency Selection
1: 2.0 kHz
2: 5.0 kHz
3: 8.0 kHz
4: 10.0 kHz
5: 12.5 kHz
6: 15.0 kHz
7: Swing PWM1 (Audible sound 1)
8: Swing PWM2 (Audible sound 2)
9: Swing PWM3 (Audible sound 3)
A: Swing PWM4 (Audible sound 4)
B to E: No setting possible
F: User defined (determined by C6-03 through C6-05)
Note: The available settings are 1, 2, and F for models CIMR-E4A0930 and 4A1200.
Default:
<4>
Min: 1
Max: F
163
C6-03
(225H)
Carrier Frequency Upper Limit
Note: C6-04 and C6-05 are available only in V/f control mode.
Determines the upper and lower limits for the carrier frequency.
In OLV, C6-03 determines the upper limit of the carrier frequency.
Note: The setting range is 1.0 to 5.0 kHz for models CIMR-E4A0930 and 4A1200.
Default:
<13>
Min: 1.0 kHz
Max: 15.0 kHz
163
C6-04
(226H)
Carrier Frequency Lower Limit
Default:
<13>
Min: 1.0 kHz
Max: 15.0 kHz
163
C6-05
(227H)
Carrier Frequency Proportional
Gain
Default:
<13>
Min: 0
Max: 99
163
No.(Addr.) Name Description Setting Page
d1-01
(280H)
<20> Range upper limit is determined by the maximum output frequency (E1-04) and the upper limit of the frequency reference (d2-01).
Frequency Reference 1
Sets the frequency reference for the drive. Setting units are determined by parameter o1-03.
Default: 0.00 Hz
Min: 0.00 Hz
Max: 200.00 Hz
<20>
165
d1-02
(281H)
Frequency Reference 2 165
d1-03
(282H)
Frequency Reference 3 165
d1-04
(283H)
Frequency Reference 4 165
d1-17
(292H)
Jog Frequency Reference
Sets the jog frequency reference. Setting units are determined by parameter o1-03.
Default: 6.00 Hz
Min: 0.00 Hz
Max: 200.00 Hz
<20>
165
No.(Addr.) Name Description Setting Page
d2-01
(289H)
Frequency Reference Upper Limit
Sets the frequency reference upper limit as a percentage of the maximum output frequency.
Default: 100.0%
Min: 0.0%
Max: 110.0%
166
d2-02
(28AH)
Frequency Reference Lower Limit
Sets the frequency reference lower limit as a percentage of the maximum output frequency.
Default: 0.0%
Min: 0.0%
Max: 110.0%
166
All Modes
Carrier Frequency
E1-04
Max Output
Frequency
Output Frequency
× (C6-05) × K
Output
Frequency
C6-03
C6-04
All Modes
All Modes
All Modes
All Modes
