D.3 UL Standards
456 YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual

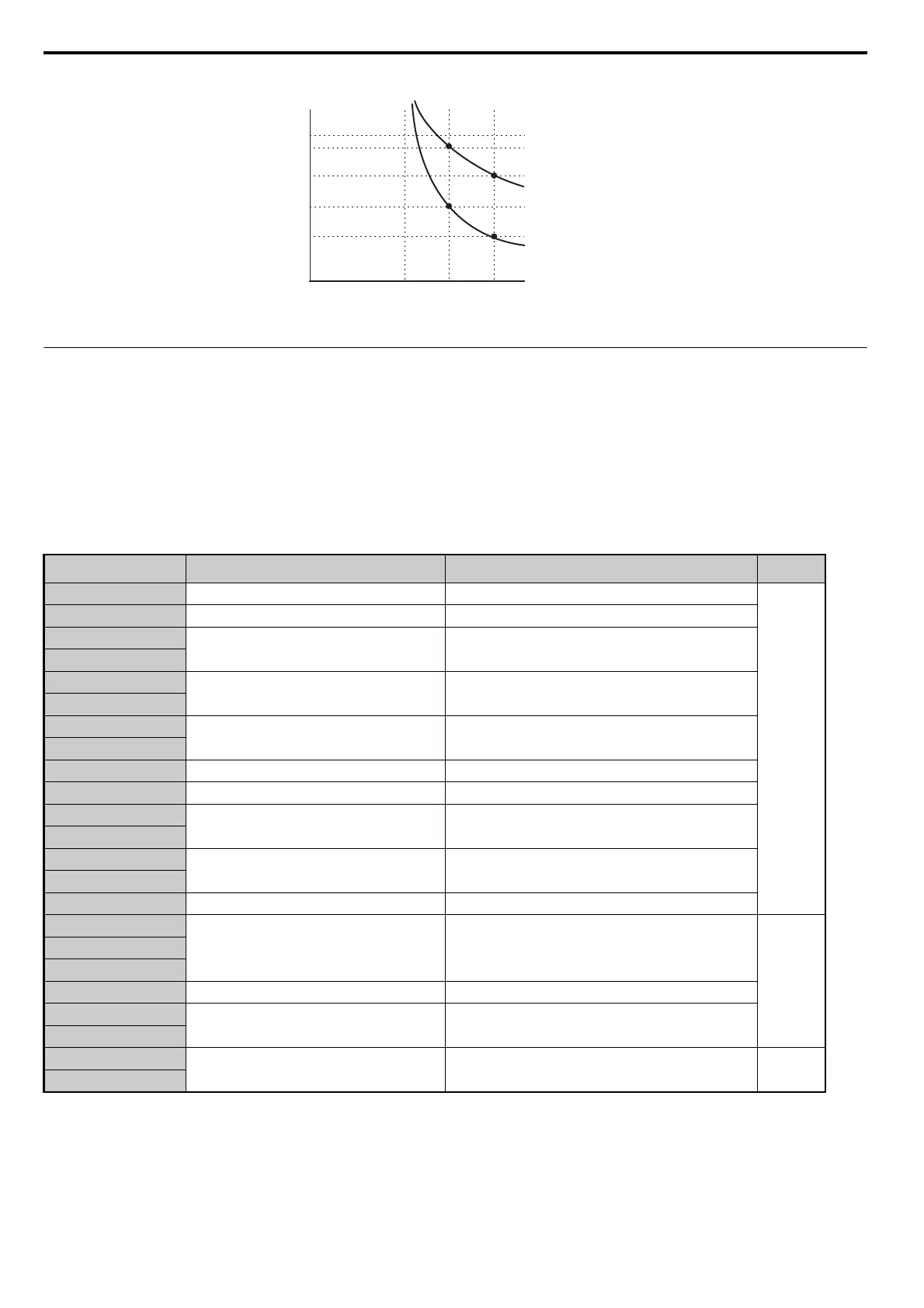

Figure D.7
Figure D.7 Motor Overload Protection Time
◆ Precautionary Notes on External Heatsink (IP00 Enclosure)
When using an external heatsink, UL compliance requires that exposed capacitors in the main circuit are covered to
prevent injury to surrounding personnel.
The portion of the external heatsink that projects out can either be protected with the enclosure, or with the appropriate
capacitor cover after drive installation is complete. Use the table below to match drive models and capacitor cover.
Capacitor covers can be ordered from a Yaskawa representative or directly from the Yaskawa sales department. The table
below lists available capacitor covers.
Table D.10 Capacitor Cover
Note: Model CIMR-E4A1200 is UL compliant when the air entering the drive-installed panel or cabinet is 45° or less. For more
information, contact your nearest Yaskawa representative or our sales office.
Drive Model
CIMR-E
Code Number Model Figure
2A0110
<1> Requires two sets.
100-061-273 ECAT31875-11
Figure D.8
2A0138 100-061-274 ECAT31876-11
2A0169
100-061-275 ECAT31877-11
2A0211
2A0250
100-061-277 ECAT31726-11
2A0312
2A0360
100-061-278 ECAT31698-11
2A0415
4A0058 100-061-273 ECAT31875-11
4A0072 100-061-274 ECAT31876-11
4A0088
100-061-276 ECAT31878-11
4A0103
4A0139
100-061-275 ECAT31877-11
4A0165
4A0208 100-061-277 ECAT31726-11
4A0250
100-061-278 ECAT31698-11
Figure D.8
4A0296
4A0362
4A0414 100-061-279 ECAT31740-11
4A0515
100-061-280 ECAT31746-11
4A0675
4A0930
100-061-281
<1> ECAT31741-11 Figure D.9
4A1200
10
7
3
1
0.4
0.1
0 100 200150
Cold Start
Hot Start
Motor Current (%)
(E2-01=100 %)
Time (min)
