1.5 Component Names
1.5 Component Names
This section gives and overview of the drive components described in this manual.
Note: 1. See Using the Digital Operator on page 97 for a description of the operator keypad.
2. The drive may have no cooling fans or only one cooling fan depending on the model.
◆ IP20/NEMA 1, UL Type 1 Enclosure
■ Three-Phase AC200 V CIMR-E2A0004F to 0081F
Three-Phase AC400 V CIMR-E4A0002F to 0044F
Figure 1.1

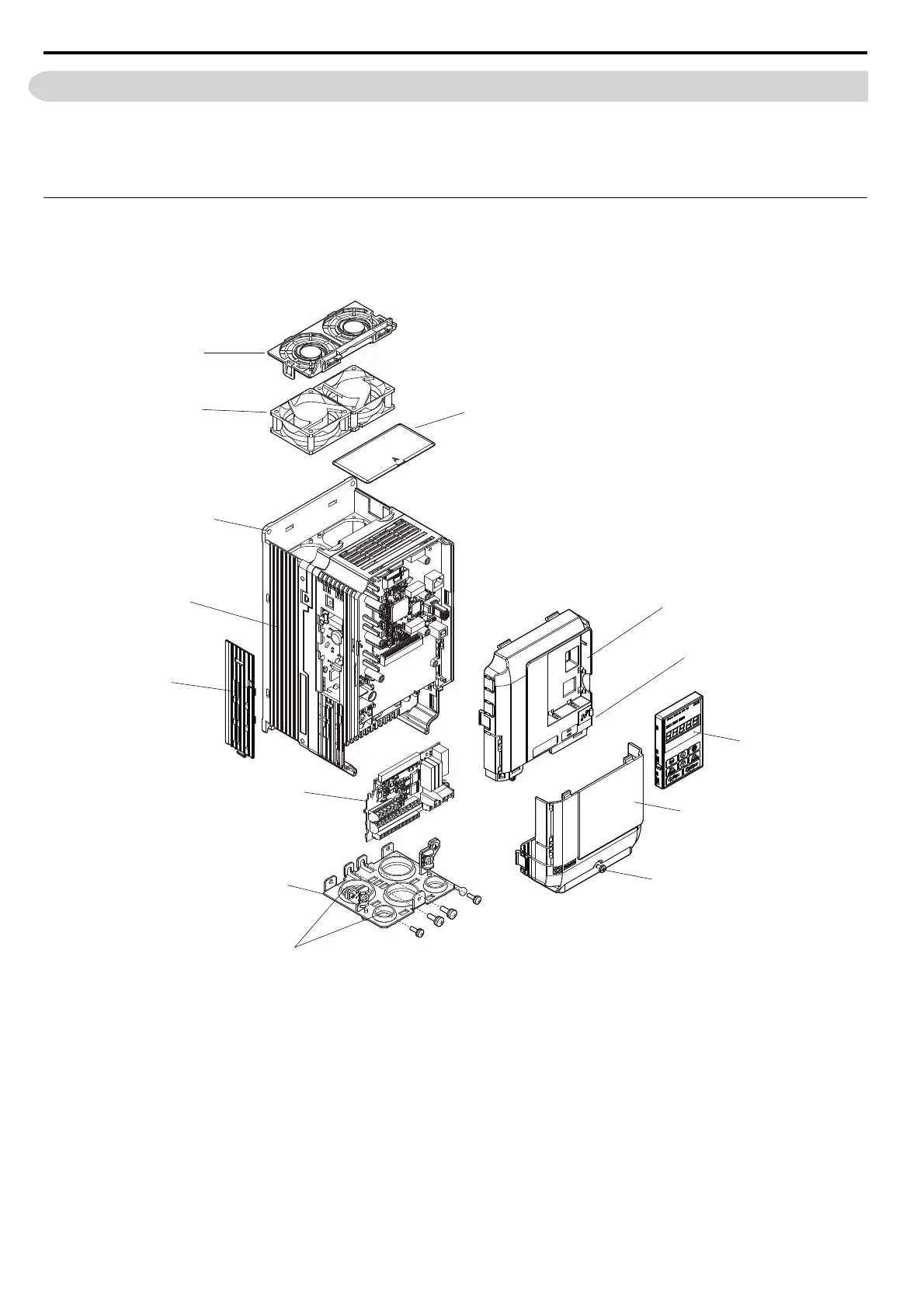

Figure 1.2 Exploded View of IP20/NEMA 1, UL Type 1 Enclosure Components (CIMR-E2A0030F)
A – Fan cover <1>
<1> The following drive models have a single cooling fan: CIMR-E2A0018F and 0021F,
CIMR-E4A0007F through 0011F.
Drives CIMR-E2A0004F through 0012F and CIMR-E4A0002F through 0005F do
not have a cooling fan or a cooling fan cover.
H – Rubber bushing
B – Cooling fan
<1> I – Top protective cover
C – Mounting hole J – Front cover
D – Heatsink K – USB port (type-B)
E – Optional 24 V DC power
supply connector cover
L – Digital Operator
F – Terminal board M – Terminal cover
G – Bottom cover N – Terminal cover screw
N
A
B
C
I
D
E
F
J
L
M
K
G
H
