3.10 Control I/O Connections
88 YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual
◆ Terminal A3 Analog/PTC Input Selection
Terminal A3 can be configured either as multi-function analog input or as PTC input for motor thermal overload
protection. Use switch S4 to select the input function as described in Table 3.14. Refer to Switches and Jumpers on the
Terminal Board on page 85 for locating switch S4.

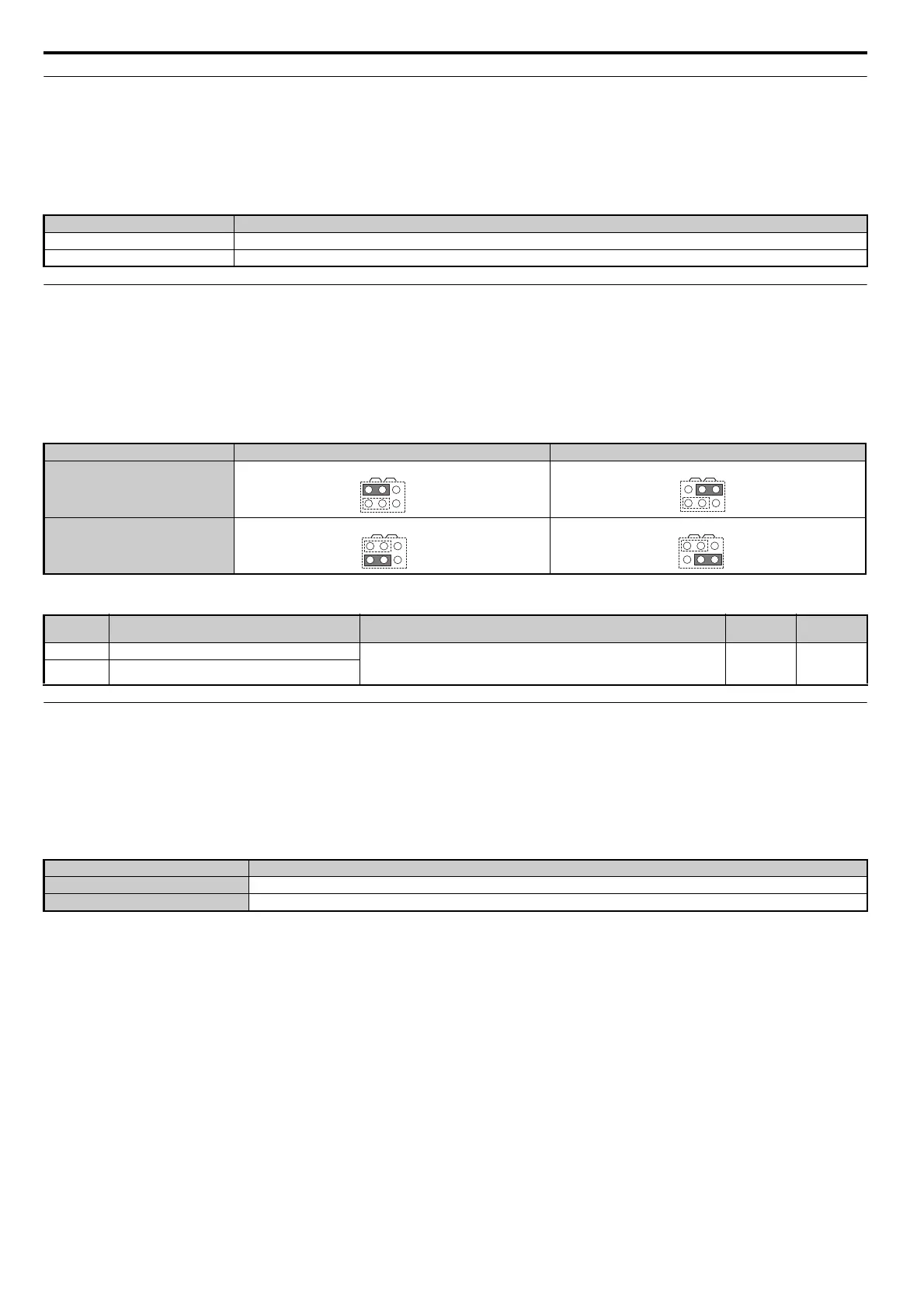

Table 3.14 DIP Switch S4 Settings
◆ Terminal AM/FM Signal Selection
The signal type for terminals AM and FM can be set to either voltage or current output using jumper S5 on the terminal
board as explained in Table 3.15. When changing the setting of jumper S5, parameters H4-07 and H4-08 must be set
accordingly. The default selection is voltage output for both terminals. Refer to Switches and Jumpers on the Terminal
Board on page 85 for locating jumper S5.
Table 3.15 Jumper S5 Settings
Table 3.16 Parameter H4-07, H4-08 Details
◆ MEMOBUS/Modbus Termination
This drive is equipped with a built in termination resistor for the RS-422/RS-485 communication port. DIP switch S2
enables or disabled the termination resistor as shown in Table 3.17. The OFF position is the default. The termination
resistor should be placed to the ON position when the drive is the last in a series of slave drives. Refer to Switches and
Jumpers on the Terminal Board on page 85 for locating switch S2.
Table 3.17 MEMOBUS/Modbus Switch Settings
Note: Refer to MEMOBUS/Modbus Communications on page 411 for details on MEMOBUS/Modbus.
Setting Description
AI (lower position) (default) Analog input for the function selected in parameter H3-06
PTC (upper position) PTC input. Parameter H3-06 must be set to E (PTC input)
Voltage Output Current Output
Terminal AM
Terminal FM
No. Parameter Name Description
Setting
Range
Default
Setting
H4-07 Terminal AM signal level selection 0: 0 to 10 Vdc
1: -10 to 10 Vdc
2: 4 to 20 mA
0 to 2 0
H4-08 Terminal FM signal level selection
S2 Position Description
ON Internal termination resistor ON
OFF Internal termination resistor OFF (default setting)
AM
FM
V
I
AM
FM
V
I
AM
FM
V
I
AM
FM
V
I
