D.2 European Standards
Standards Compliance
D
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 443
Three-Phase 200 V / 400 V Class
Figure D.4

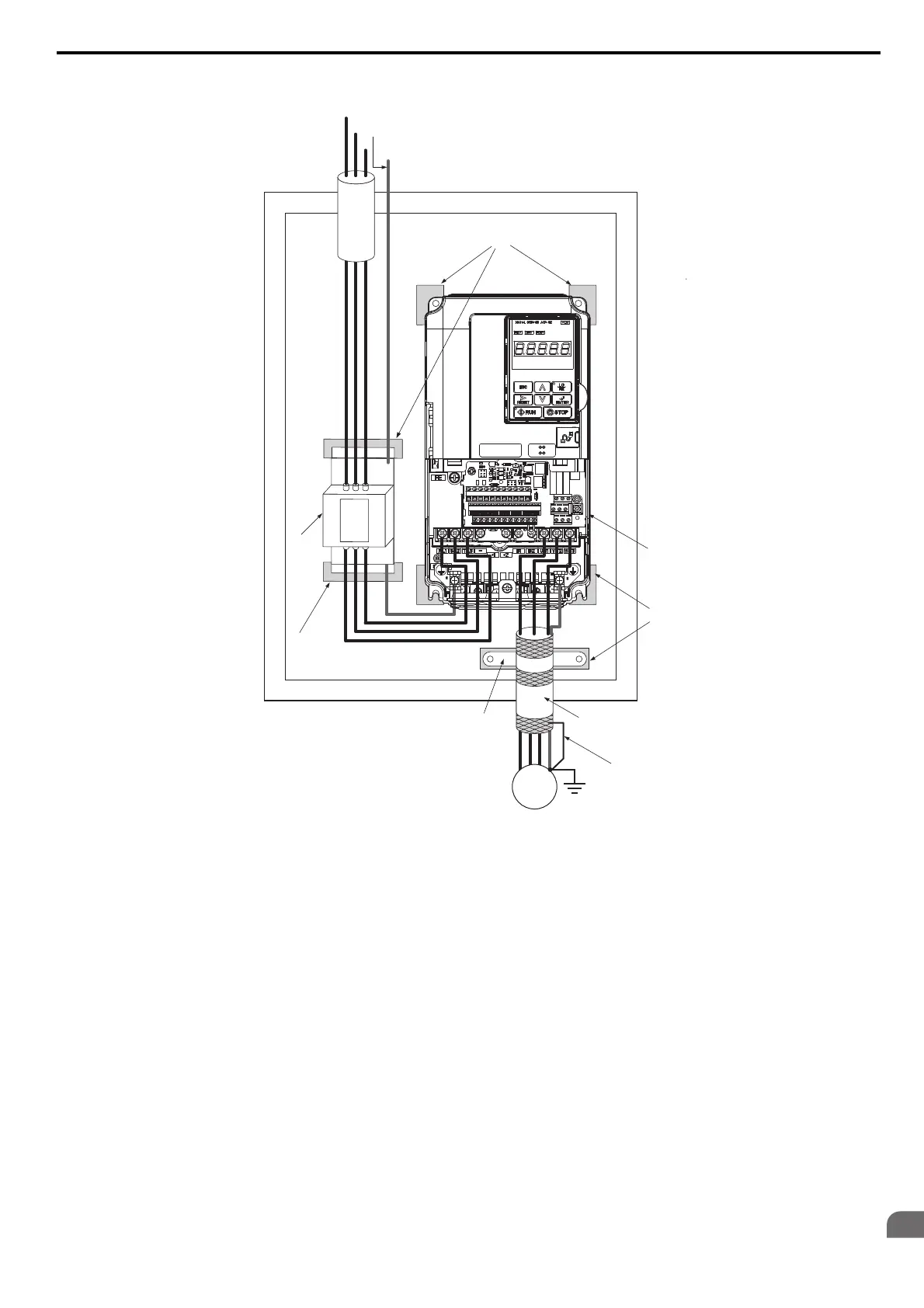

Figure D.4 EMC Filter and Drive Installation for CE Compliance (Three-Phase 200 V / 400 V Class)
A – Ground the cable shield G – Motor
B – Enclosure panel H – Cable clamp
C – Metal plate I – Ground plate (scrape off any visible paint)
D – Grounding surface (remove any paint or sealant) J – EMC noise filter
E – Drive K – Make sure the ground wire is grounded
F – Motor cable (braided shield cable, max. 10 m)
L3
L2
L1
L3
L3
L2
L2
L1
L1
L3 L2 L1
E
PE
K
B
C
D
E
D
F
H
I
J
G
A
