3.6 Digital Operator and Front Cover
YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual 69
2A0110 to 2A0415 and 4A0058 to 4A1200

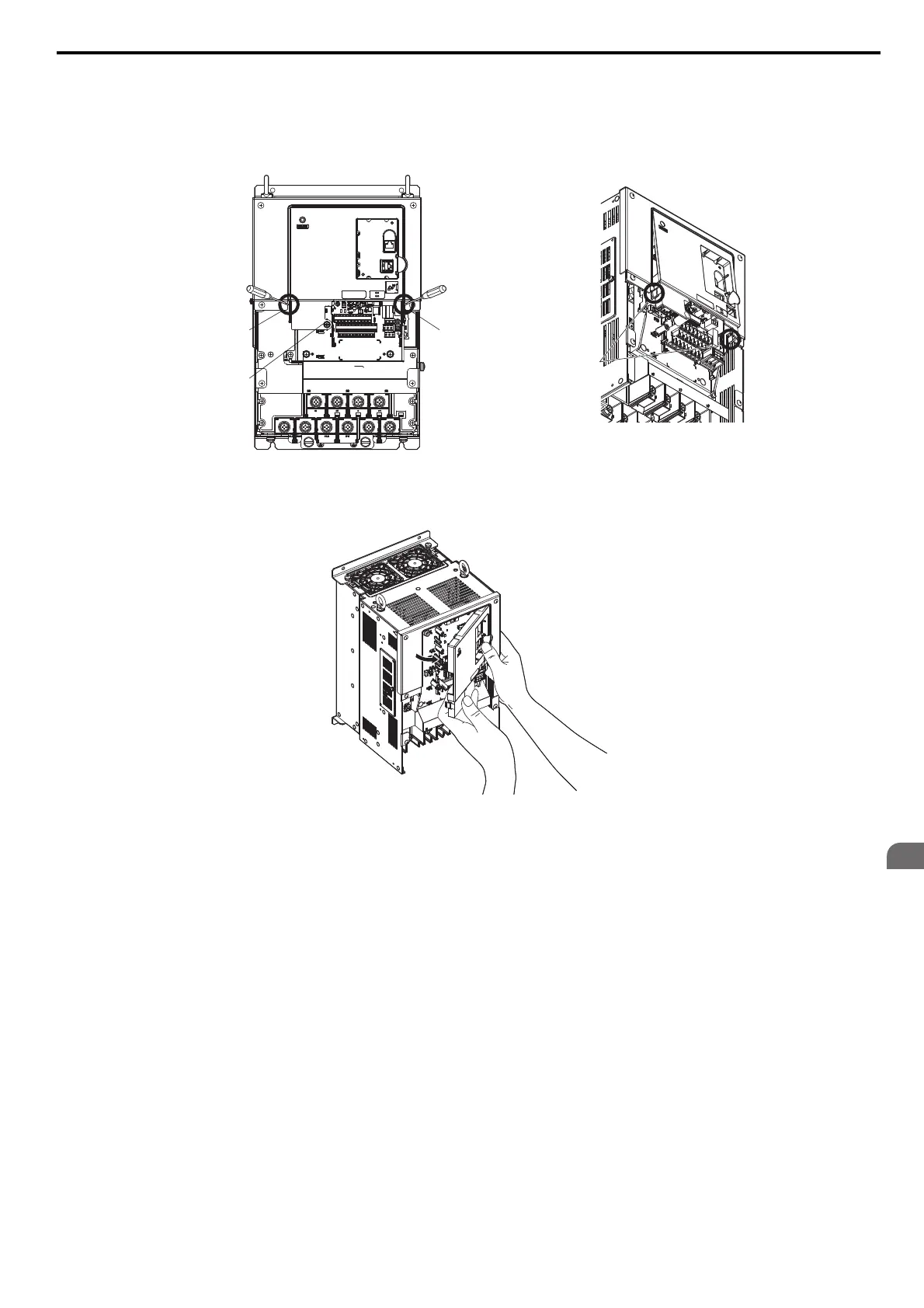

1. Remove the terminal cover and the digital operator.
2. Loosen the installation screw on the front cover.
3. Use a straight-edge screwdriver to loosen the hooks on each side of the cover that hold it in place.
Figure 3.21
Figure 3.14 Remove the Front Cover (2A0110 to 2A0415 and 4A0058 to 4A1200)
4. First unhook the left side of the front cover, then swing the left side towards you as shown in the figure below
until the cover comes off.
Figure 3.22
Figure 3.15 Remove the Front Cover (2A0110 to 2A0415 and 4A0058 to 4A1200)
HookHook
Front cover
installation screw
Free hooks on both
sides of the cover
SIEP_C710616_35.book 69 ページ ２０１５年１１月３０日 月曜日 午後２時２分
