12.4
Troubleshooting System Errors
12-11
[ b ] Displaying a Register List with the Quick Reference
Register lists can also be accessed with the Quick Reference.

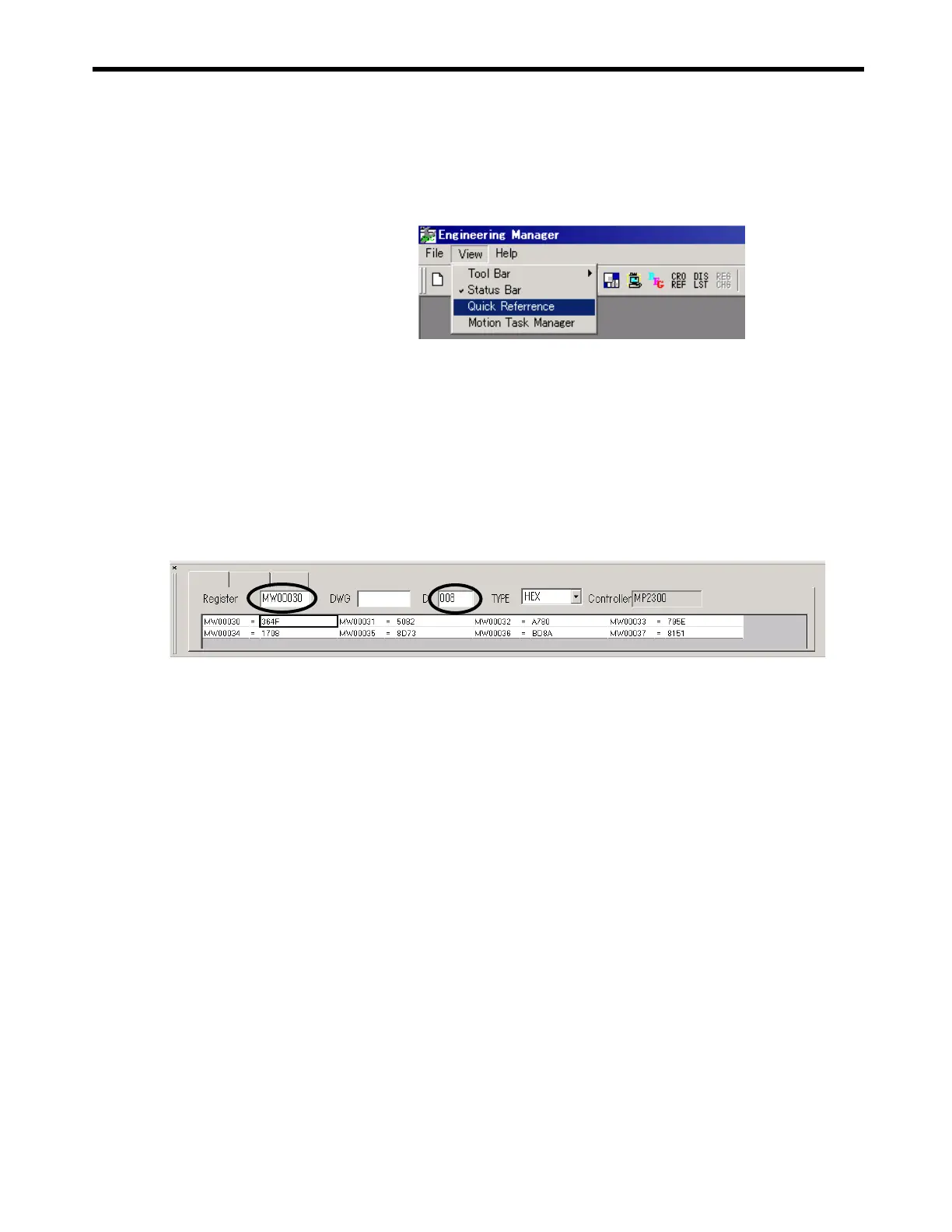

1.
Select View
−
Quick Reference from the MPE720 Engineering Manager Window.
The Quick Reference will be displayed at the bottom of the Engineering Manager Window.
Refer to 2.1.6 ( 4 ) Set and Save Motion Fixed Parameters on page 2-28 for details on how to
display the Engineering Manager Window.
2.
Click the Register List Tab to switch to the register list.
3.
Input the register number of the first system register to be accessed for Register, input
the register number of the last system register to be accessed for /D, and click any-
where in the list. The contents of the specified range of register numbers will be dis-
played.
