YASKAWA JEPMC-MP2300-Y Series User Manual

2
System Startup and Sample Programs
2.1.5
Starting and Preparing MPE720
2-14
16.

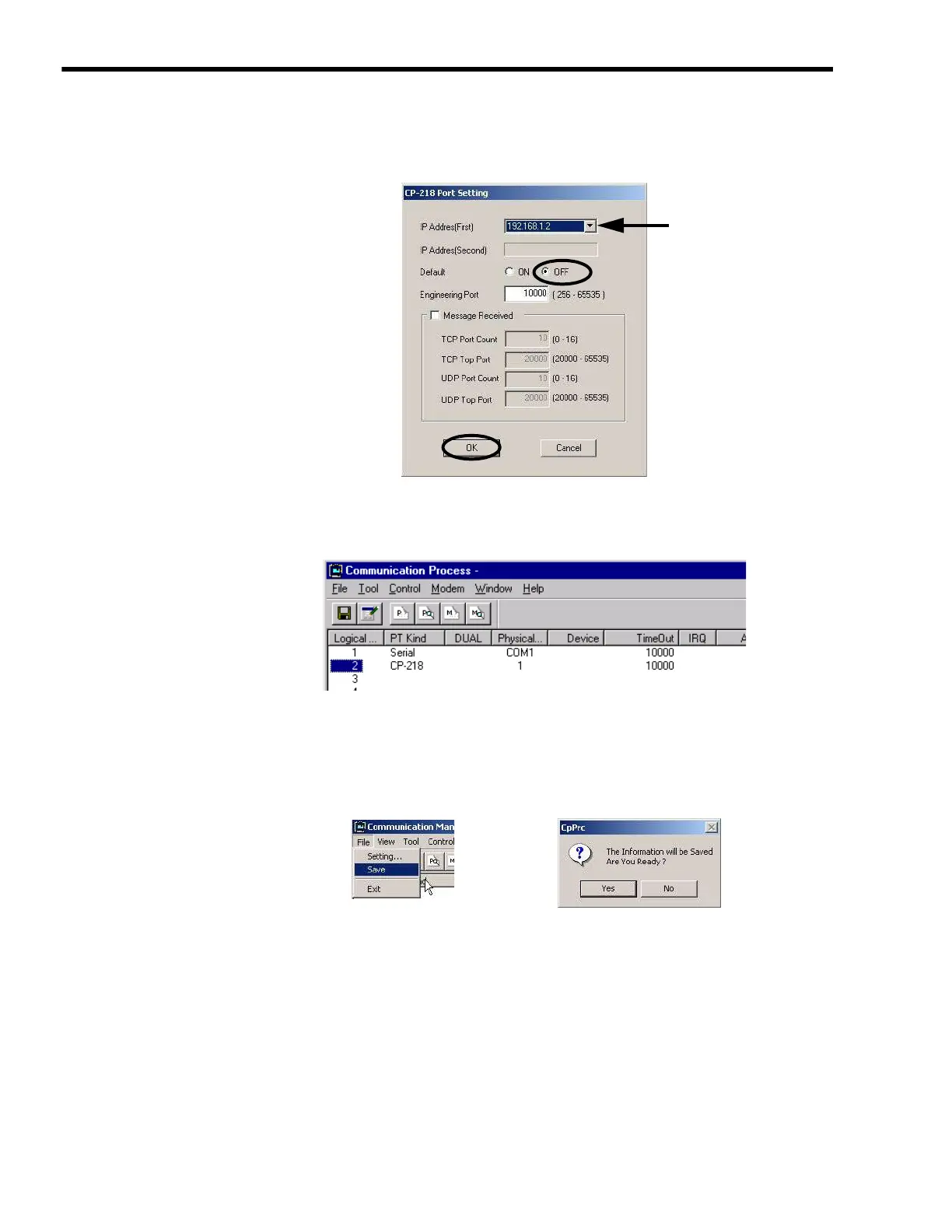

Enter the IP address of computer and click OFF for Default. Leave the other items on
their default settings. Click the OK Button to close the dialog box.
17.
Click the OK Button in the Logical Port Setting Dialog Box to return to the Communi-
cation Process Window. Check to see if the CP-218 (Ethernet connection ) is
assigned to the Logical Port No. 2.
z
Saving the Communication Port Settings and Restarting Communication
Process
Window
18.
Click File - Save. A save confirmation window will be displayed. Click the Yes Button
to save the communication port settings.
These settings will be used as the communication port information whenever the communica-
tion process is started.
19.
Exit the Communication Process Window and restart to validate the settings.
Select File - Exit to close the Communication Process Window. The confirmation
message will be displayed. Click the Yes Button to close the Communication Pro-
