The third Bld/Pos name entered is “BLANK”, utilizing an adjustment unit of “GMS”
weight. The influence co-efficient for this point is “200.00” grams adjustment per “1.0”
IPS vibration. The Move line for this position is “2:30”.
The last Bld/Pos name entered is “B AFT”, utilizing an adjustment unit of “PTS”. The
influence co-efficient for this point is “2.00” points adjustment per “1.0” IPS vibration.
The Move line for this position is “5:30”.
When completed, press [OK] to save and exit this setup.
7.2. – Main Rotor Balance Process
The following paragraphs present the main rotor track and balance process and its associated
screens and are intended to familiarize the user with the data acquisition and correction
capabilities of the Gen II Analyzer.

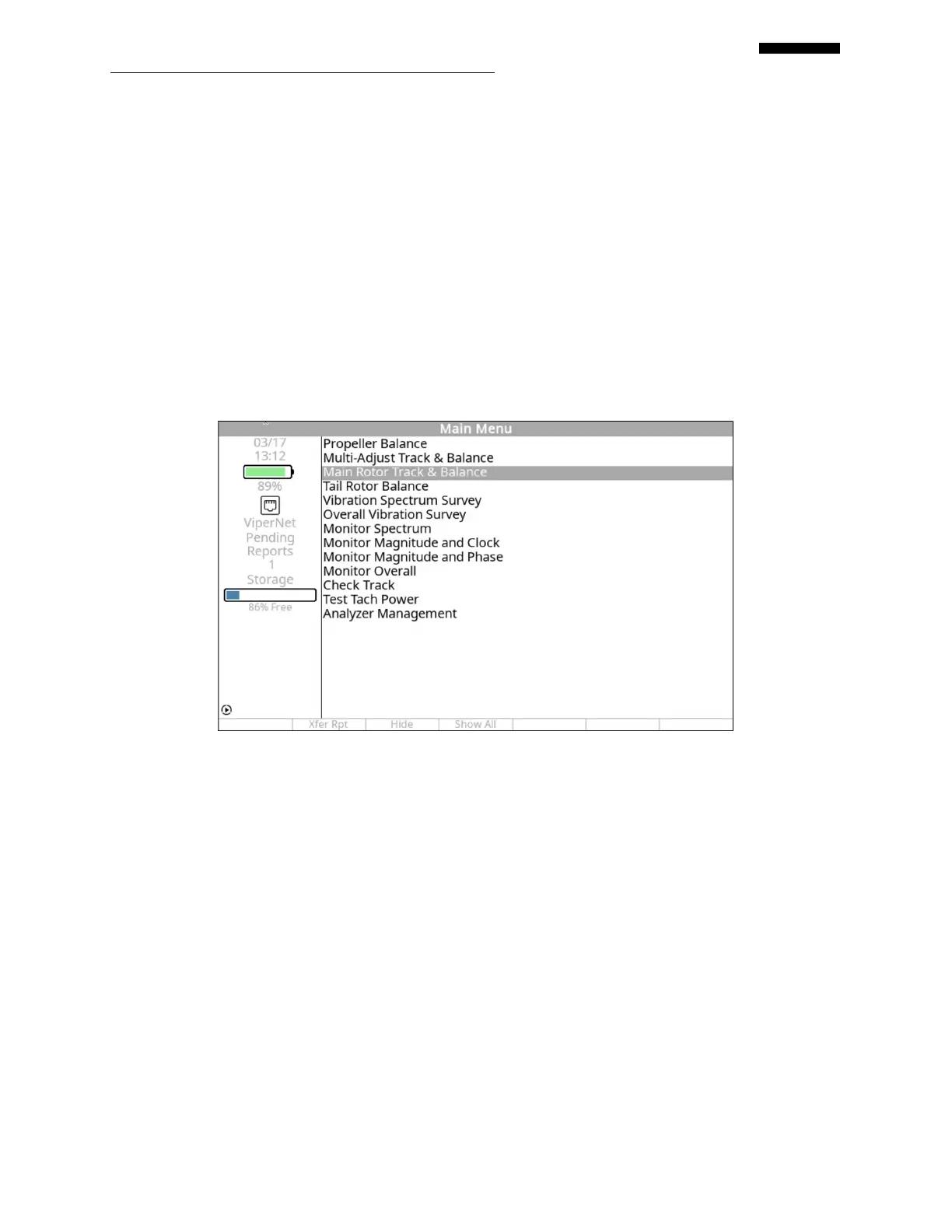

Prior to starting a new main rotor track and balance job, you must first select the “Main Rotor
Track & Balance” option from the main menu. Do this by highlighting the “Main Rotor Track &
Balance” option from the “Main Menu” screen using the [] key and pressing [OK].
