ACES SYSTEMS Cobra II User Manual

Gen II User Manual
14-17 – Vibration Spectrum Survey Chapter 14 Revision 4.10, Apr 2020
NOTE
When the spectra are displayed on screen, you may press the [] key to produce a NORMAL
CURSOR immediately at the highest displayed amplitude frequency. The [] or [] keys may also
be used immediately to EXPAND or SHRINK the Y scale.
14.1.8. – Collecting Data

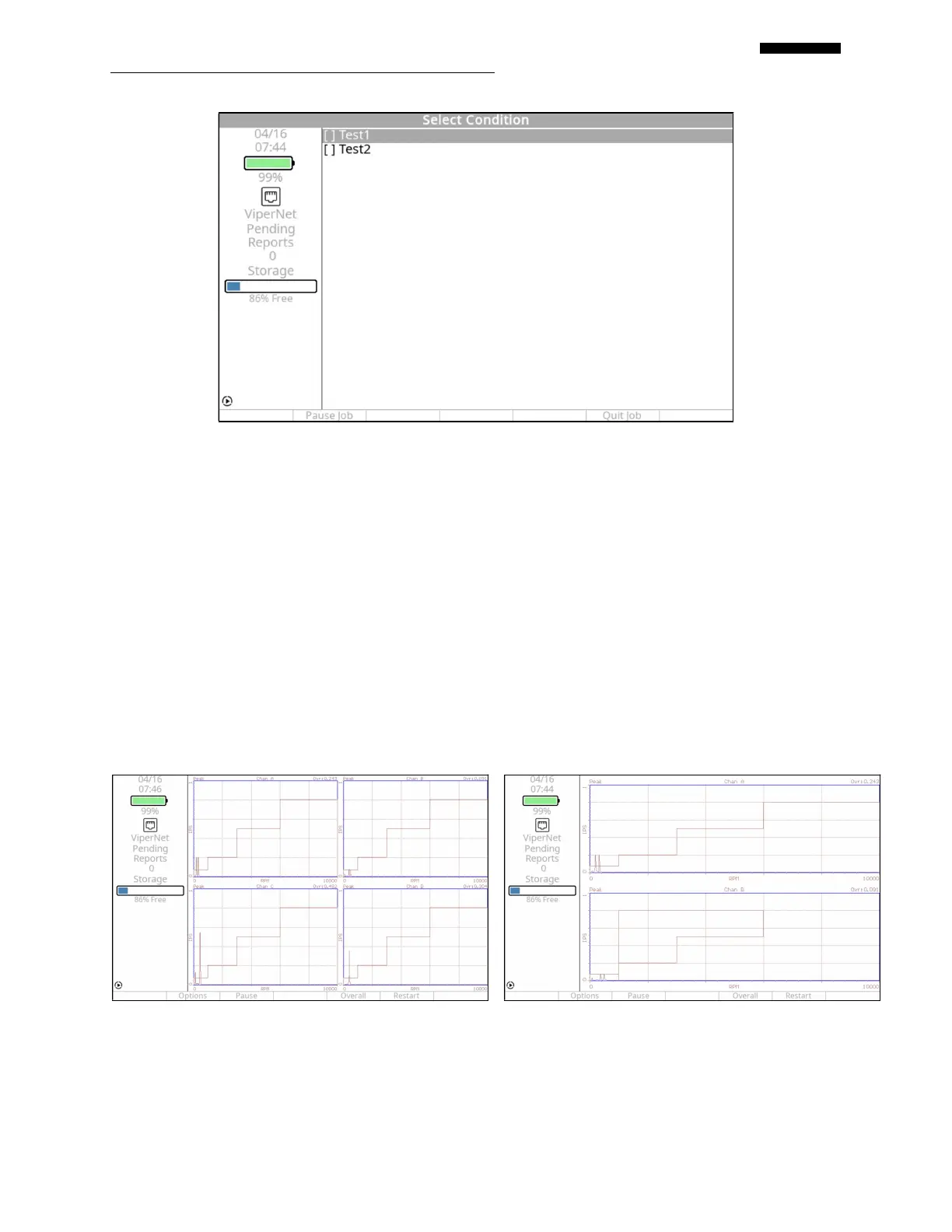

After a brief “Please wait… Preparing to acquire data” message, the spectra will be displayed. If
multiple sensors were configured, the display will be divided as shown below; in half for two
sensors (top and bottom) in both the Cobra II and Viper II or into quadrants for three or four
sensors in the Viper II. The analyzer will begin data acquisition as soon as the screen is
displayed. For a description of the fields and function keys, see paragraphs 14.1.8.1and 14.1.8.2
below.
1
–
4 sensors in
Viper II
only
1
–
2 sen
sors in
Viper II and
Cobra II
14.1.8.1. – Fields displayed when viewing Spectra
