7-33 – Main Rotor Track & Balance Chapter 7 Revision 3.00, Apr 2020
7.3.3. – View Main Rotor Chart

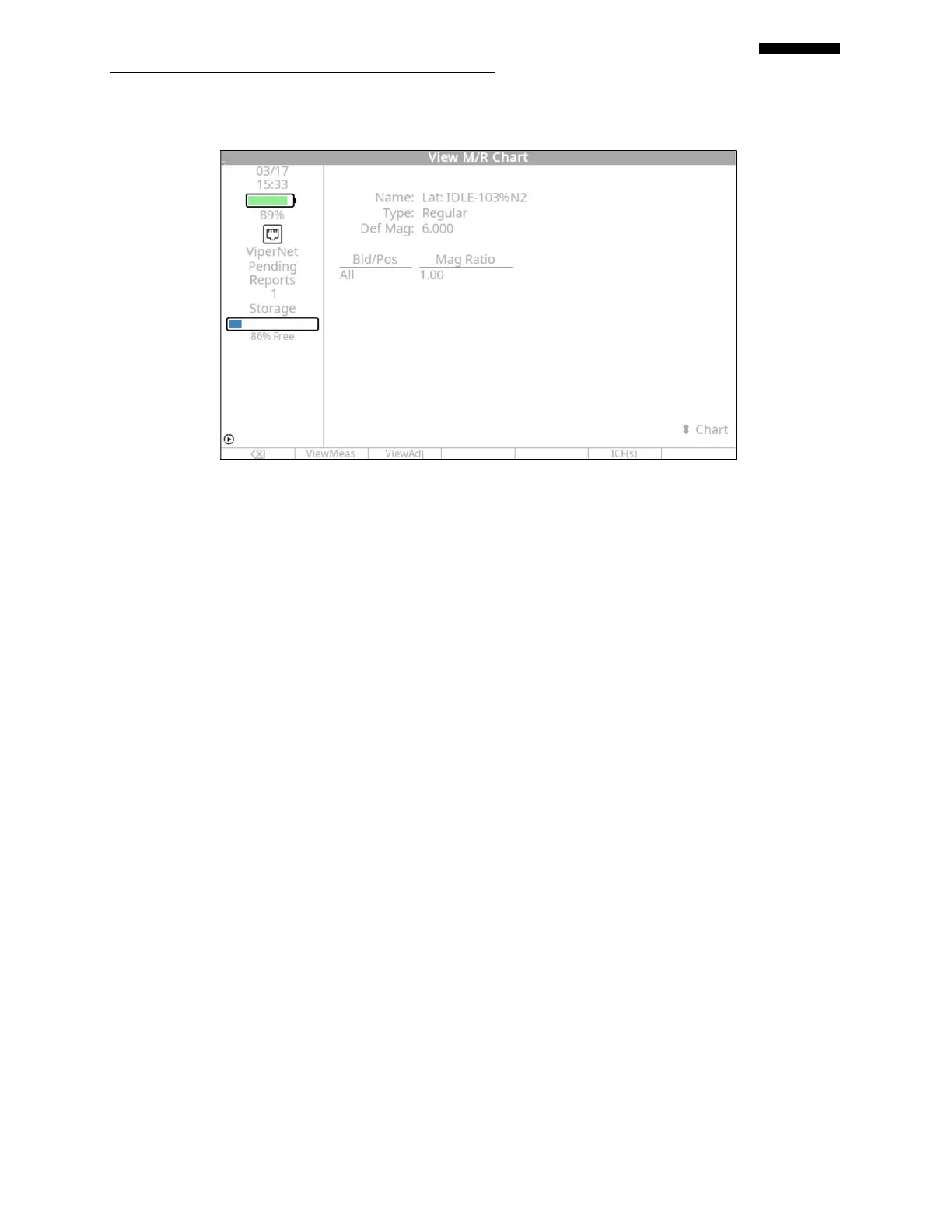

The “View M/R Chart” screen gives the chart name, chart type, default magnitude of adjustment,
name and adjustment ratio of each blade position.
 Pressing the [] or [] keys will toggle between multiple chart types if more than one is
defined for the setup.
 Press the [F1] key to “ViewMeas” and return to paragraph 7.3.1.
 Press the [F2] key to “ViewAdj” and return to paragraph 7.3.2.
 Press the [F5] key to view the “ICF” changes recorded during the job as shown in
paragraph 7.3.4.
When completed reviewing, press [OK] to return to the manage data menu.
