Gen II User Manual
8-22 – Tail Rotor Balance Chapter 8 Revision 3.00, April 2020
Once the solution has been applied, press [OK] to return to the “Start Aircraft” screen for the
next run.
Repeat the data acquisition and solution application process to verify the adjustments have
brought vibration readings below limits.

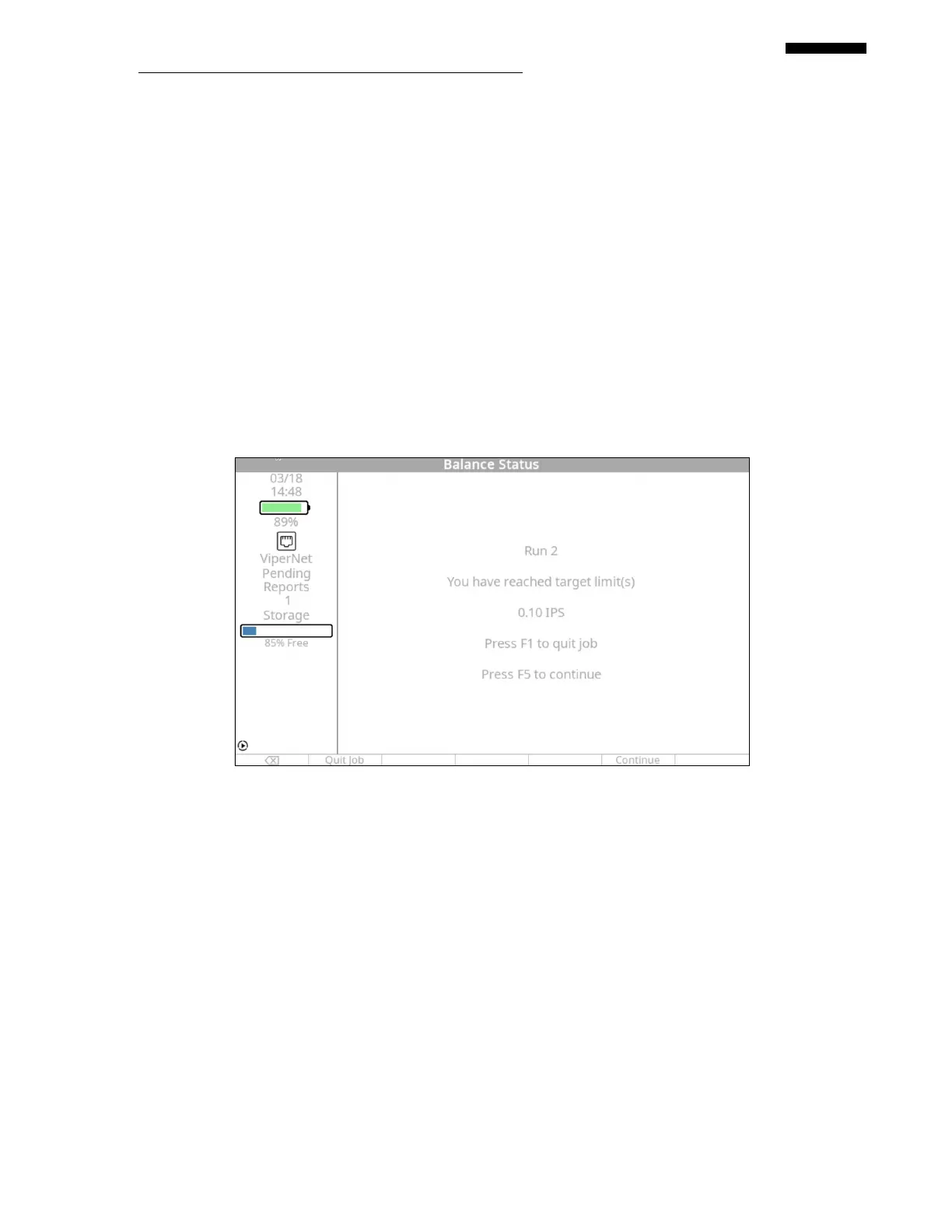

Once you have decreased vibration levels to below the Limit / Target entered in the setup,
you will be presented with the Balance Status screen shown below.
Press [F1] “Quit Job” to mark the job as complete, without the option for resuming the job at
a later time. Pressing [F1] will return you to the Main Menu.
Choosing [F5] “Continue” will allow you to continue the job in order to attempt to reduce the
vibration further below the Limit / Target entered in the setup. .
8.4. – Tail Rotor Manage Data Functions
The tail rotor “Review Job” function also now presents chart information, correction history,
and influence co-efficient for each job. The following paragraphs will describe the new
screens and the navigation steps to review this information.
