Chapter 11
Fan Blade Mapper
(Viper II only)
(Revision 3.00, Apr 2020)
The Fan Blade Mapper is an accessory program that is only available in the Viper II analyzer. It
allows you to remove as little as a single blade from a fan disk then enter the weight moment
information for the new blade and all other blades currently installed on the disk. The program
will shuffle the entire set and display a new placement location for each blade in the set to attain
the best possible balance through weight distribution. This negates the necessity for changing
matched pairs of blades when one of the blades is not damaged and still serviceable. The
program is not limited by the number of new blades that can be combined with the remaining
serviceable blades in a set.

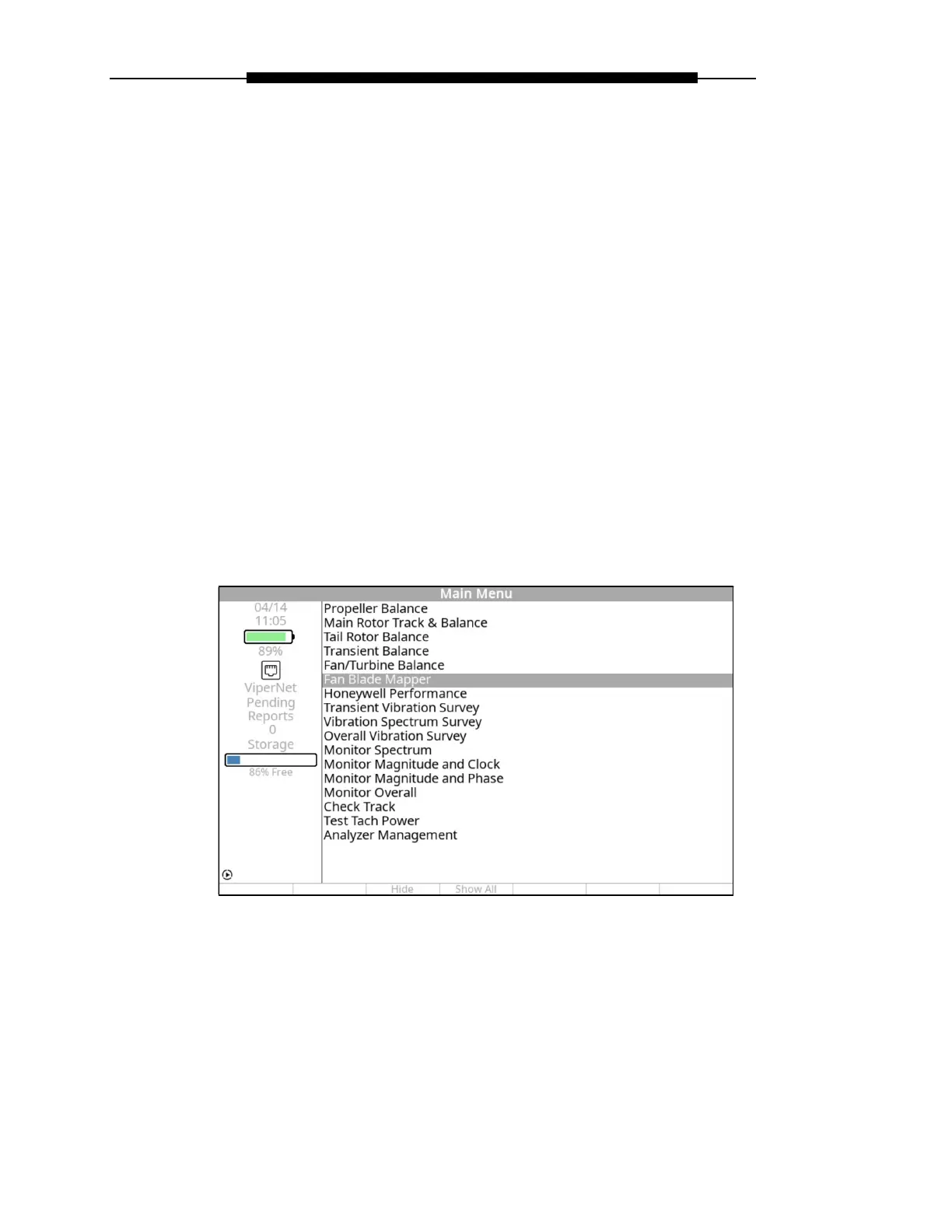

11.1. – Fan Blade Mapper
11.1.1. – Start Job
11.1.1.1. From the Fan Blade Mapper Jobs, use the [] or [] keys as necessary to select
“Start Job” and press [OK].
