7.1.3. – Main Rotor Condition Setup Screen
English Metric

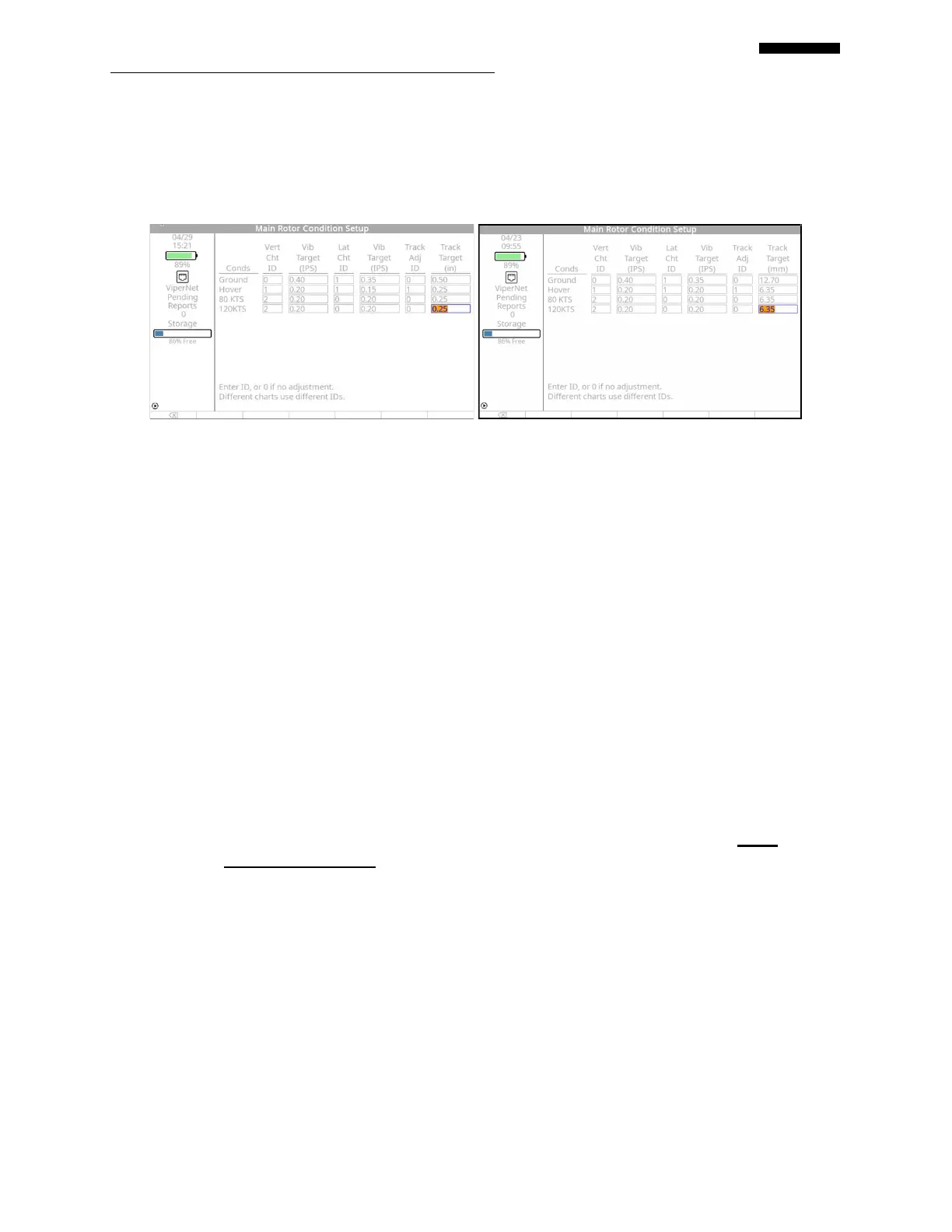

The “Main Rotor Condition. Setup” screen appears. The purpose of this screen is to allow the
user to enter an “ID” number for each polar chart or tracking influence to be used by the analyzer
when determining if a solution is required.
To the left of the screen is a column of fields containing the conditions as entered in the
Main Rotor Setup screen. The names are automatically entered and are non-editable.
To the right of each condition name is a chart “ID” field for each measurement type.
o If a “0” is entered in an “ID” field, the measurement obtained will be for reference
only and will not be used as a basis for correction.
o If a number is entered in an “ID” field, the setup will require an electronic chart
be defined and will result in corrections being given for that measurement vs.
condition.
o If the same “ID” number is given to more than one condition for the same
measurement type, the data for each of the conditions will be averaged together
and a solution presented for the average.
o Different adjustment types (for example, PCL and TAB) for the same
measurement type (i.e. vertical vibration), would require different “ID” numbers
for the conditions applicable to each adjustment type.
The “Target” fields allow input of a maximum acceptable vibration (for vertical and
lateral measurements) and maximum acceptable total track split (when using a tracking
influence vs. blade position for corrections). Simply enter the value you wish to use. If
the measurements recorded during a job are above this value, the analyzer will present
corrections, if the measurements are below, the analyzer will not give an adjustment.
