Gen II User Manual
14-16 – Vibration Spectrum Survey Chapter 14 Revision 4.10, Apr 2020
14.1.5.3.2. Press [F5] “Start Engine” to continue. If calibration has not been completed, a warning
message will appear giving you the option to calibrate the microphone or continue with
the job.

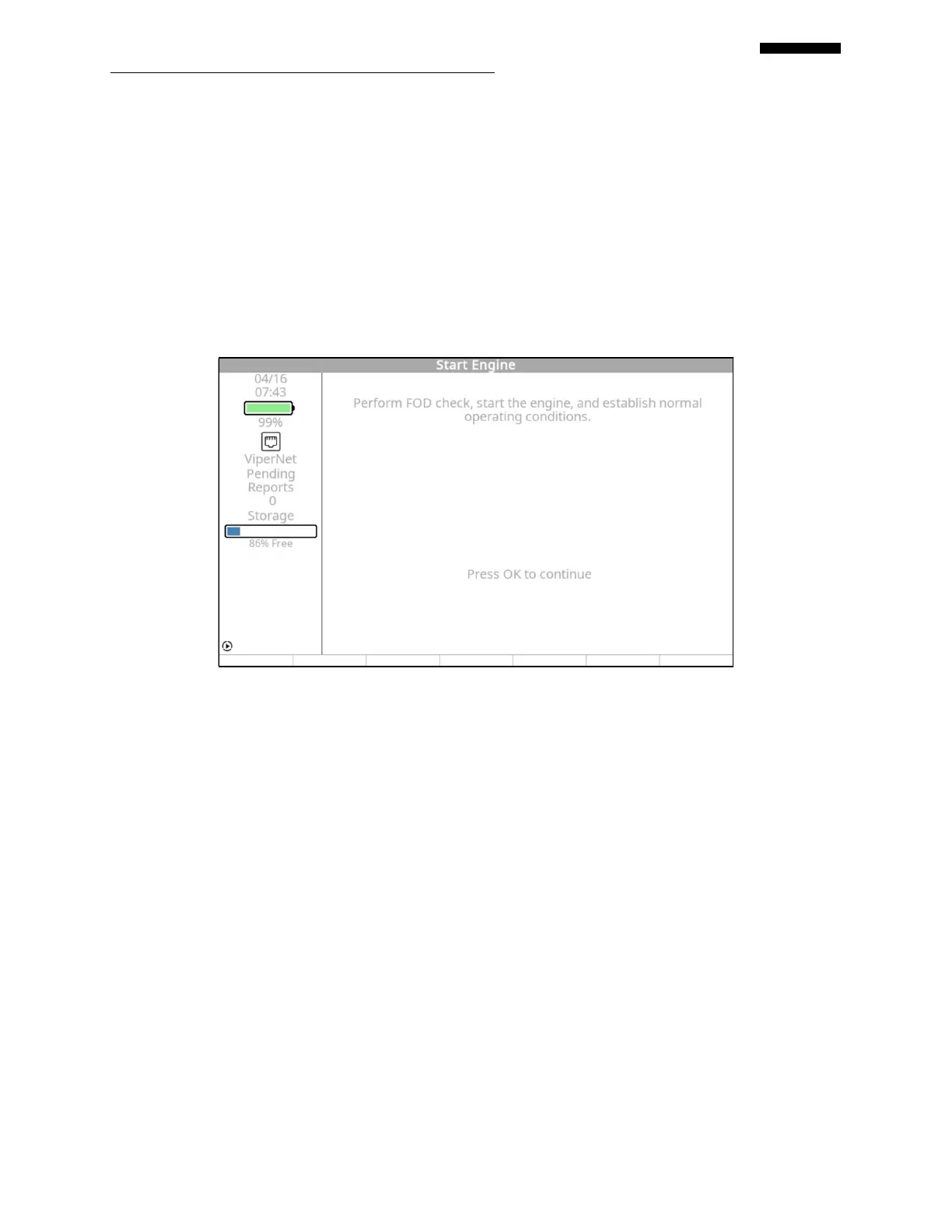

14.1.6. – Start Engine
Start the engine (or component) you are checking (generator, gearbox, etc.). When the
component reaches normal operating conditions (speed, temp, etc.), press the [OK] key to begin
acquiring data.
NOTE
The [F4] menu item “Calib” and the message “Press F4 to change the microphone Calibration”
will only appear in a Viper II and if a microphone has been selected as a sensor in the setup. This
function is not available in the Cobra II.
14.1.7. – Select Condition
Use the [] or [] keys to select the condition you wish to collect. When your choice is
highlighted, press [OK] to begin collecting data.
