ACES SYSTEMS Cobra II - Tail Rotor Setup Screen; Tail Rotor Condition Setup Screen

Gen II User Manual
8-5 – Tail Rotor Balance Chapter 8 Revision 3.00, April 2020

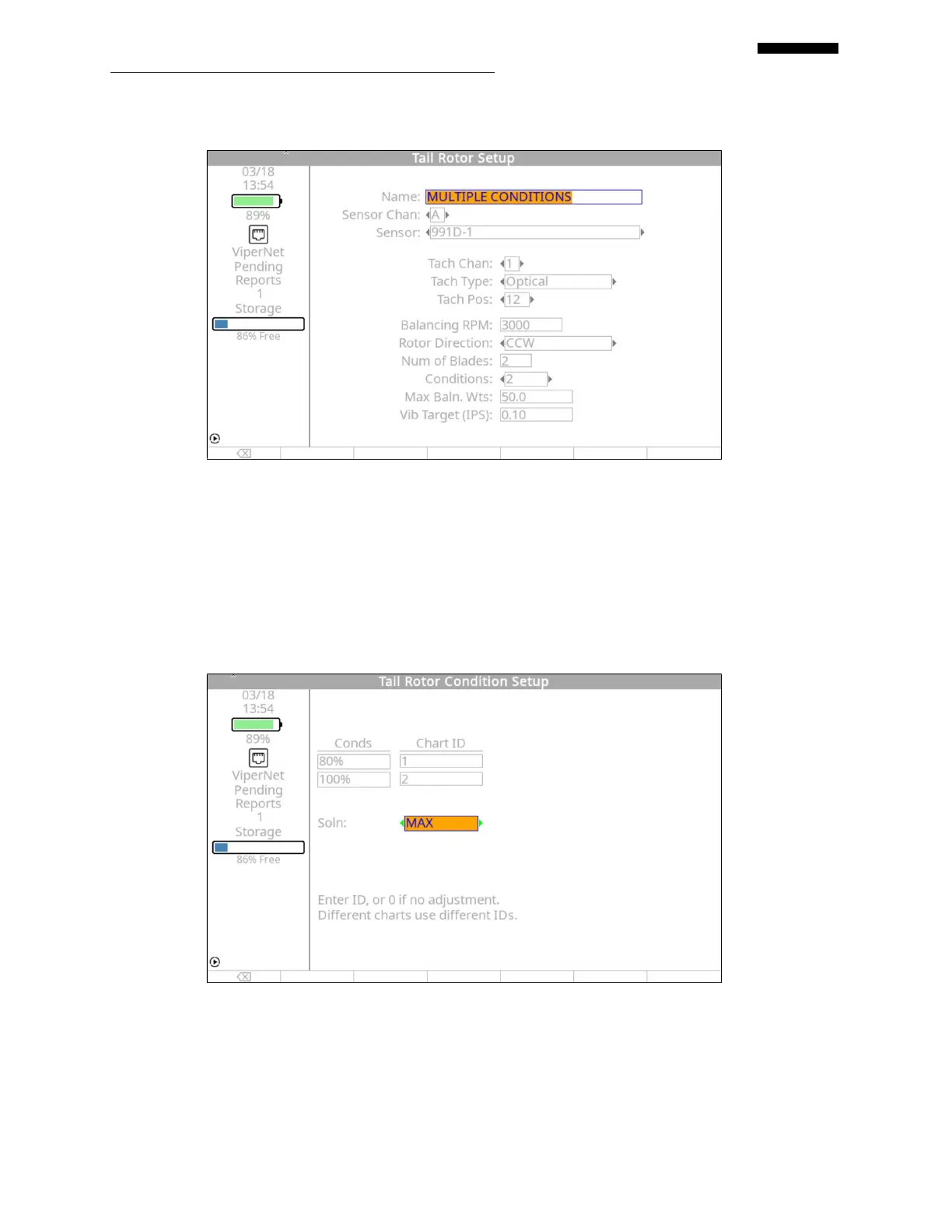

8.2.1. – Tail Rotor Setup Screen
Using the instructions outlined in paragraph 8.1.1 to complete the “Tail Rotor Setup” screen
as shown in the screenshot above.
When finished with the main setup screen, press [OK].
8.2.2. – Tail Rotor Condition Setup Screen
 The name for the first condition will be labeled “1”. Use the keypad to change to the
desired condition name.
 Press the [] key and assign the chart ID.
