ACES SYSTEMS Cobra II - Main Rotor Track & Balance (Rev 3.00, Apr 2020); Main Rotor Setup; Main Rotor Setup Screen

Chapter 7
Main Rotor Track & Balance
(Revision 3.00, April 2020)
This section is intended to familiarize you with the various electronic chart forms and setup
screens used with the Gen II Analyzer–first by looking at each of the chart forms found in the
main rotor section, then by using these forms to create an actual setup.
7.1. – Main Rotor Setup
This section covers the complete setup process in the Gen II Analyzer for the main rotor balance
functions.
The following paragraphs illustrate each of the screens necessary to define and store an enhanced
main rotor setup.

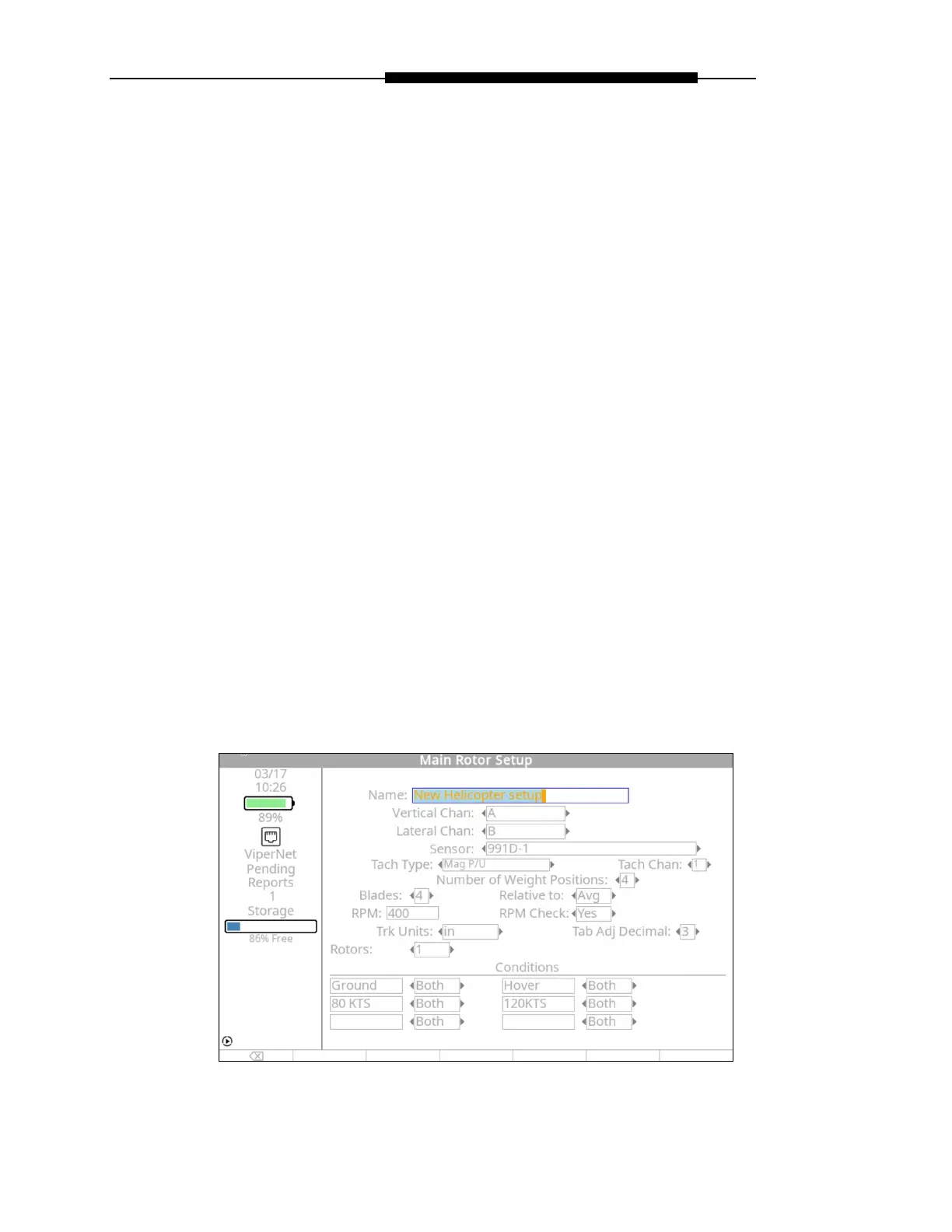

7.1.1. – Main Rotor Setup Screen
