ACES SYSTEMS Cobra II User Manual

Gen II User Manual
14-3 – Vibration Spectrum Survey Chapter 14 Revision 4.10, Apr 2020

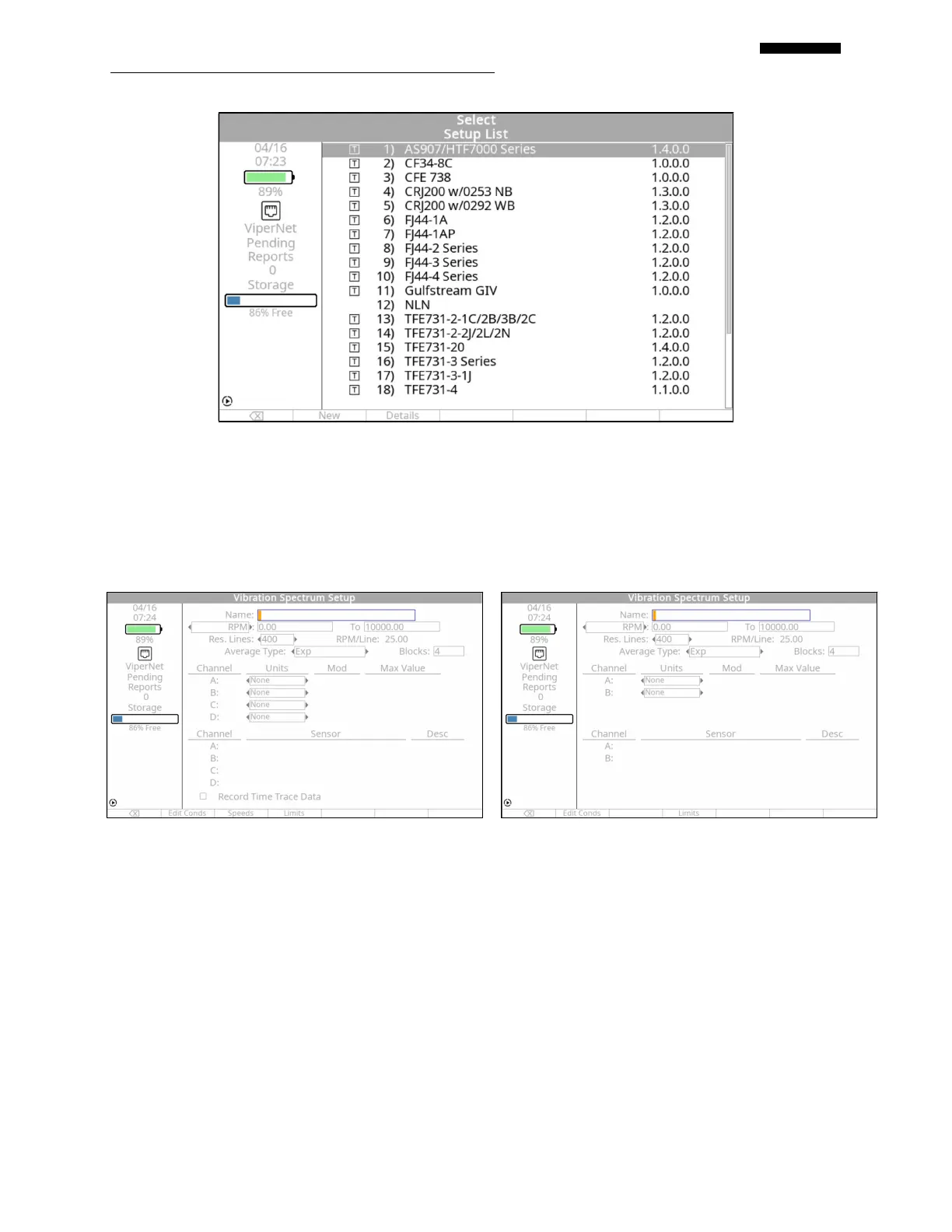

“Vibration Spectrum Setup” Screen. If you are starting a new job with no setups previously
defined in the analyzer’s memory, the screen will automatically display the “Vibration Spectrum
Setup” banner screen shown below.
14.1.1. – Vibration Spectrum Setup
The “Vibration Spectrum Setup” banner screen allows you to define and store a vibration
spectrum survey setup. As shown in the figures below, some fields in this screen have default
values that appear automatically. You can use this information if appropriate or input your
specific setup information using the keypad. (Refer to Chapter 3, “Using the Gen II Analyzer” if
you are unfamiliar with using the keypad.) The analyzer will display the “Vibration Spectrum
Setup” banner with default values as those shown in the figures below.
To complete the “Vibration Spectrum Setup” banner screen (shown below), do the following:
Viper II Cobra II
