14-13 – Vibration Spectrum Survey Chapter 14 Revision 4.10, Apr 2020
14.1.4. –Equipment Setup

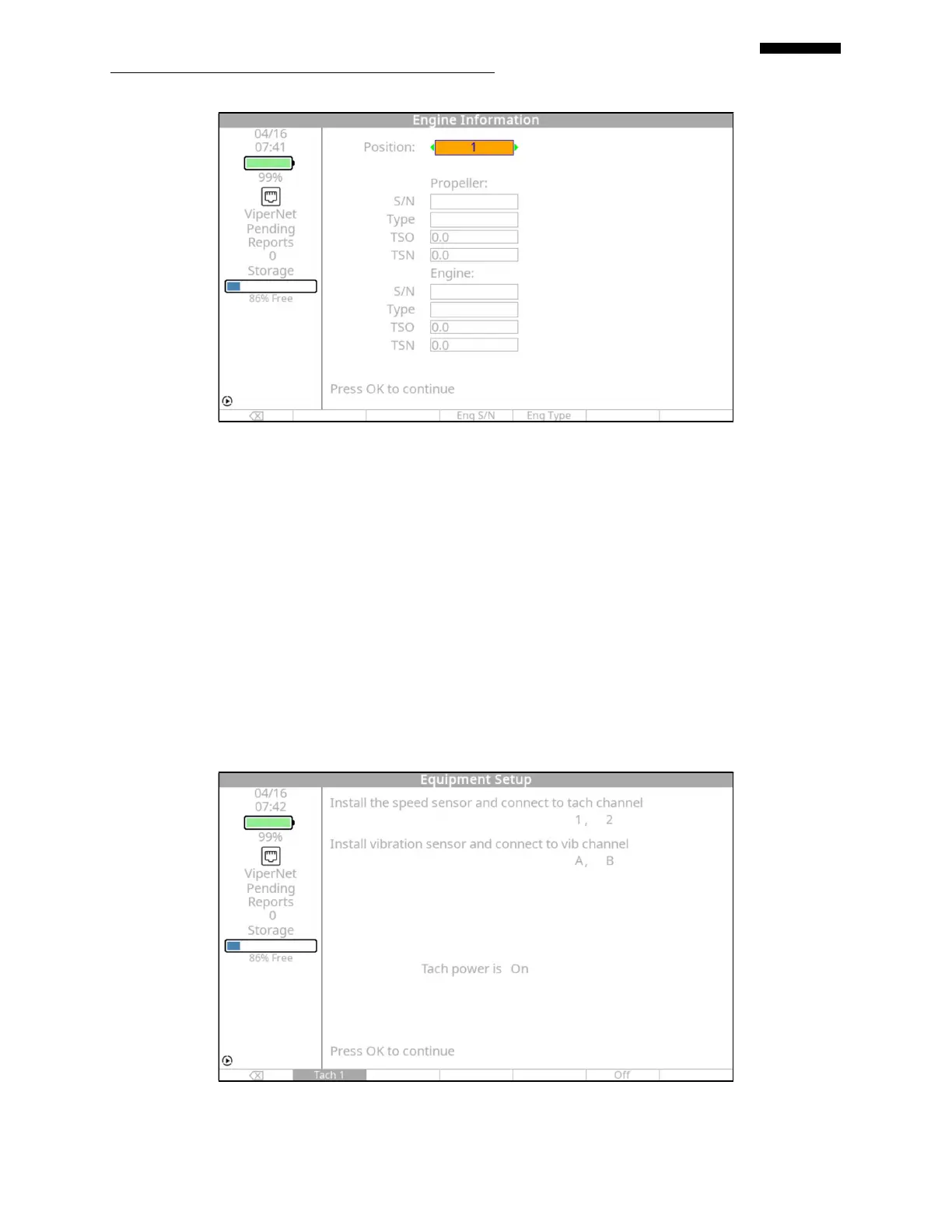

The “Equipment Setup” banner screen, shown below, will be displayed prompting to install the
appropriate sensors and cables.
If the Viper II’s “Speeds” screen in paragraph 14.1.1.3 above was configured for use of an
optical tachometer, the information message “Tach power is On” will be displayed near the
center of the screen. This indicates that power to the optical tachometer is currently powered on
to check alignment with the reflective target.
When all installations and connections are made, and tachometer checks completed as necessary,
press [OK] to accept settings and exit this screen.
