Gen II User Manual
10-19 – Fan/Turbine Balance Chapter 10 Revision 2.10, Apr 2020

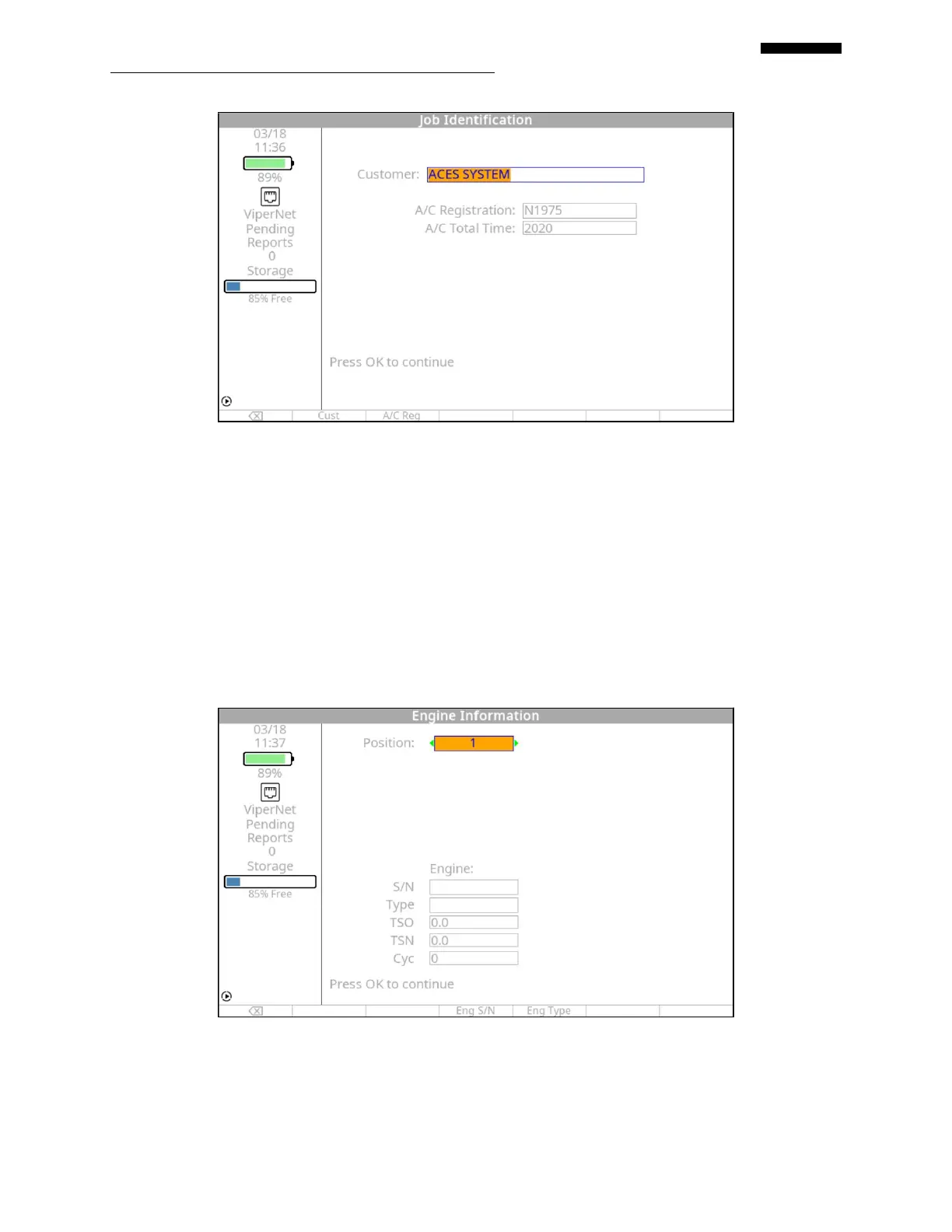

10.1.9. – Engine Information Screen
10.1.9.1. The Engine Information screen will be displayed where you may enter the
optional information of Position, Engine S/N, Type, TSO, TSN, and Cyc.
Complete each field as necessary using the analyzer keypad. If Serial Numbers or
Engine Types have previously been entered in this analyzer, you may optionally
press the [F3] “Eng S/N” or [F4] “Eng Typ” key and select a serial number or
engine type from the stored list. When all fields are complete per your
requirements, press [OK] to accept and continue.
10.1.9.2. If you selected to label detail weights in the Job in paragraph 10.1.1.8 above, the
“Label Detail Wt Holes” screen will appear. Complete as shown in 10.1.5
above.
