ACES SYSTEMS Cobra II User Manual

Gen II User Manual
8-14 – Tail Rotor Balance Chapter 8 Revision 3.00, April 2020

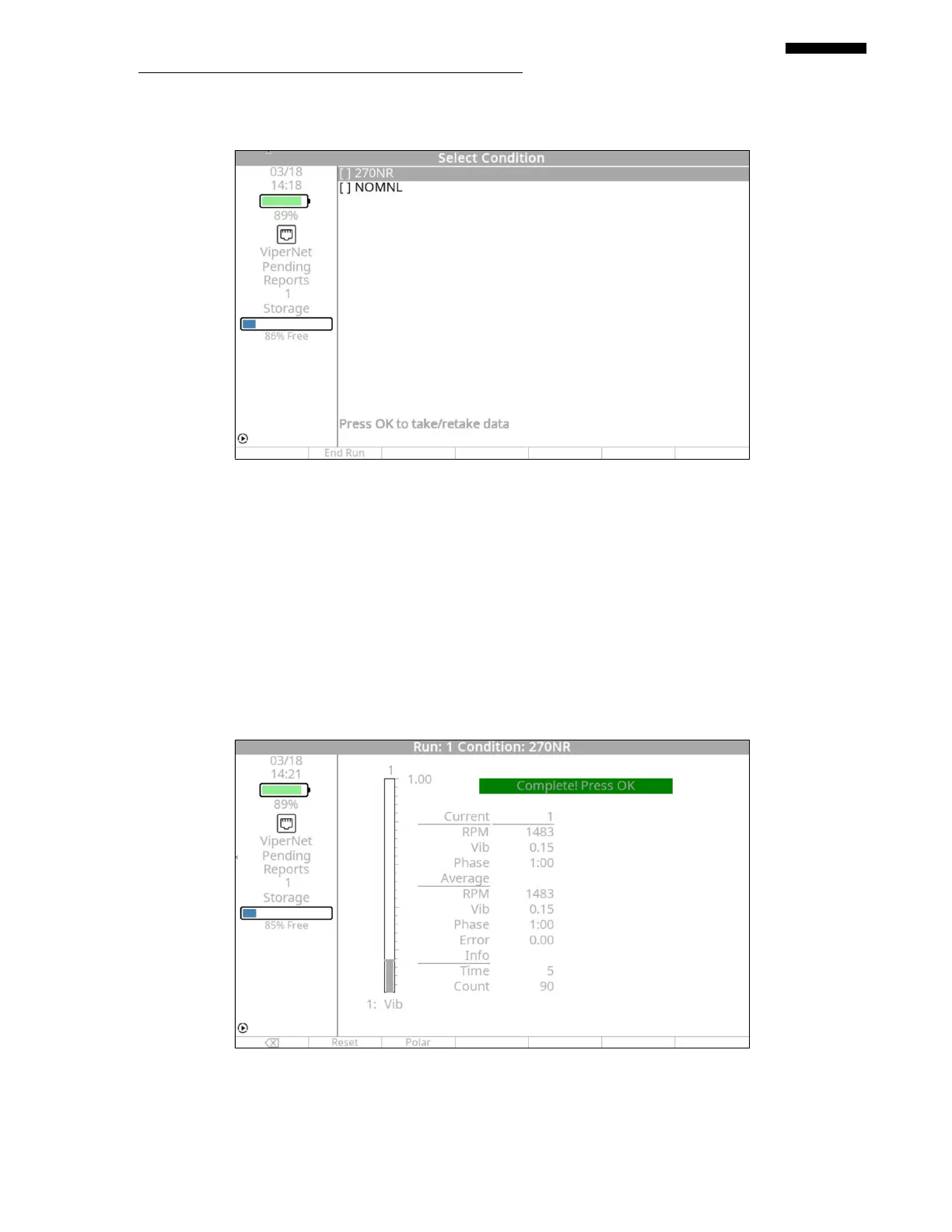

8.3.6. – Select Tail Rotor Condition Screen
If multiple conditions were configured in the setup, the “Select Tail Rotor Condition” screen
will be displayed allowing the user to select the applicable condition to acquire data. This
screen will only appear in “Multiple Condition” balance runs. In a single condition run, the
next screen to appear is the “Data Acquisition” screen, proceed to paragraph 8.3.7.
Use the [] key to highlight the proper condition and press [OK] to begin gathering data for
that condition.
8.3.7. – Data Acquisition
The data acquisition screen will appear next, displaying the current and averaged rotor speed,
vibration amplitude (IPS), and phase angle (in clock format). There will also be a numeric
