Chapter 20
Check Track
(Revision 3.00, April 2020)

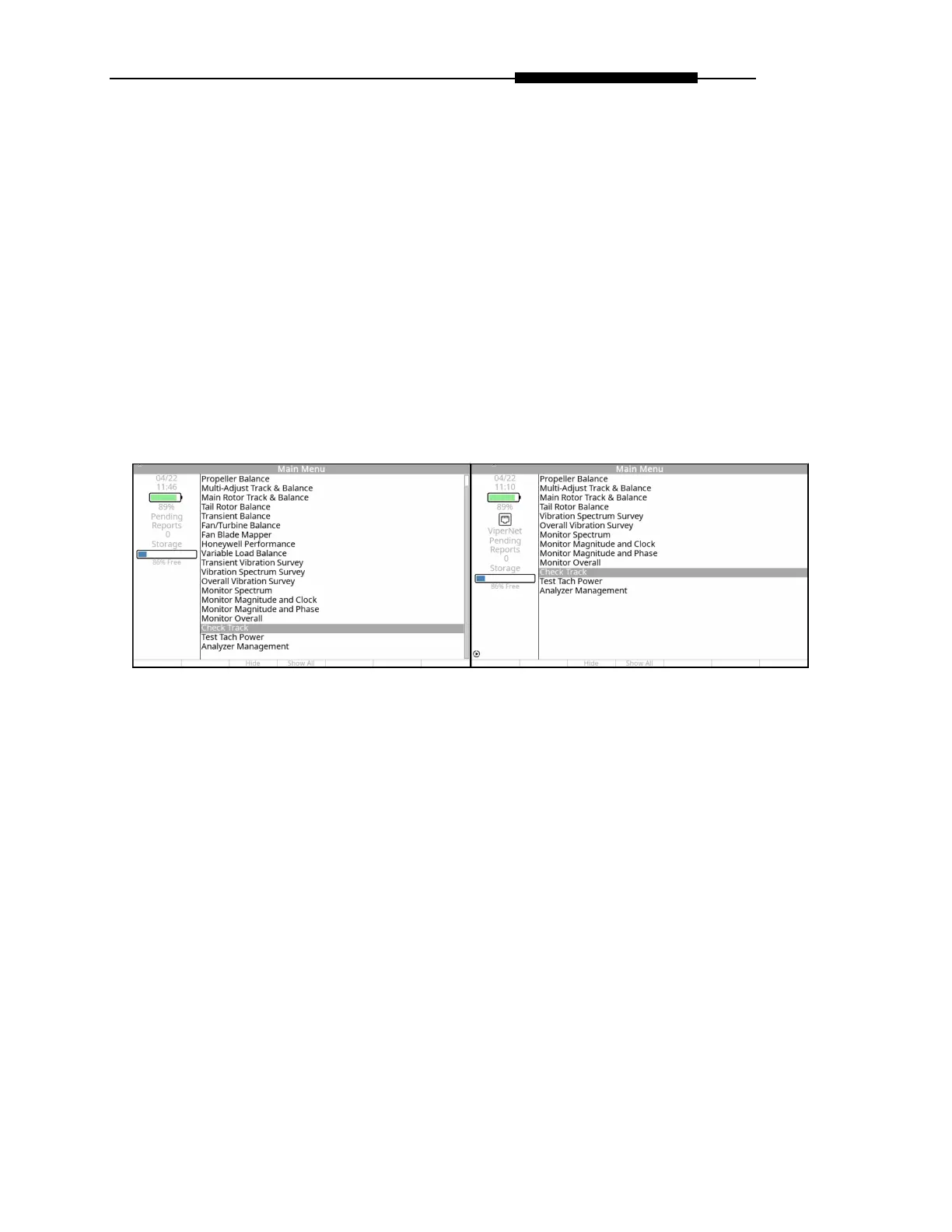

“Check Track” is an analyzer function that is accessed from the analyzer’s Main Menu banner
screen. A description of this function follows, along with the information required to complete
the menu screens within the function, and the steps necessary to perform the function.
20.1. -Check Track
The “Check Track” option is provided for quick track observations. It provides a temporary
method of checking blade track independent of the Main Rotor Track and Balance menu item.
Data from this function is not stored in the analyzer.
The “Check Track” function can be performed using either an industry-standard strobe for visual
blade tracking or the ACES Systems’ Model 550 TraX
TM
.
Before using the “Check Track” function on the analyzer, you must first install physical
equipment such as cables and sensors. To setup equipment, do the following:
Place the analyzer in the location it will be used. Install and connect the once-per-rev
source to the TACH channel of choice. (You must use a magnetic pickup or optical tach
for the once-per-rev signal.)
