13-19 – Transient Vibration Survey Chapter 13 Revision 4.10, Apr 20
13.1.4. – Equipment Setup

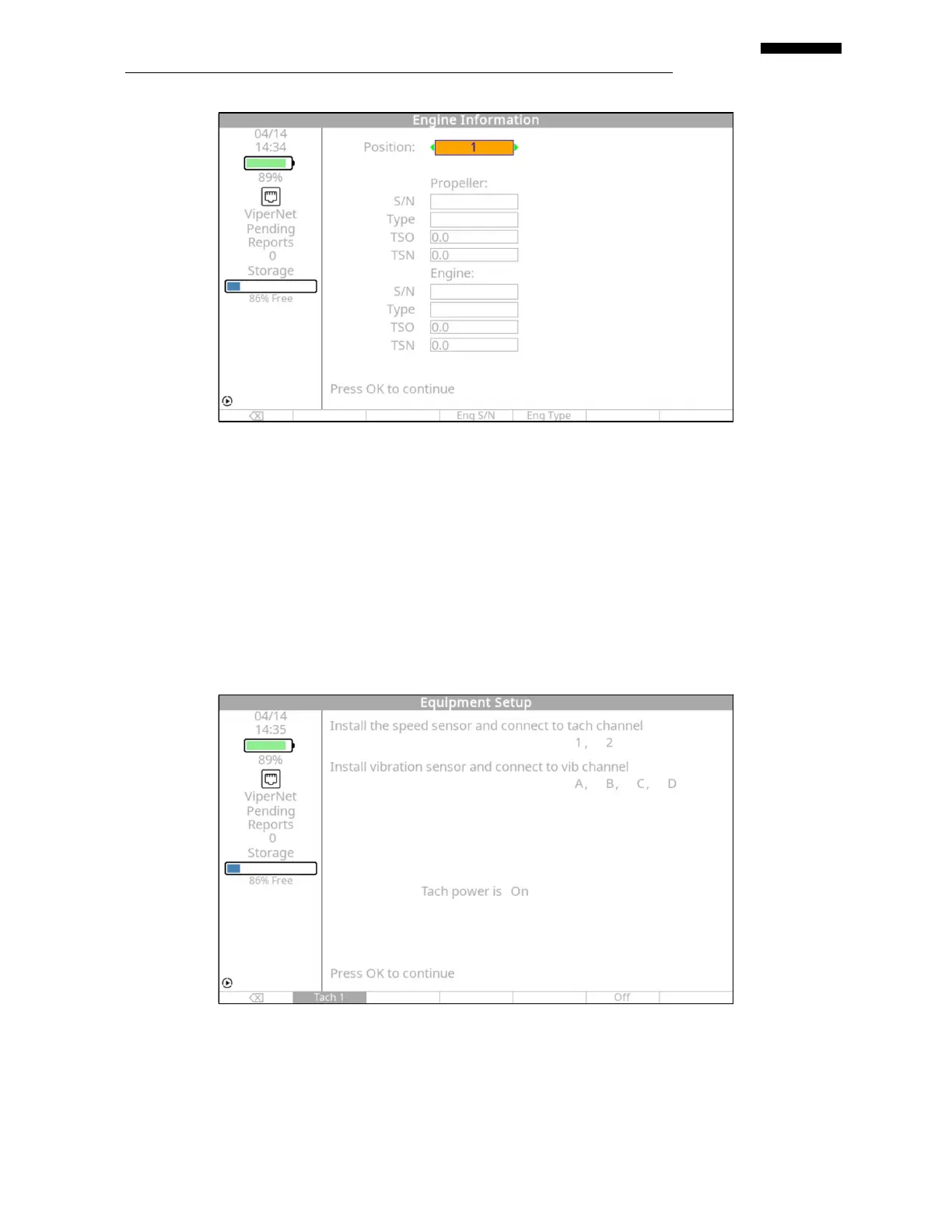

The Transient Balance Equipment Setup banner screen, shown below, will be displayed. Install
the speed sensor, vibration sensor, and cables as indicated. Near the center of the screen, the
information message “Tach power is on” will be displayed. This indicates that power to the
optical tachometer is currently available to check alignment with the reflective target. If you do
not wish to do the alignment at this point, press the [F1] “Tach Pwr” key to remove power to the
optical tachometer. When all installations and connections are made, and tachometer checks
completed as necessary, press [OK] to accept settings and exit this screen.
NOTE
