15-3 – Overall Vibration Survey Chapter 15 Revision 4.10, Apr 20

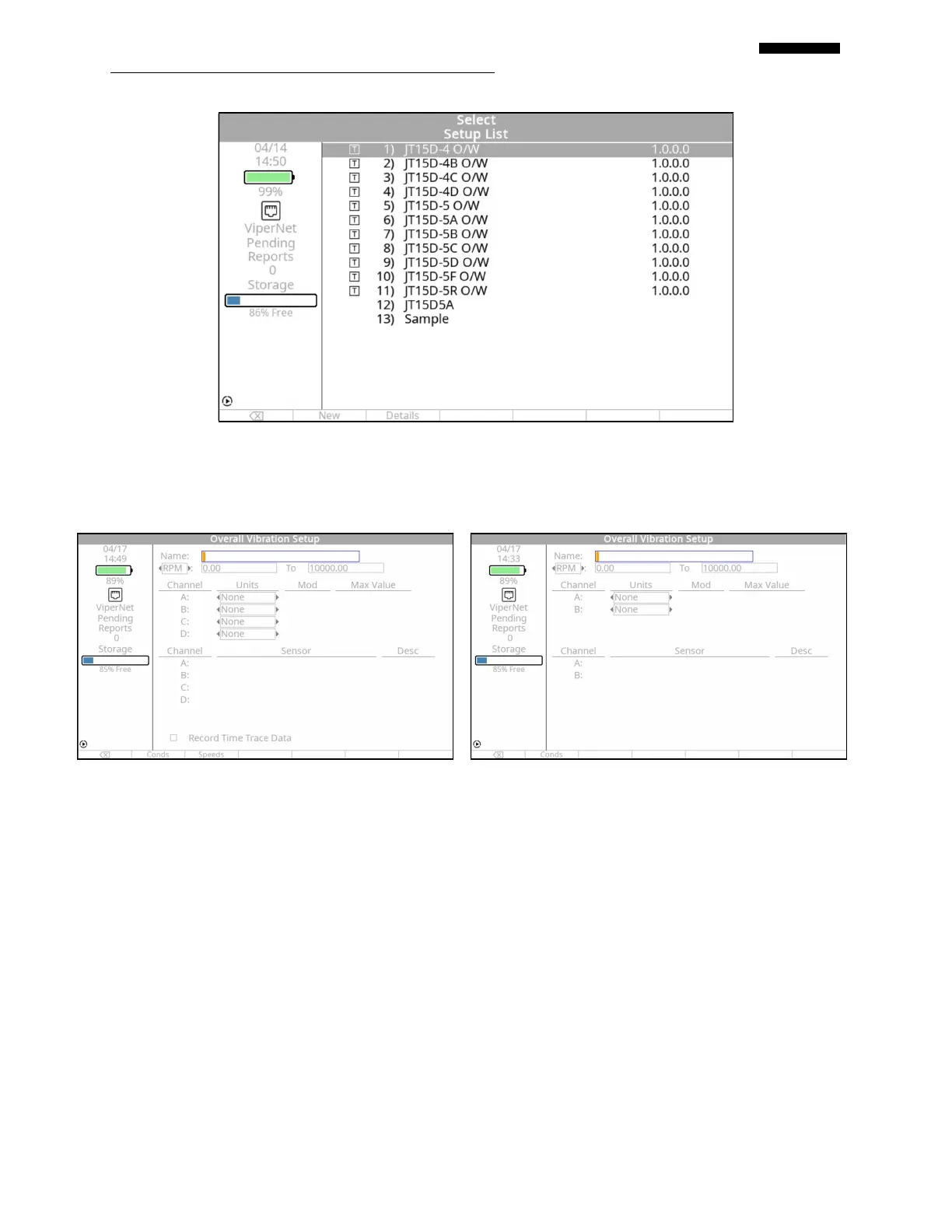

“Overall Vibration Setup” Screen. If you are starting a new job with no setups previously
defined in the analyzer’s memory, the screen will automatically display the “Overall Vibration
Setup” banner screen shown below.
15.1.1. – Overall Vibration Setup
The “Overall Vibration Setup” banner screen allows you to define and store an overall vibration
survey job. As shown in the figure below, some fields in this screen have default values that
appear automatically. You can use this information if appropriate or input your own specific
setup information using the keypad. (Refer to Chapter 3, “Using the Gen II Analyzer”, if you are
unfamiliar with using the keypad.) The analyzer will display the “Overall Vibration Setup”
banner with default values or values entered from the previous job such as those shown in the
figure below.
To complete the “Overall Vibration Setup” banner screen (shown below), do the following:
To Next Page
