15-10 – Overall Vibration Survey Chapter 15 Revision 4.10, Apr 20
15.1.4. – Equipment Setup

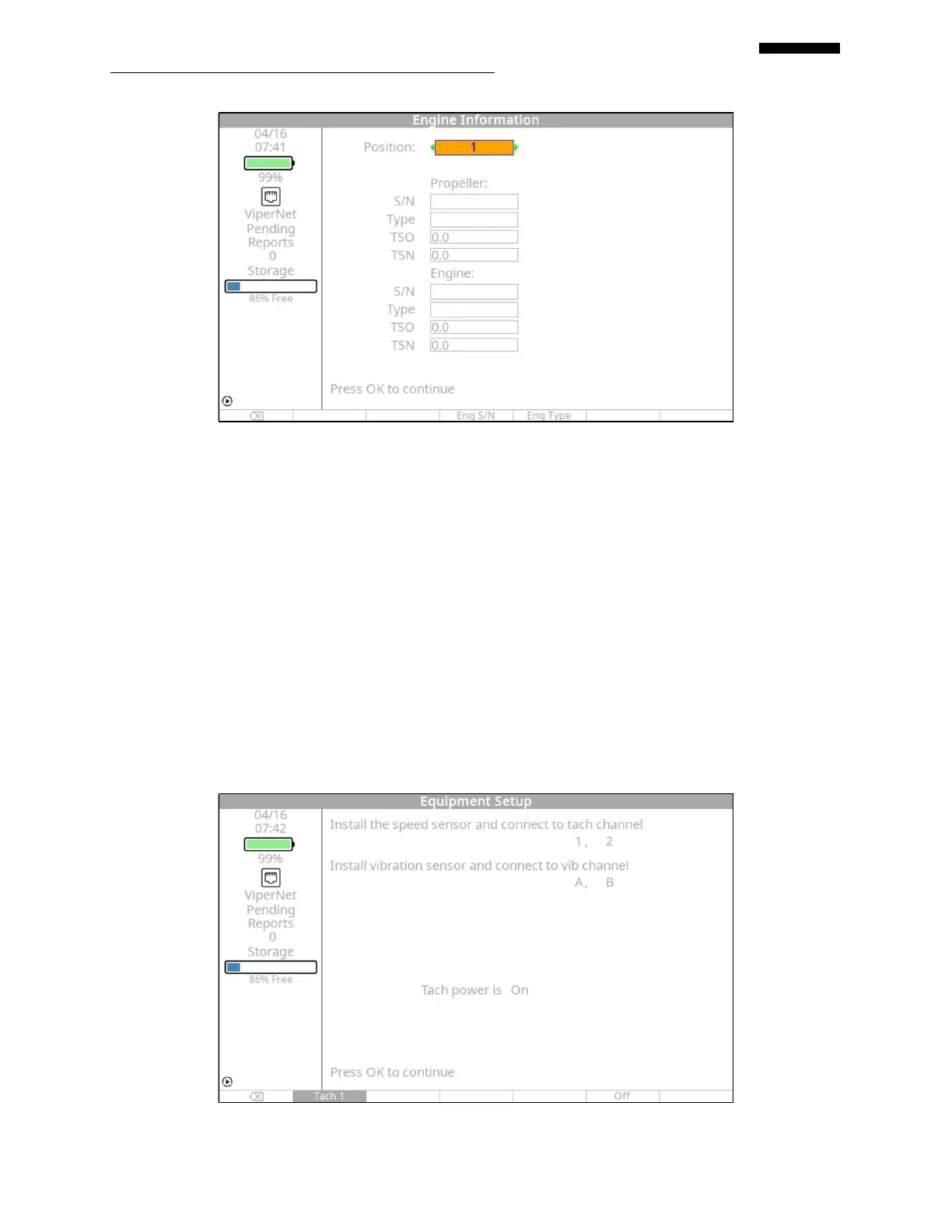

The “Equipment Setup” banner screen, shown below, will be displayed prompting to install the
appropriate sensors and cables.
If the Viper II’s “Speeds” screen in paragraph 15.1.1.3 was configured for use of an optical
tachometer, the information message “Tach power is On” will be displayed near the center of the
screen. This indicates that power to the optical tachometer is currently available to check
alignment with the reflective target. Press the [F1] “Tach Pwr” key to turn off power to the
optical tachometer when it not being used.
When all installations and connections are made, and tachometer checks completed as necessary,
press [OK] to accept settings and exit this screen.
