Gen II User Manual
4-9 – Propeller Balance Chapter 4 Revision 2.2, Apr 2020
4.1.1. – Prop Balance Setup
The “Prop Balance Setup” banner screen allows you to define and store a propeller balance
Setup. The “Prop Balance Setup” banner screen displays fill-in and selection type fields. The fill-
in fields have squared off ends ([ ]). These fields are filled in using inputs from the analyzer
keypad. The selection fields have pointed ends (< >). These fields have two or more preset
values that are selected by using the [] and [] keys. Navigate between the fields on this
screen using the [] and [] keys. (Refer to Chapter 3, “Using the Gen II Analyzer” if you are
unfamiliar with using the keypad or inputting data.)
4.1.1.1. – Propeller Balance Setup Screen

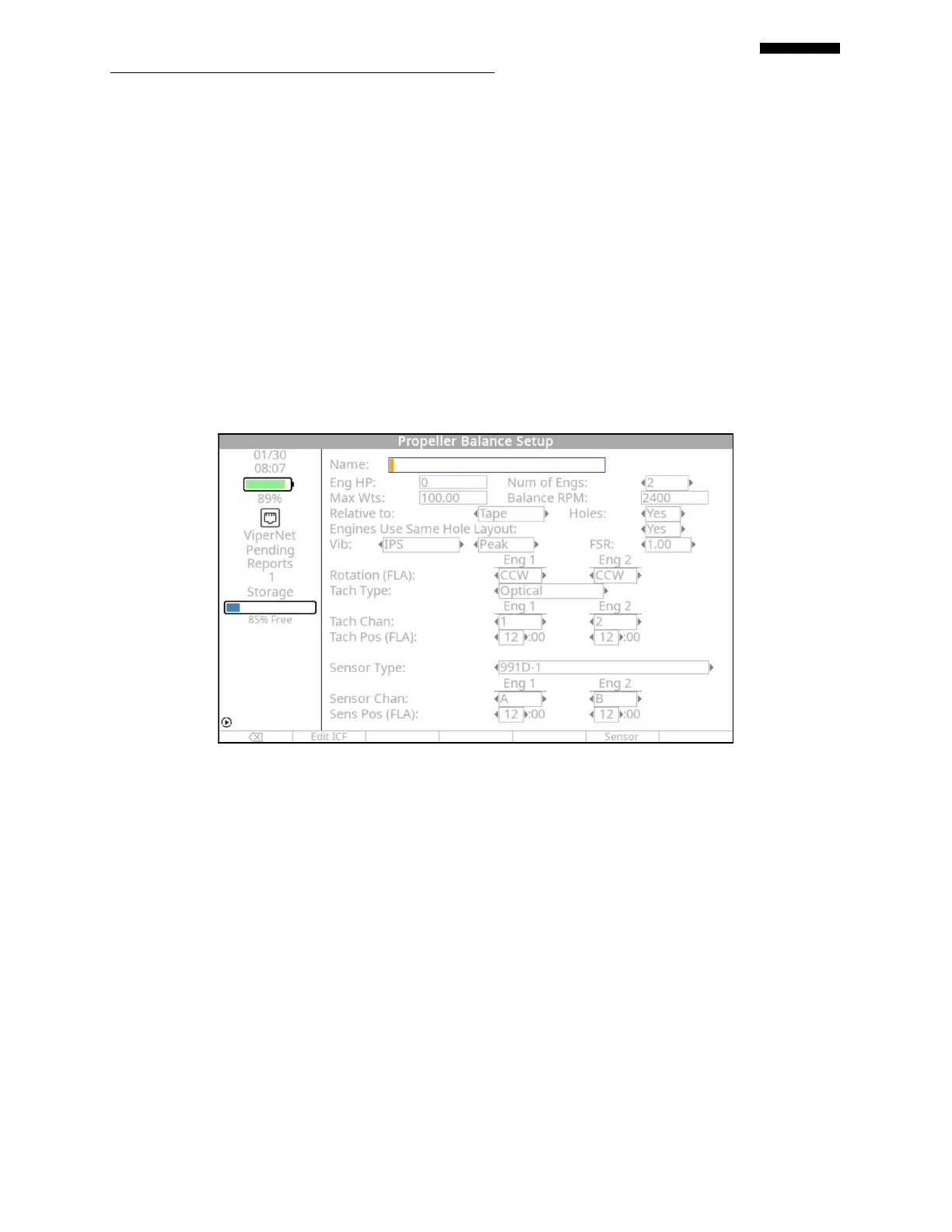

To complete the “Prop Balance Setup” banner screen (as shown below), do the following:
4.1.1.1.1. In the “Name” field, enter a name for this setup using the keypad. (Refer to
Chapter 3, “Using the Gen II Analyzer” if you are unfamiliar with using the
keypad.)
The name you choose will aid you in differentiating this setup from other stored
setups should you choose to review it at a later time. The name should be one of
your choosing which will be easily recognized and associated with this setup such
as “Cessna 150”, “King Air”, or “T-6 TEXAN II”.
4.1.1.1.2. Using the [] key, move down to the “Eng HP” field. Enter the rated horsepower
of the engine using the keypad. The valid range of values for this field is 0 to
5000.
4.1.1.1.3. Using the [] key, move to the “Num of Engs” field. Use the [] key to select
the number of engines being balanced with this setup.
