Gen II User Manual
19-7 – Monitor Overall Chapter 19 Revision 2.10, Apr 2020

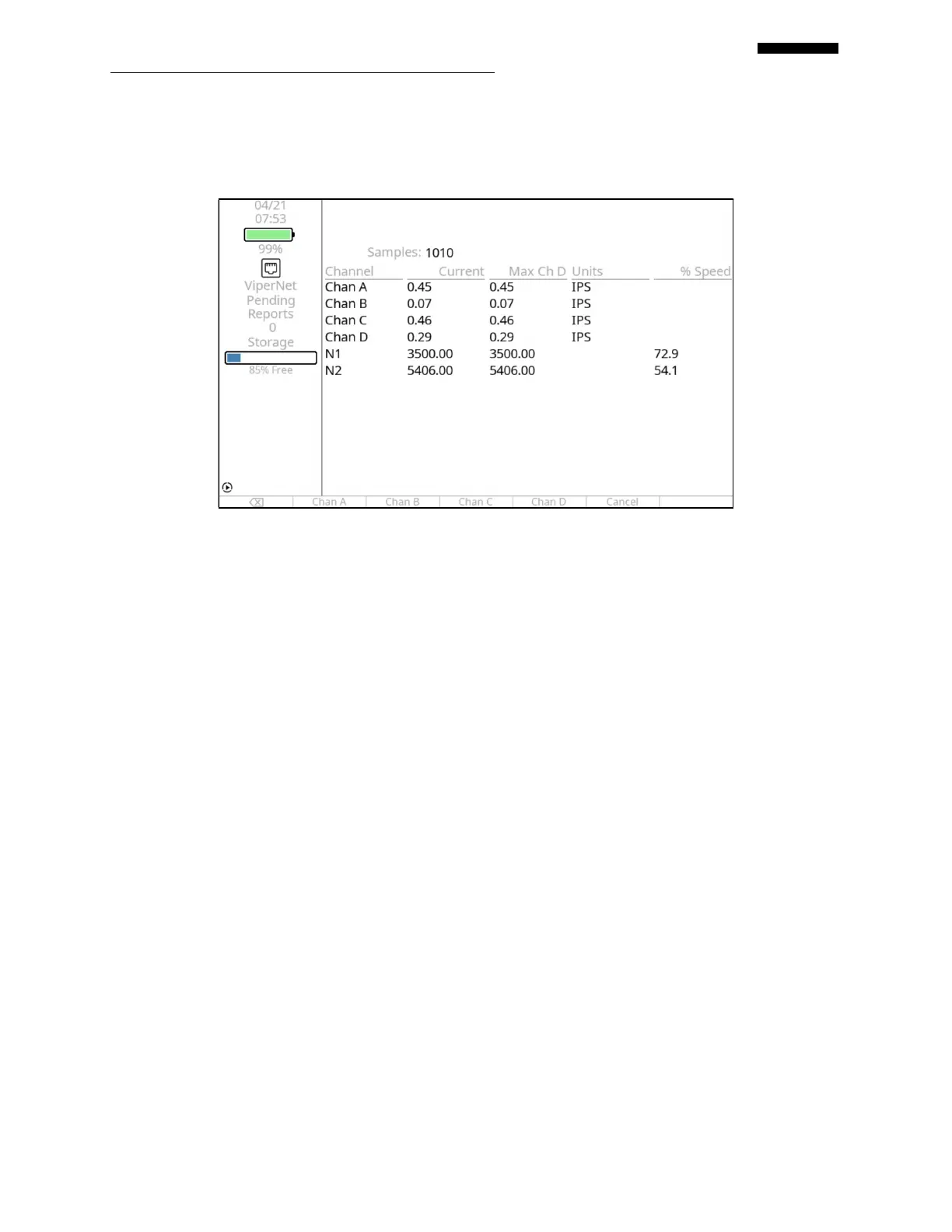

channels when Channel A reached its maximum value. The default selection is Channel
A and the heading over the third column is reads “MxChanA”. This will change to
display the selected channel as shown in the screenshot below.
19.1.3.2.2. [F2] “Pause” – will pause the acquisition process and change to “Resume” when pressed.
Pressing the key, a second time will resume the data acquisition process without resetting
any values.
19.1.3.2.3. [F4] “Spectra” – When pressed, the display will change to show the spectra plot as shown
in paragraph 19.1.4 below.
19.1.3.2.4. [F5] “Restart” – will reset all of the recorded values to zero and begin the sample count
again.
19.1.4. – Collecting Data with “Spectra”
After pressing the [F4] “Spectra”, the spectra is displayed. If multiple sensors were configured,
the display will be divided in half for two sensors (top and bottom) or into quadrants for three or
four sensors as shown below. The analyzer will begin data acquisition as soon as the screen is
displayed. For a description of the fields and function keys, see paragraphs 19.1.4.1 and 19.1.4.2
below.
