Gen II User Manual
14-15 – Vibration Spectrum Survey Chapter 14 Revision 4.10, Apr 2020

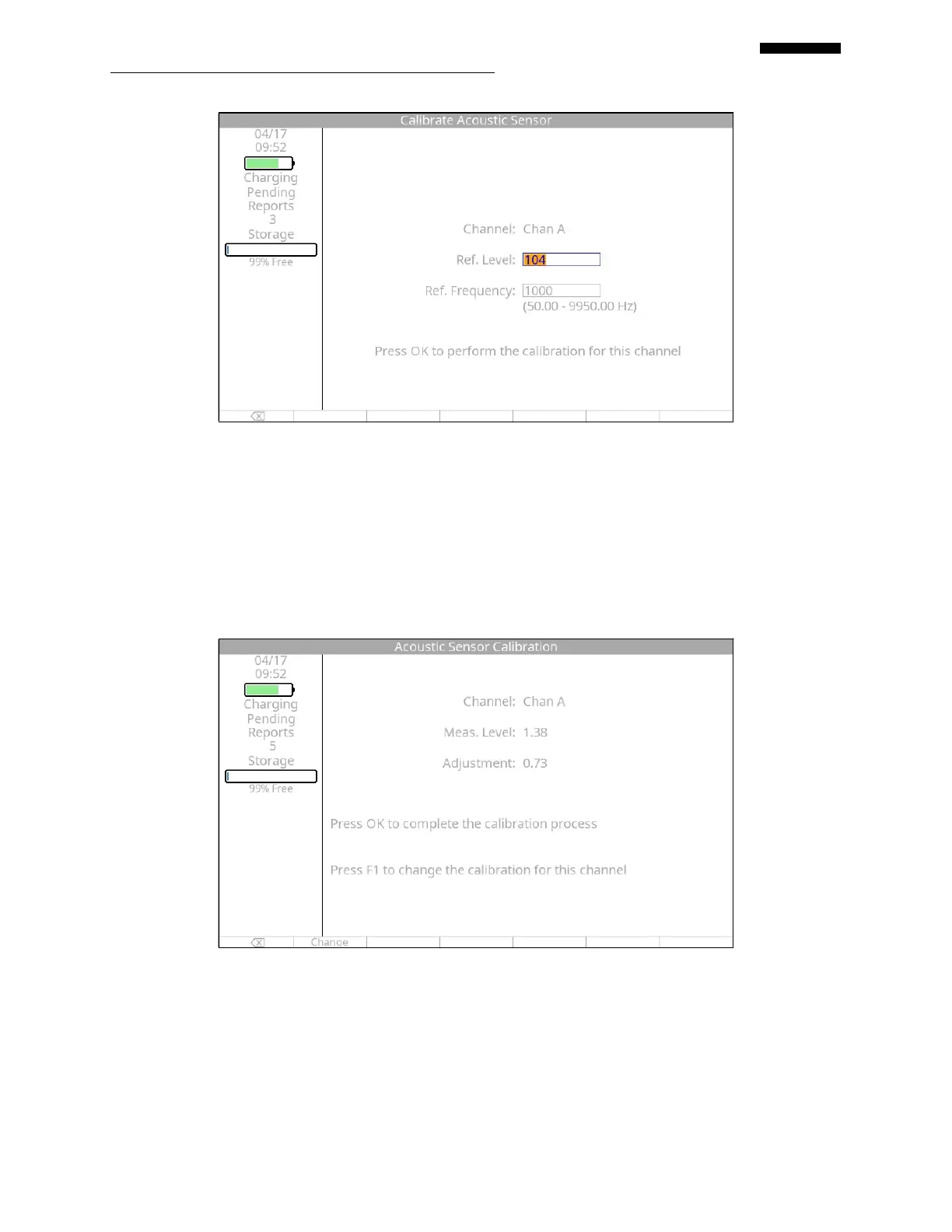

14.1.5.2.1. Enter the Reference Level, typically in decibels (dB), and the Reference Frequency, in
Hertz (Hz), as found on the calibrator. Plug the microphone into the correct size adapter
in the top of the calibrator. Turn the calibrator on and press [OK] on the analyzer.
14.1.5.2.2. After calibration the analyzer will display the “Acoustic Sensor Calibration” screen.
14.1.5.3. “Acoustic Sensor Calibration”
14.1.5.3.1. The “Acoustic Sensor Calibration” screen provides details of the calibration. You will
have the option to change the calibration by pressing the [F1] “Change” key and
repeating the steps in paragraph 14.1.5.2.1. Otherwise press [OK] to complete the
calibration process and return to the “Select channel to calibrate” screen shown in
paragraph 14.1.5.1. The checkbox next to the applicable channel will contain an “x”
indicating the calibration has been accomplished.
