Gen II User Manual
8-21 – Tail Rotor Balance Chapter 8 Revision 3.00, April 2020
enter the negative sign before the removed weight value. When all weights have been
weighed, removed from the tail rotor, and entered into the appropriated field, press the [OK]
key to re-solve the balance solution.

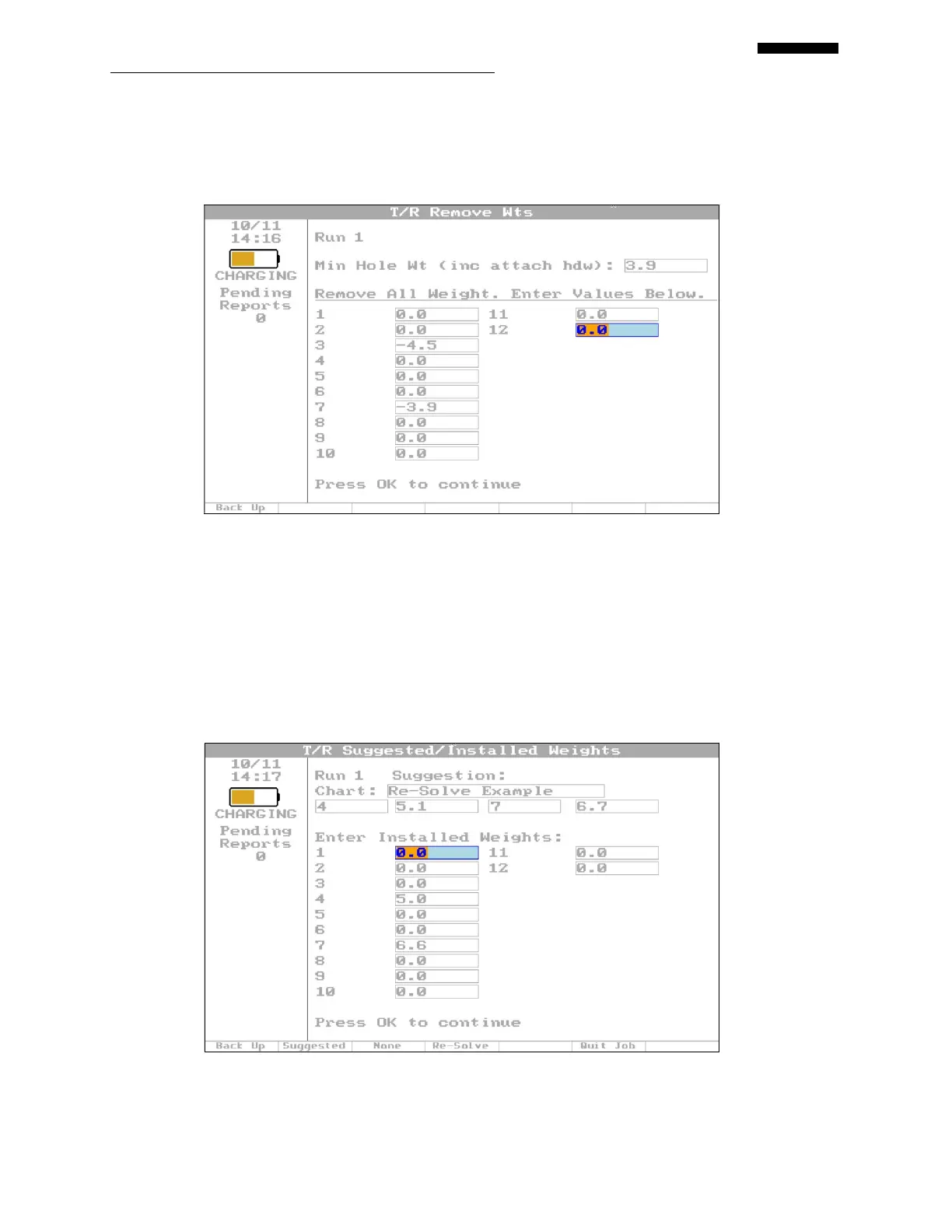

Now the solution presented on the top half of the “T/R Suggested/Installed Weights” screen
below “Run 1 Suggestion:” will be the minimum weight required in the minimum number of
holes allowing for the attaching hardware. These weights may not be in adjacent holes. This
is necessary to provide the weight “influence” at the optimum location on the tail rotor.
Every attempt should be made to match the suggested weight value. If it is not possible to
match the suggestion exactly, match the weight as closely as possible. Enter the values
actually placed on the tail rotor in the table at the bottom of the screen, under “Enter Installed
Weights”. Use the [] [] key to move from field to field.
