input. If you have specified more than one class weight set for this setup in

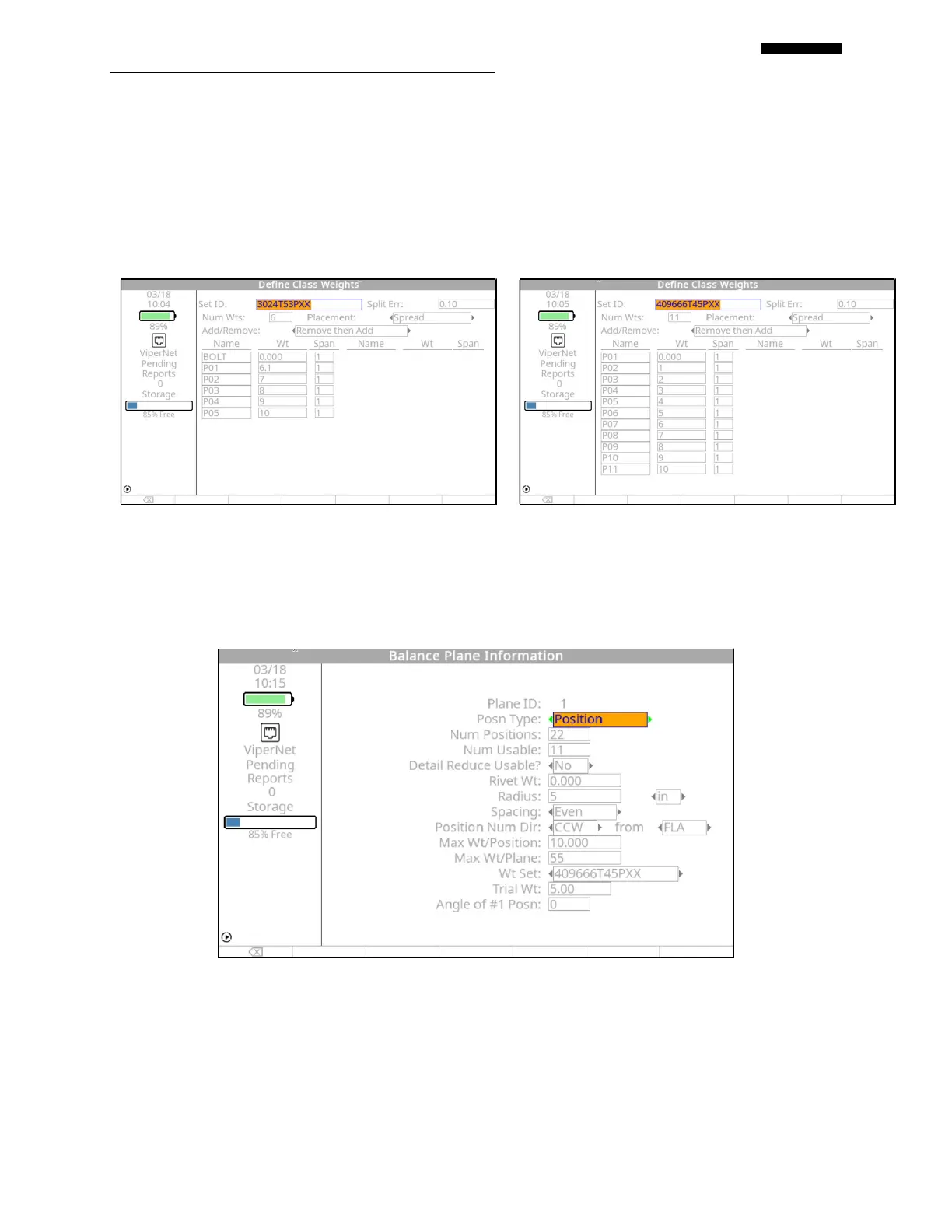

paragraph 10.1.1.7 above, another Define Class weight screen will be displayed,
such as the two screens below, when you press [OK] to store the current screen
and continue. Repeat section 10.1.3.2 through 10.1.3.10 for each additional class
weight set. If you have specified only one class weight set for this setup, press
[OK] and go to paragraph 10.1.4.
10.1.4. – Balance Plane Information Setup Screen
To complete the “Balance Plane Information” setup screen(s), as shown below, do the following:
10.1.4.1. The “Plane ID:” field displays the identifying number for the balance plane
information. You will complete one of these information screens for each balance
plane as defined in paragraph 10.1.1.4 or 10.1.1.5 above. If you defined only one
balance plane, you will only complete one balance information screen.
