To input conditions, do the following:

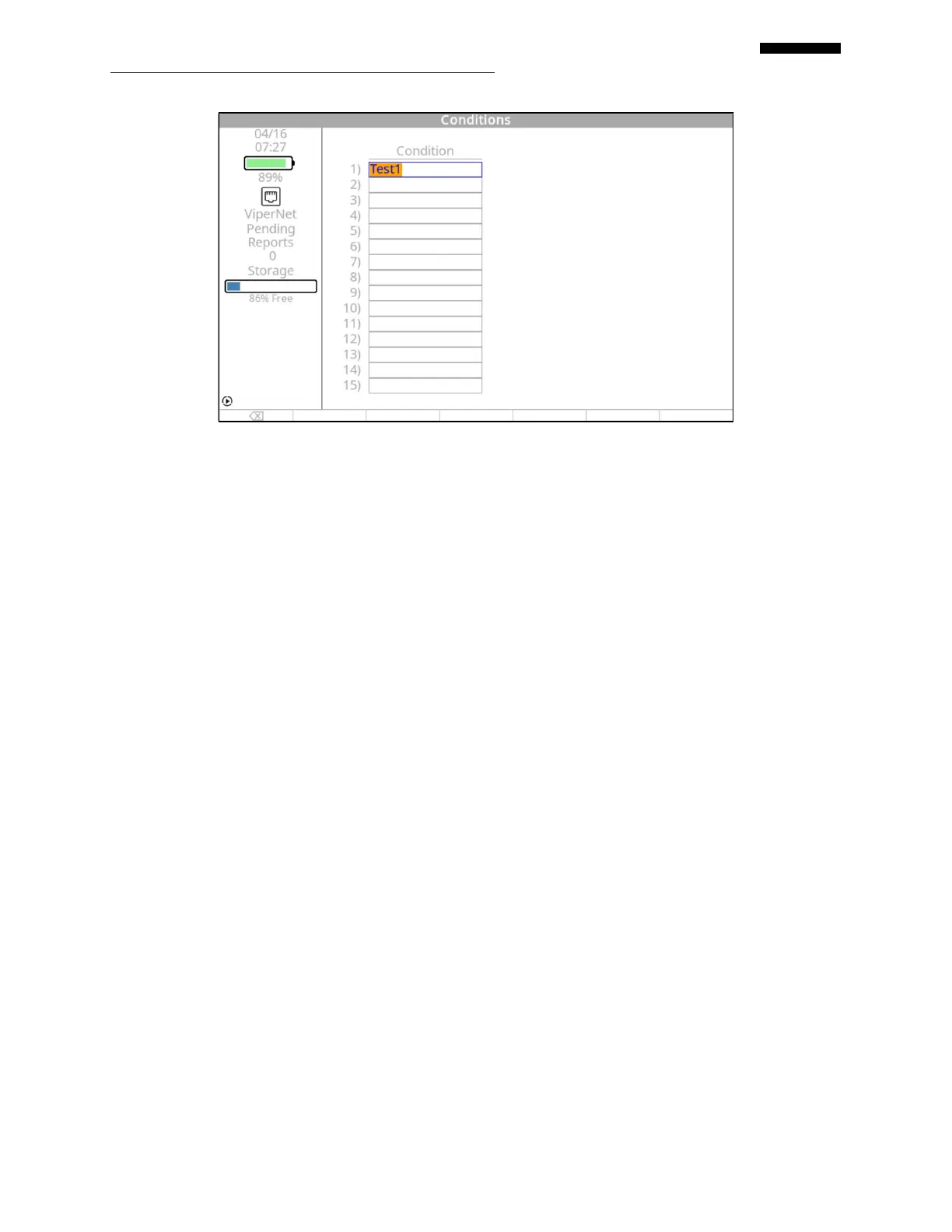

14.1.1.2.1. Use the [], [], [], and [] keys to navigate the screen and input conditions using the
keypad.
14.1.1.2.2. In the “Condition” column, use the analyzer keypad to enter a descriptive name for up to
15 conditions. You may define up to 15 individual conditions for which you optionally
collect and store data. When defined, these conditions are stored with the setup and are
accessed when the setup is selected and set into motion.
14.1.1.2.3. When the conditions are completed per your requirements, press [OK] to accept and
return to the “Spectra Setup” screen.
14.1.1.3. – Speeds (Viper II only)
Press the [F2] “Speeds” key from the Vibration Spectrum Setup screen shown above in
paragraph 14.1.1. The Speeds option allows you to measure several types of speed inputs for
synchronizing with the vibration input or to provide an entry field for reference where no actual
speed input is available. This allows you to view amplitude, in the selected engineering units,
relative to the speed of the machine or component being monitored.
If you choose this option to define speed inputs for the survey, the following “Speed Inputs
Setup” banner screen is displayed. There are four rows, 1, 2, 3, and 4 indicating the tachometer
input channel. There are four columns, Measure, DESC, OFF/100%, and Factor. These inputs
are described below.
To Next Page
