Gen II User Manual
15-6 – Overall Vibration Survey Chapter 15 Revision 4.10, Apr 20
To select Time Trace Data collection, use the [] key to select this feature. Time Trace
is a feature that allows the recording of the raw time vibration data as part of the job. The
raw data can then be used for post-processing later for different vibration analysis.
15.1.1.2. – Conditions

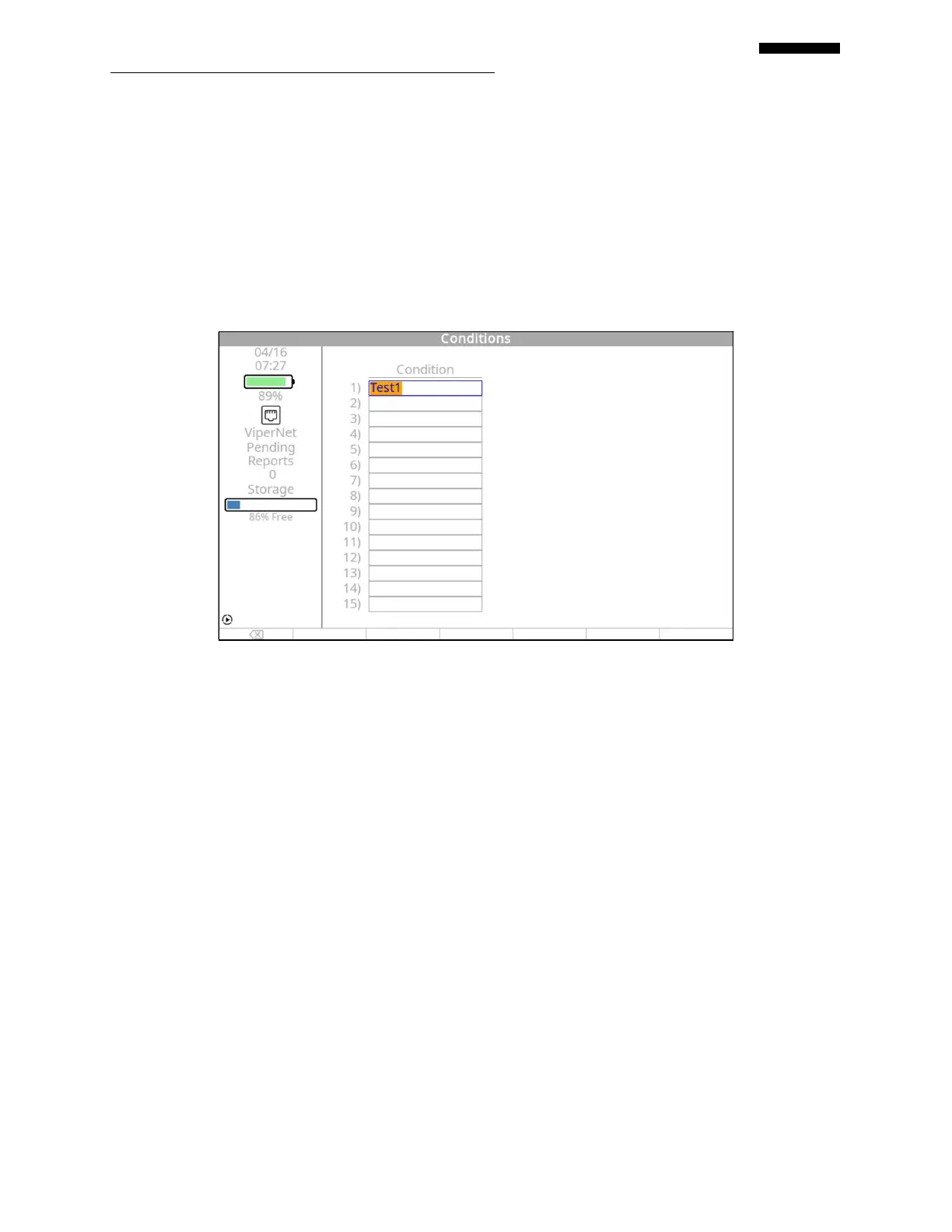

The “Conds” (conditions) key, which corresponds to the [F1] key, will display the Conditions
screen as shown in the example below.
To input conditions, do the following:
15.1.1.2.1. Use the [] and [] to move from field to field on this screen and the [] and [] keys
to navigate within the field or toggle between selections. Make field entries in the fields
using the keypad.
15.1.1.2.2. In the “Condition” column, use the analyzer keypad to enter a descriptive name for up to
15 conditions. You may define up to 15 individual points at which you collect and
optionally store data. When defined, these conditions are stored with the setup and are
accessed when the setup is selected and set into motion.
15.1.1.2.3. When the conditions are completed per your requirements, press [OK] to accept and exit
back to the “Overall Vibration Setup” screen.
15.1.1.3. – Speeds (Viper II only)
Press the [F2] “Speeds” key from the setup screen shown above in paragraph 15.1.1. The
Speeds option allows you to measure several types of speed inputs for synchronizing with the
vibration input or to provide an entry field for reference where no actual speed input is available.
