Gen II User Manual
15-15 – Overall Vibration Survey Chapter 15 Revision 4.10, Apr 20
15.1.8.1.5. “Units” – Displays the unit of measure selected in paragraph 15.1.1.1.5 for each sensor
channel configured.
15.1.8.1.6. “% Speed” (Viper II only) – Displays the speed in percent for each tach configured
ONLY if a 100% speed value was in entered in paragraph 15.1.1.3.3. Otherwise, these
fields will be blank.
15.1.8.2. – Function Key Options when viewing Overall

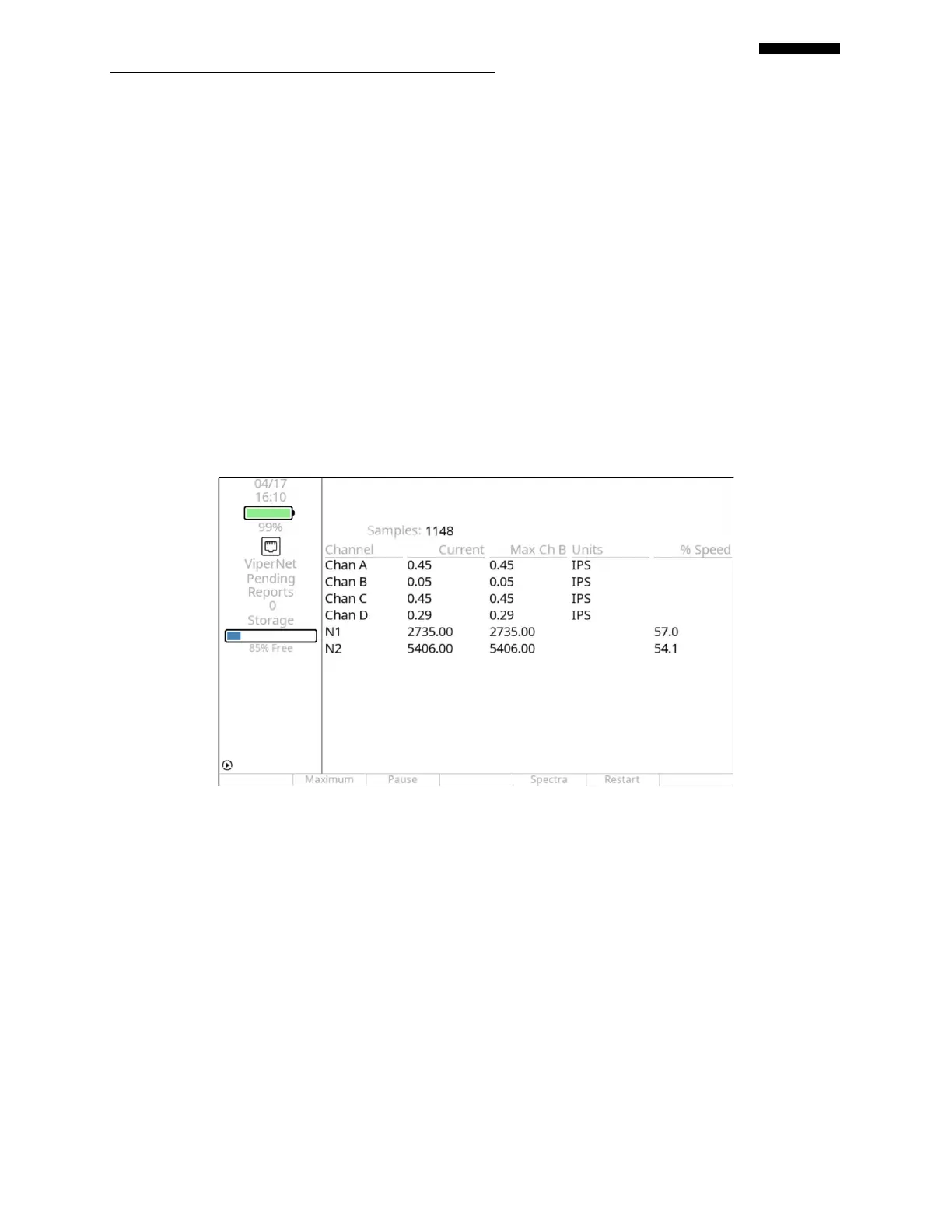

15.1.8.2.1. Pressing the [F1] “Maximum” key changes the function key menu options to the channel
select sub-menu. This allows the user to view all values in relation to the maximum
values for the selected channel. For example, pressing [F2] will display the readings of all
channels when Channel B reached its maximum value as shown below. The default
selection is channel A and the heading over the third column is reads “MxChanA”. This
will change to display the selected channel as shown in the screenshot below.
15.1.8.2.2. Pressing the [F2] “Pause” key will pause data acquisition. Once pressed, the sample
count will stop and the menu will change to “Resume” allowing the user to resume data
collection. Pressing “Resume” will resume to data collection.
15.1.8.2.3. Pressing the [F4] “Spectra” key will cause the screen to change from the overall display
to the spectra plot as described in paragraphs 15.1.8.3 and 15.1.8.4 below. You can
change back to the overall display by pressing [F4] “Overall”.
15.1.8.2.4. Pressing [F5] “Restart” will “zero out” the affected fields and restart data acquisition.
Once pressed, all data collected up to that point will be lost and data acquisition will
begin again.
