Gen II User Manual
15-18 – Overall Vibration Survey Chapter 15 Revision 4.10, Apr 20
“Overall,” and “Restart” respectively. If no cursor is displayed when pressing this key,
only the box nomenclature will change.

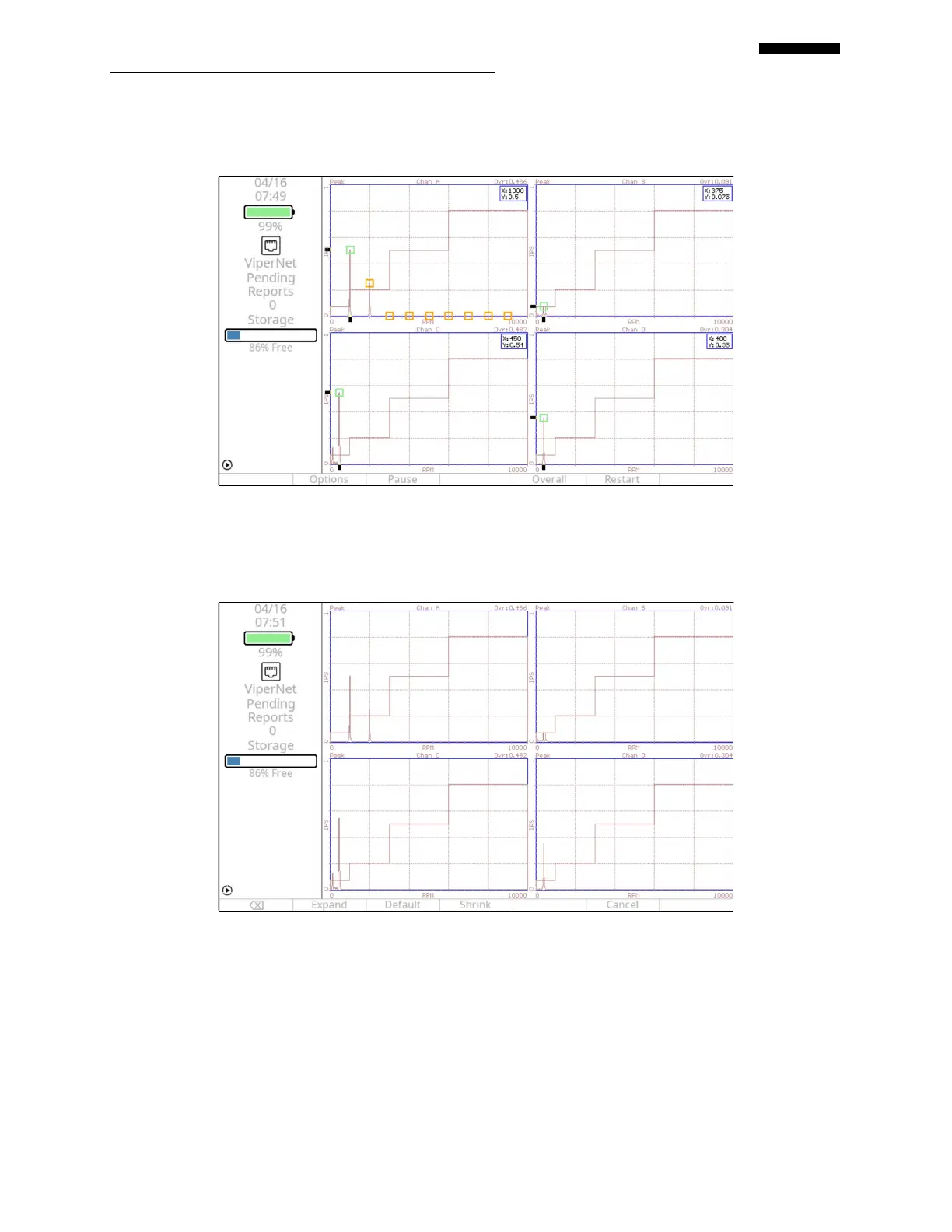

Pressing the [F2] “X scale” or [F3] “Y scale” keys will change the [F1], [F2], [F3], and
[F5] boxes to read “Expand,” “Default,” “Shrink” and “Cancel” respectively as shown in
the following figure.
Pressing the [F1] “Expand” key will expand the X or Y scale of the spectra, in effect
enlarging the viewing area. You might think of this function as a “Zoom Out” feature.
The center of the Expanded view will be the position of the cursor prior to pressing the
[F1] key. If the view is already at the maximum range of the specified scale range, no
scaling change will occur. However, the cursor will be displayed and the X, Y, and “Ovr”
(Overall) values will be shown in the upper right corner of the screen. The boxes above
the [F1], [F2], [F4] and [F5] keys will return to “Maximum,” “Pause,” “Overall,” and
To Next Page
