Gen II User Manual
15-20 – Overall Vibration Survey Chapter 15 Revision 4.10, Apr 20

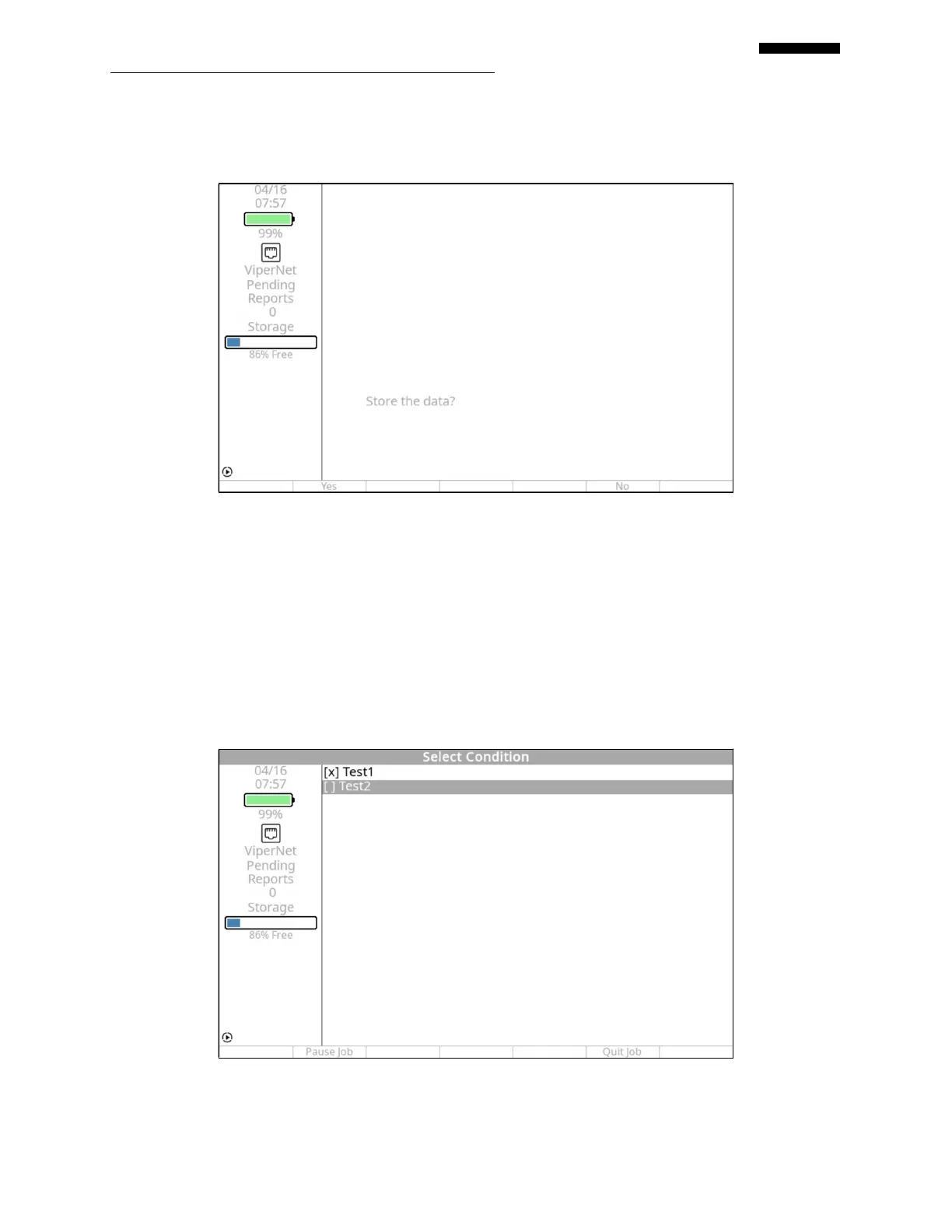

[F1] “Yes” will store the collected data to the analyzer. Pressing [F5] “No” will delete the
acquired data and it cannot be recovered.
If all conditions have been collected, the “Shut Down Engines” screen shown on the following
page will be displayed.
If additional conditions require data collection, the “Select Condition” banner screen is again
displayed as shown in the following figure. Notice that the condition for which you just collected
and stored data now has an “X” immediately to the left of the defined condition. This alerts the
user that data has been collected and stored for this condition. This does not preclude you from
selecting and acquiring new data for this condition. However, if you choose to store the data, the
previously stored data will be written over and may not be recovered.
