Gen II User Manual
22-5 – Analyzer Management Chapter 22 Revision 2.10, Apr 2020

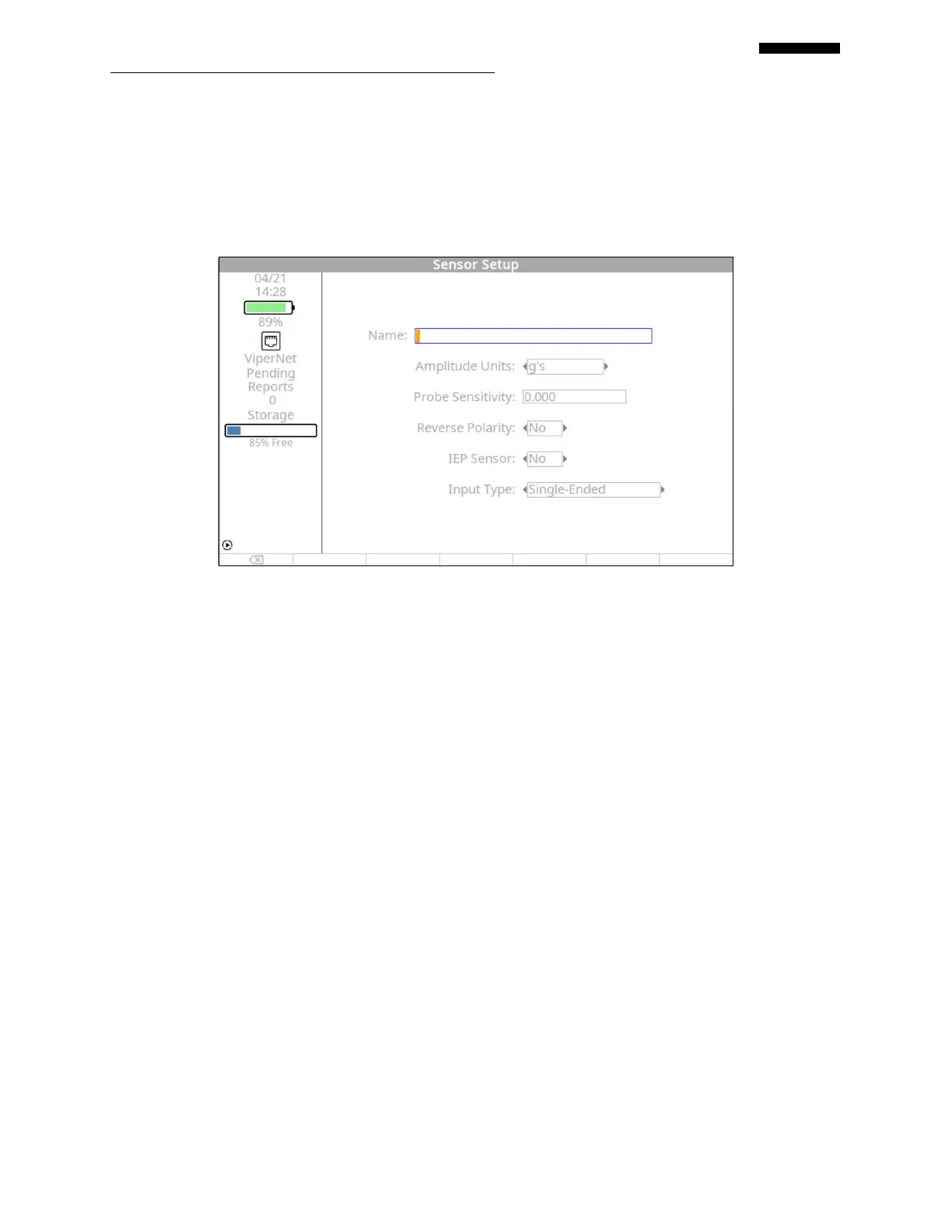

To edit an existing sensor, highlight the sensor’s name and press [OK]. This will
bring up the Sensor Setup screen shown below.
The Sensor Setup screen shown below will be displayed. Toggle between the fields using
the [] or [] key.
Enter a name for the sensor in the “Name:” field, using the keypad.
The “Amplitude Units:” field is a toggle selection field. Use the [] or [] key to
toggle between the available selections until the appropriate units are displayed.
The “Probe Sensitivity:” field is a numeric data field. It is used to enter the millivolt
(mV) output of the sensor. This information can be found on the Sensor’s Specification
Sheet from the manufacturer. Valid entries are from 0.001 to 3000.0 mV.
The “Reverse Polarity:” is a toggle selection field. The two selections are “Yes” and
“No”. This is a special function that will only apply to a very few sensors available. The
selection should be toggled to “No” for the majority of cases. The ACES 991V sensor
uses the reverse polarity and is set to “Yes”. If you do not know the polarity
requirements of the sensor, call ACES Systems and ask for Customer Support.
The “IEP Sensor:” field is a toggle selection field. The two selections are “Yes” and
“No.” This is a special field that allows the analyzer to determine which sensors require
excitation voltage.
The “Input Type:” is a toggle selection field. The two selections are “Single-Ended”
and “Differential”. This information is obtained directly from the Sensor’s Specification
