7 — ONT equipment layout
Alcatel-Lucent 7342 ISAM FTTU ONT R04.05.06 July 2008 7-9
3FE 51892 AAAA TCZZA Edition 01 ONT Product Information Manual

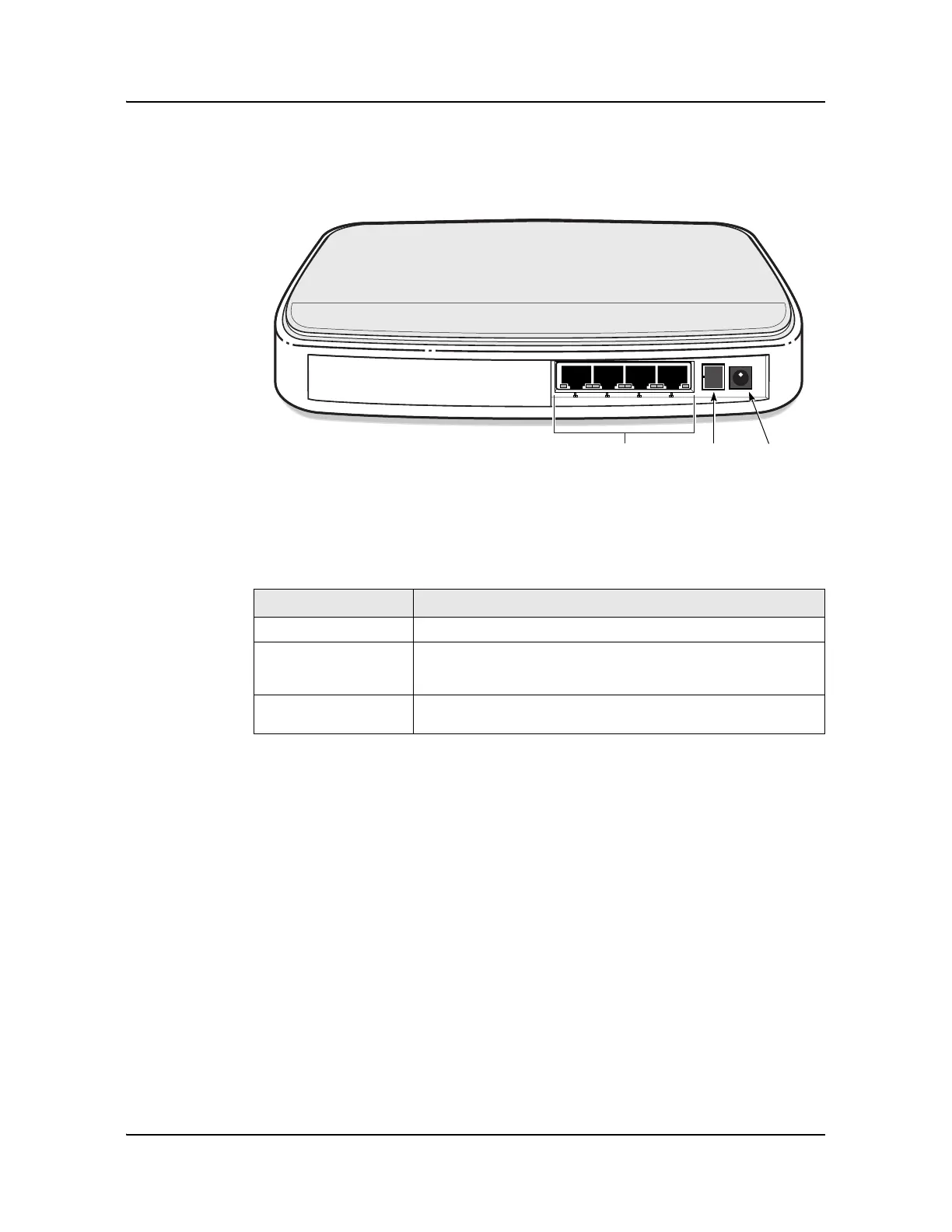

Figure 7-5 shows the I-040G-A indoor ONT physical connections.
Figure 7-5 I-040G-A indoor ONT physical connections
Table 7-6 describes the I-040G-A indoor ONT physical connections.
Table 7-6 I-040G-A indoor ONT physical connections
I-211M-E connections and components
The I-211M-E indoor ONT is designed for in-wall installations in pre-constructed
telecommunications cabinets or on-wall installations in a telecommunications room.
Figure 7-6 shows the I-211M-E indoor ONT with the inner cover closed.
Connection Description
Fiber optic port This connection is provided through a fiber optic cable.
Ethernet ports This connection is provided through an Ethernet RJ-45 cable. Up to four
Ethernet connections are supported.The Ethernet port can support
both data and in-band video services on all four interfaces.
Power This connection is provided through a cable to the ac/dc power
converter.
Ethernet
ports
Power
connectio
n
1966
7
2 112 3 4
PON
Fiber optic
port
