Alcatel-Lucent 7342 - LP MDU Outdoor ONT Connections and Components; O-24121 V-A and O-24120 V-A Connections and Components; Figure 7-17 Connectors on an O-24121 V-A

7 — ONT equipment layout
7-24 July 2008 Alcatel-Lucent 7342 ISAM FTTU ONT R04.05.06
ONT Product Information Manual Edition 01 3FE 51892 AAAA TCZZA
7.6 LP MDU outdoor ONT connections and components
The following sections describe the different LP MDU outdoor ONT models and
connections.
O-24121V-A and O-24120V-A connections and components

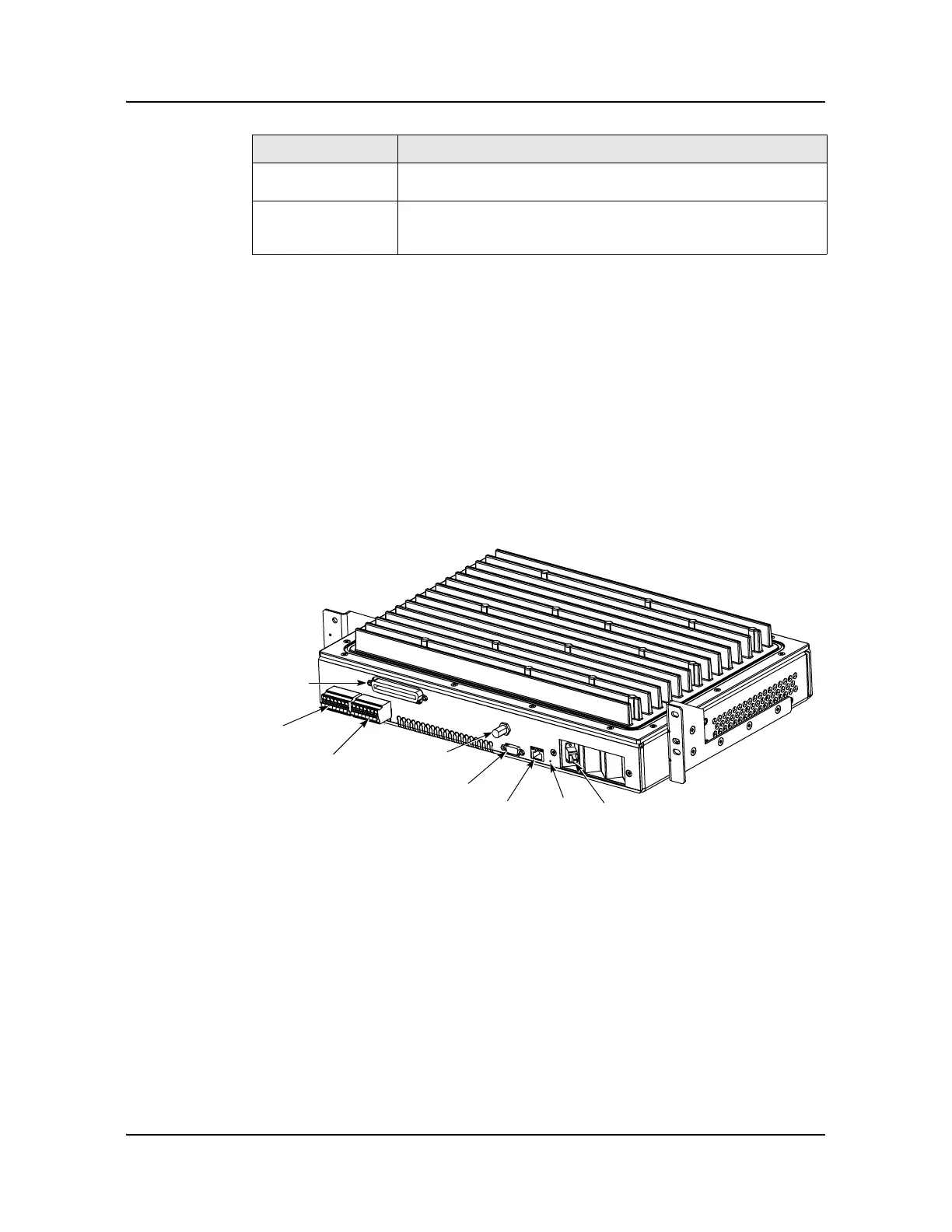

Figure 7-17 shows the O-24121V-A outdoor ONT physical connections.
Figure 7-17 Connectors on an O-24121V-A
Figure 7-18 shows the LP MDU components when installed in an enclosure. This
example shows either a O-24121V-A or O-24120V-A outdoor ONT with RF video.
PON optical
connection
This connection is provided through an SC/APC connector for the physical
interface to the PON.
Power and alarm
connections
Power and alarm connections between the ONT, Alloptic MicroNode 190
RPT, and an UPS is provided by a 12 V dc power cable supplied by Alloptic,
Inc.
Connection Description
(2 of 2)
VIDEO
POTS
POWER
BTRY
FAIL
VIDEO
DATA
NWK
MGMT
INTF
POTS
DATA 1
DATA 2
DATA 3
DATA 4
DATA 5
DATA 6
DATA 7
DATA 8
DATA 9
DATA 1 0
DATA 1 1
DATA 1 2
CRAFT
ETHERNET
SAVE DATA
GPON
Ethernet
port
Video coaxial
connector
Auxiliary
environmental
alarm
Power and
alarm connector
VDSL2 and POTS
connector
Craft port
1893
7
Fiber optic
connector
Save
Data
button
