7 — ONT equipment layout
7-20 July 2008 Alcatel-Lucent 7342 ISAM FTTU ONT R04.05.06
ONT Product Information Manual Edition 01 3FE 51892 AAAA TCZZA

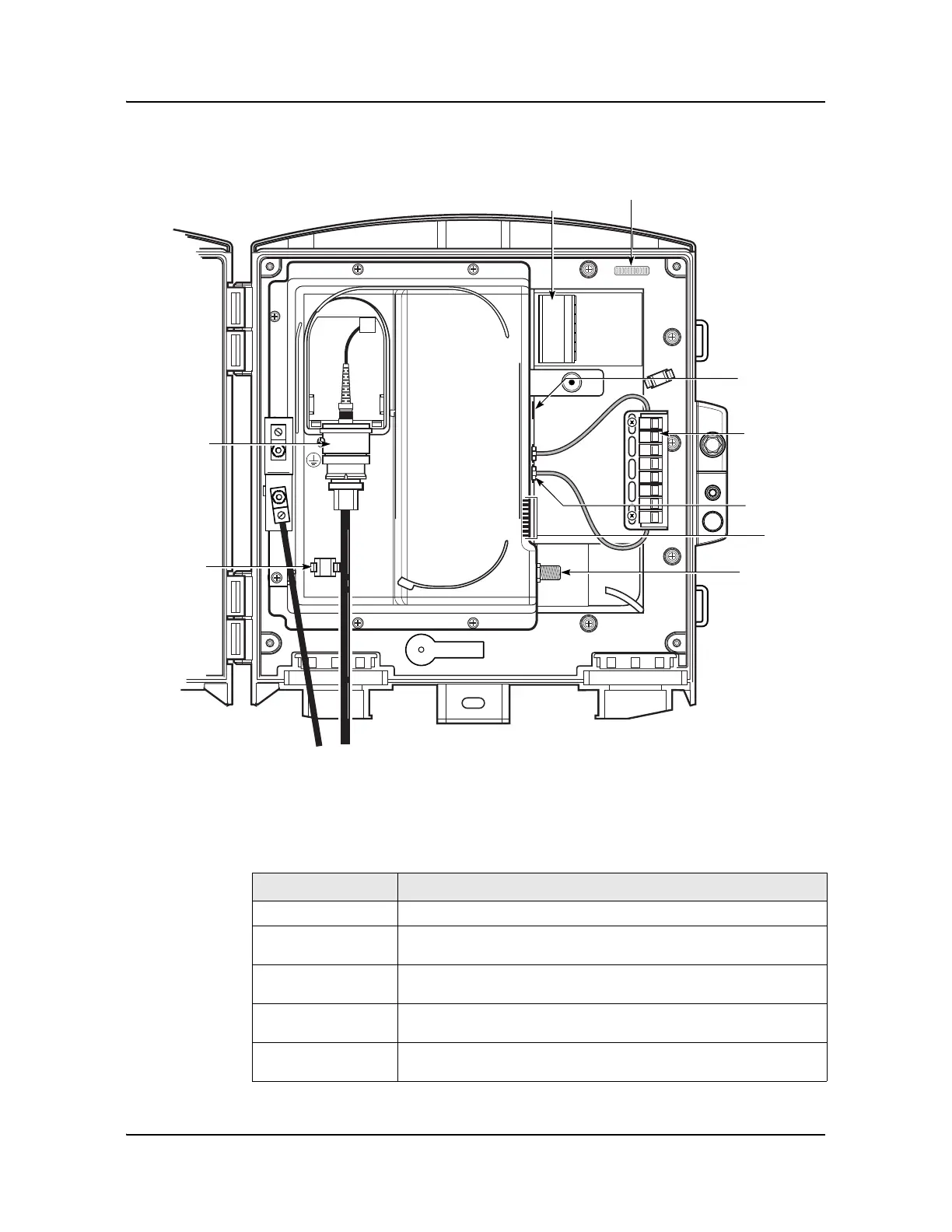

Figure 7-14 Connectors on an O-211M-G (AE variant)
Table 7-11 describes the outdoor ONT O-211M-G (AE) physical connections.
Table 7-11 Outdoor ONT O-211M-G (AE) connections
OptiTap tracer
wire connector
Ethernet IDC
connection
TR TR TR TR
TELCO
1955
8
F type coaxia
l
connection
(MOCA)
Power and
alarm IDC
connection
Serial
number
LEDS
Ethernet port
RJ-11 POTS
ports
POTS IDC
connectors
Optitap
connector
Cable tie
down
TRTRTRTRTRTRTRTR
Connection Description
POTS connections This connection is provided through an IDC connector and RJ-11 port.
Data, IP video
(1)
, and
VoIP connections
This connection is provided through Ethernet RJ-45 or IDC type connectors
(if available) for connection to Ethernet lines.
RF video and MoCA
connection
This connection is provided through the F-type connector for CATV
service, and MoCA data and IPTV services.
PON optical
connection
This connection is provided through an OptiTap or SC/APC connector for
the physical interface to the PON.
Power and alarm
connections
Power and alarm connections to an external UPS with support for battery
alarms are provided.
