7 — ONT equipment layout
7-44 July 2008 Alcatel-Lucent 7342 ISAM FTTU ONT R04.05.06
ONT Product Information Manual Edition 01 3FE 51892 AAAA TCZZA

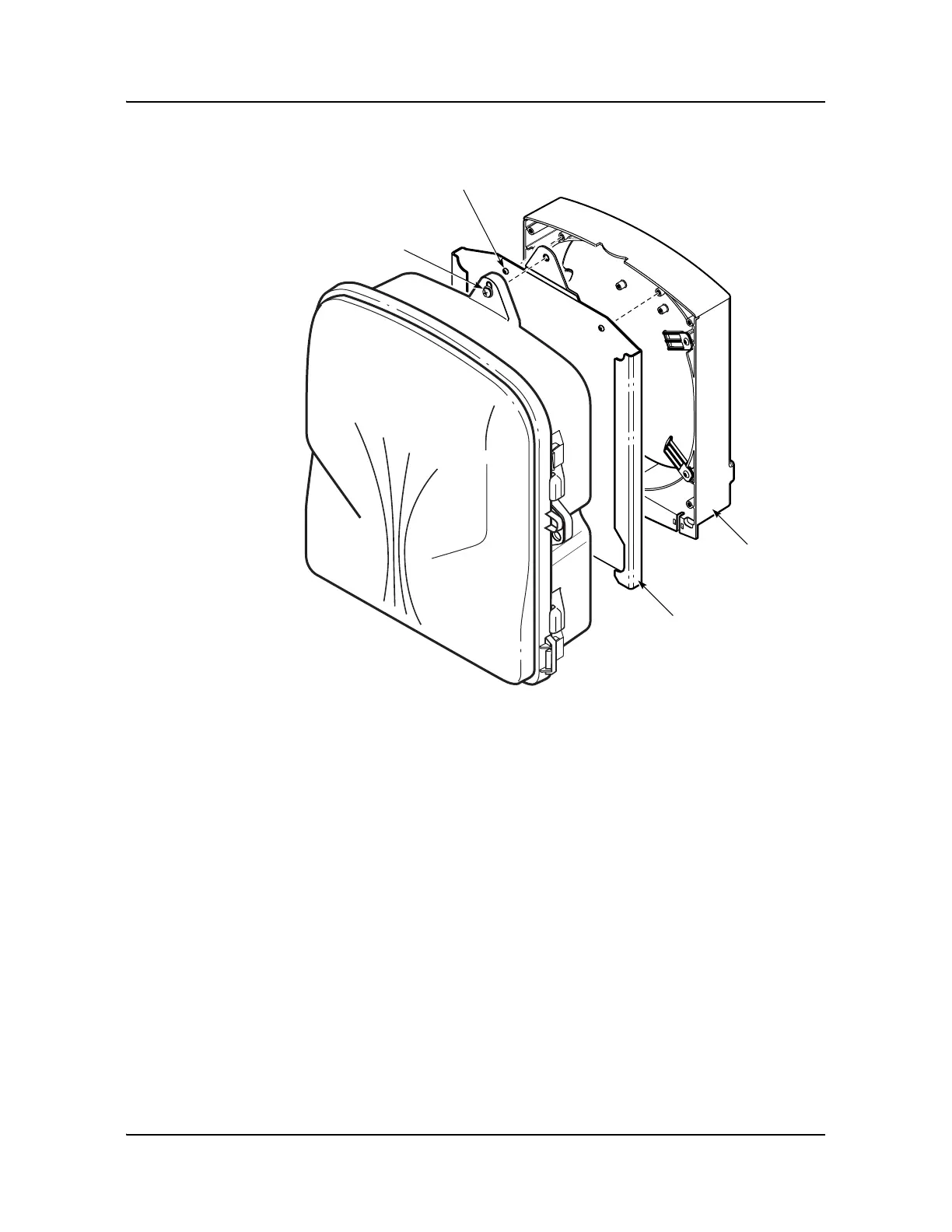

Figure 7-34 Cable storage compartment with storage box mounting bracket
7.11 Location options
ONTs, except the business ONT, and modular ONTs, are temperature hardened and
can be installed either inside or outside the residence or building. See Environmental
considerations for rack installed ONTs in chapter 10 for further installation
instructions for the LP MDU outdoor ONT.
The LP MDU has multiple location options:
• can be horizontally installed in a 19 in. (48.26 cm) or 23 in. (58.42 cm) rack
• can be installed in a communication closet, a building terminal room, or a
minimum point of entry facility
• can be installed in an enclosure for outdoor installations; different enclosure types
offer different connection options, including SWRD, IDC, punchdown blocks, or
screw terminals.
The indoor ONT is not temperature-hardened and must be installed inside a single
residence.
#8-16 X 1/2 thread forming screw (4 places)
#1/4 -20 x 7/8 pan head screw
#1/4 flat washer (2 places)
Cable storage
compartment
Class 1 storage box
mounting bracket
1904
