8 — UPS LEDs
Alcatel-Lucent 7342 ISAM FTTU ONT R04.05.06 July 2008 8-3
3FE 51892 AAAA TCZZA Edition 01 ONT Product Information Manual
This section describes LEDs for UPS equipment as follows:
• Table 8-3 provides APC UPS LED descriptions for indoor, Version D
(O-821G-D) outdoor, business, and modular ONTs
• Figure 8-1 and Table 8-4 describe the APC UPS LEDs for Version A, B, and C
outdoor ONTs and business ONT
• Figure 8-2 and Table 8-5 describe the FlexNet UPS for Version D (O-821G-D)
outdoor ONT deployments only
• Figure 8-3 and Table 8-7 describe the Delta OPSU/BBU UPS
• Table 8-8 describe the Delta DUPS-1232A UPS
• Table 8-6 describes the CyberPower CyberShield CS 24 UPS for deployments of
certain indoor and outdoor ONTs
• Figure 8-4 and Table 8-9 describes the CyberPower CyberShield CS 36
PSU/BBU for certain ONTs
• Table 8-10 describes the CyberPower CyberShield CS 50 UPS for certain ONTs
Table 8-3 APC UPS LEDs for indoor, Version D SOHO outdoor, business, and modular ONTs

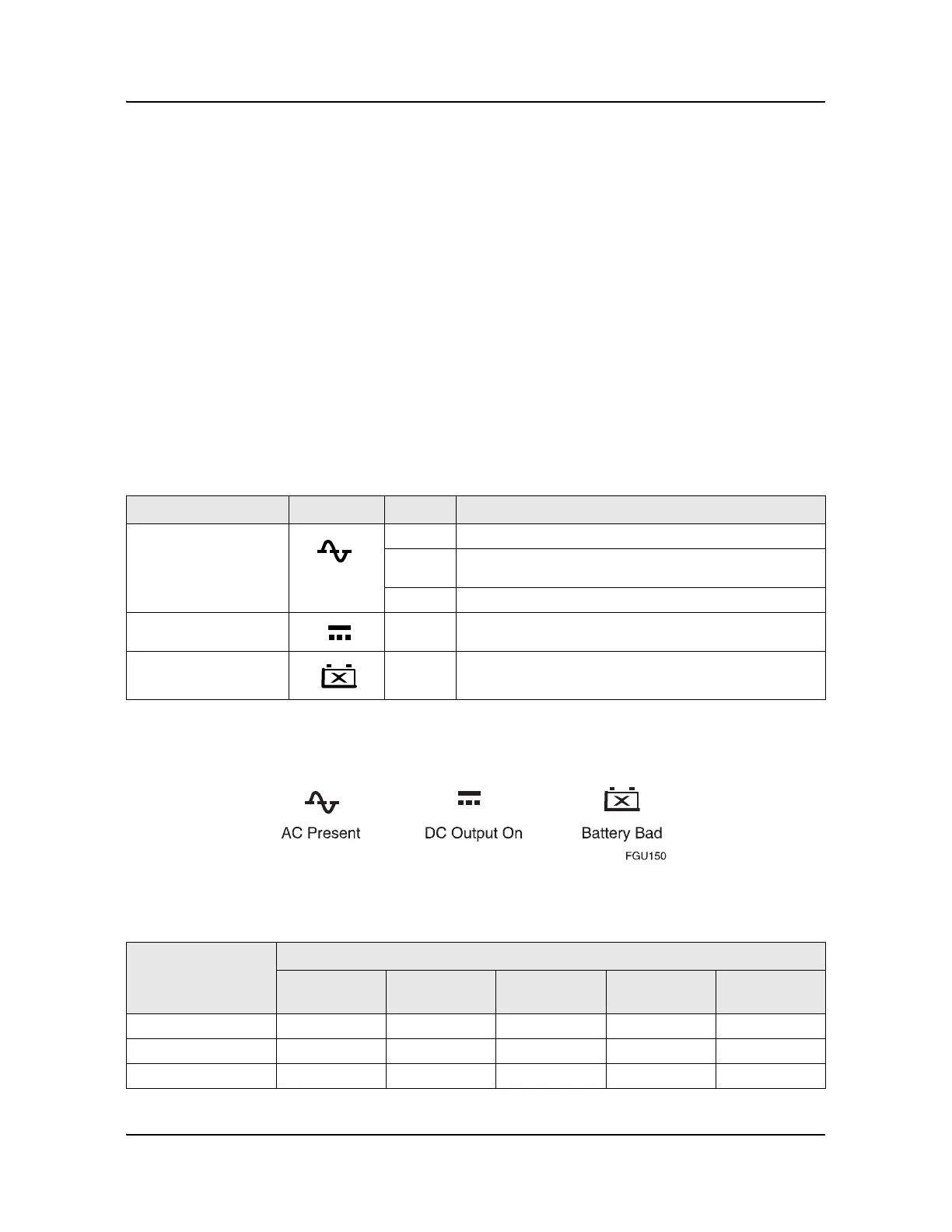

Figure 8-1 APC UPS LED icons for Versions A, B, and C outdoor ONTs and business ONT
Table 8-4 APC UPS LEDs for Versions A, B, and C outdoor ONTs and business ONT
Name Indicator Color Description
AC present Green Operating on ac power
Green
flashing
High-charge mode
Yellow Operating on battery
DC output on Green DC output is present
Battery bad Red Battery is missing or needs replacement
LED name Status
Operating on ac
power
Operating on
battery power
Low battery
shutdown
(1)
Overload
condition
(2)
Bad battery
(3)
AC Present Green Yellow Off Green Green or yellow
DC Output Green Green Off Off Green
Battery Bad Off Off Off Off Red
