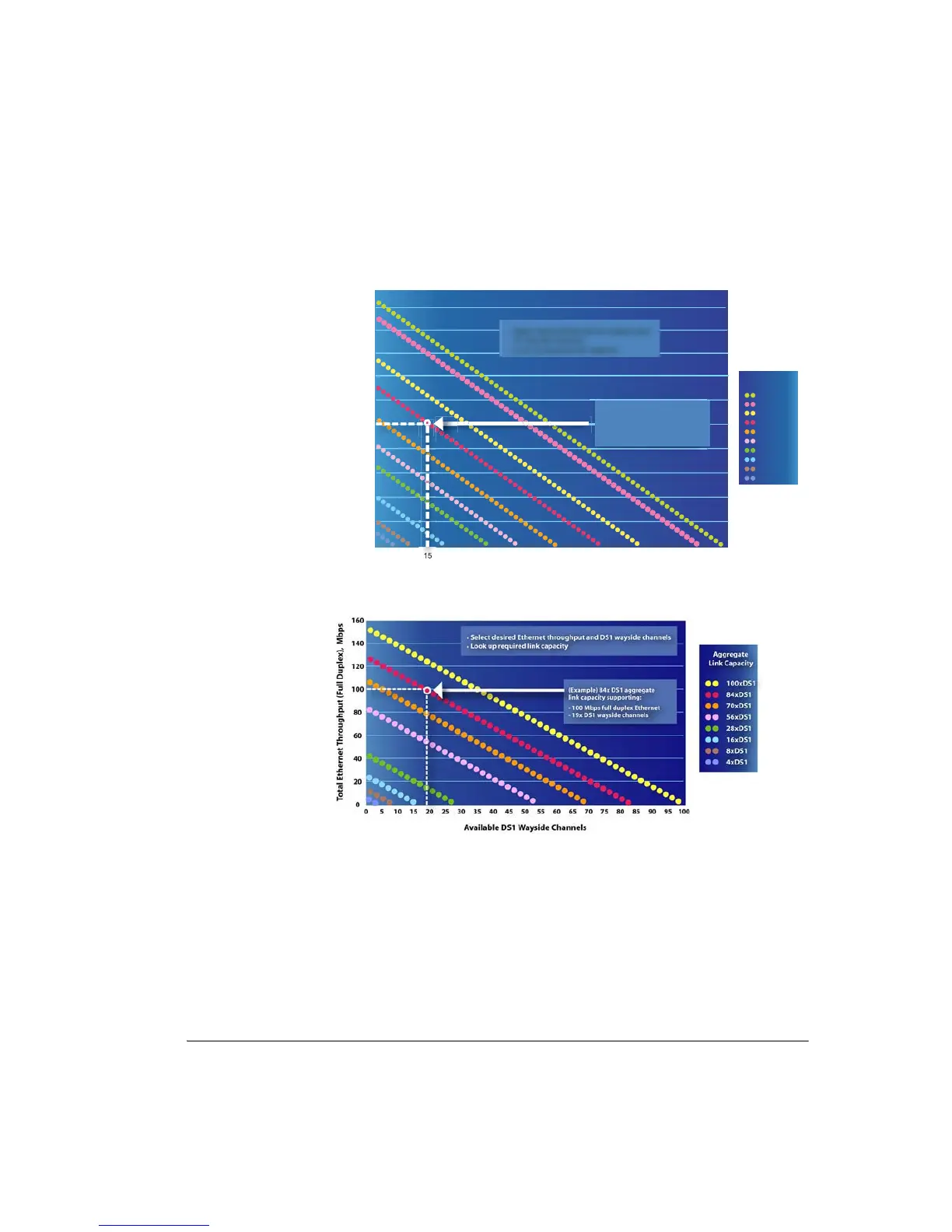

Figure 3-6. Ethernet versus Wayside Bandwidth Assignment: NxE1
Figure 3-7. Ethernet versus Wayside Bandwidth Assignment: NxDS1
150 Mbps Backplane Selection
The DAC GE is required for an Nx150 Mbps backplane selection. Radio link
capacity is scalable for 1x150 Mbps, or 2x150 Mbps to support 150 Mbps or 300
Mbps Ethernet, or 150 Mbps Ethernet with 150 Mbps assigned to an STM1/OC3
circuit.
•
Select desired Ethernet capacity and
E1 wayside channels
•
Look up required link capacity
(Example) 130 Mbps aggregate
link capacity supporting:
- 100 Mbps full duplex Ethernet
- 15x E1 wayside channels
Eclipse Liquid Bandwidth Assignment
Total Ethernet Capacity (Full Duplex) Mbit/s
Available E1 Wayside Channels
153 Mbit/s
190 Mbit/s
204 Mbit/s
130 Mbit/s
106 Mbit/s
82 Mbit/s
64 Mbit/s
41 Mbit/s
20 Mbit/s
10 Mbit/s
Aggregate
Link Capacity
0
20
40
60
80
100
120
140
160
180
200
0
10
20 25
30
35 40 45 50 55 60 65 70 80 85 90
95 100
