9500 MXC User Manual
3DB 23063 ADAA - Rev 004 July 2007 Vol. II-3-3
Slot Assignments

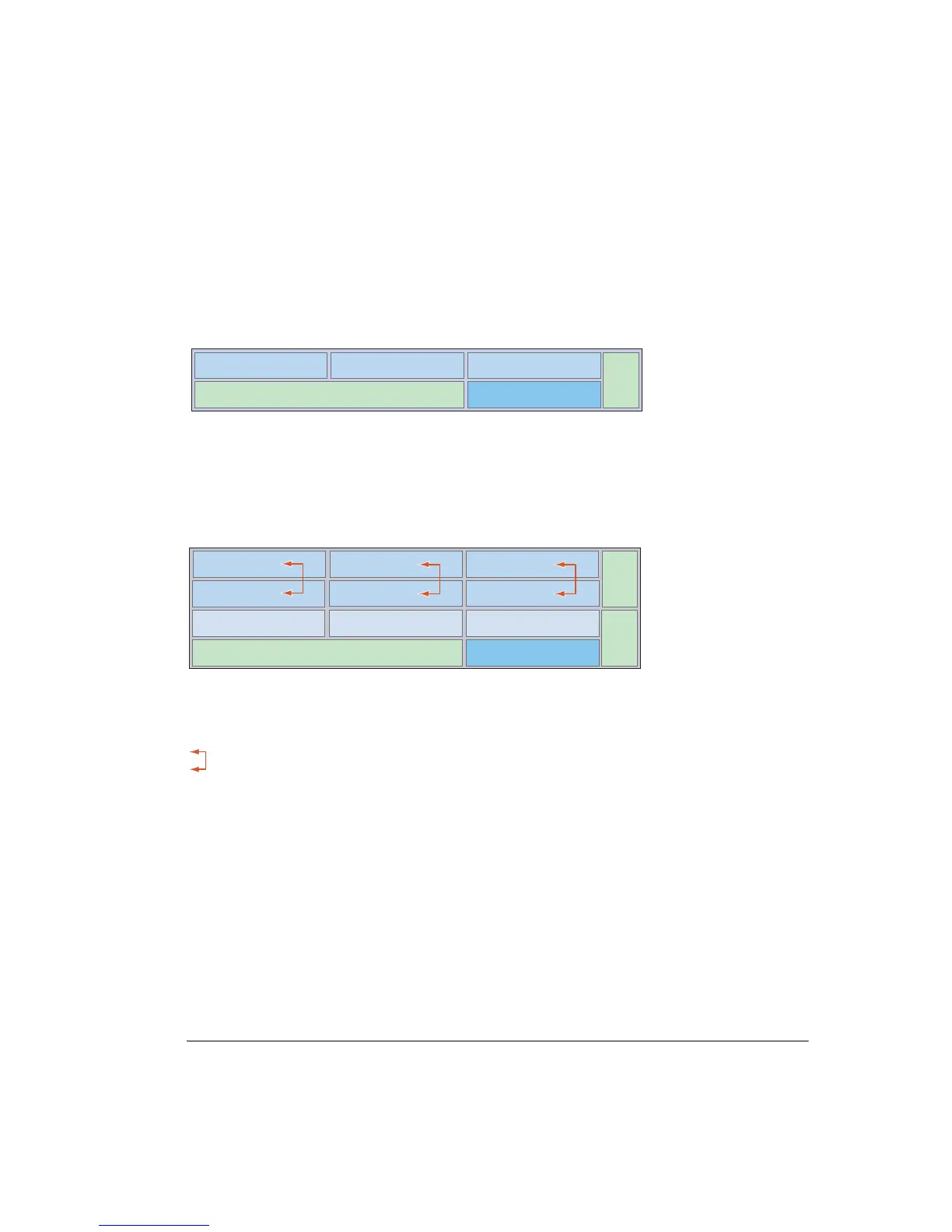

Figure 3-2 illustrates INU and INUe slot assignment rules.
Figure 3-2. INU and INUe slot assignments
Cross-Connects
All cards plug into a backplane, which carries a high-speed parallel bus to
provide the cross-connect and end-to-end circuit connectivity for traffic channels,
auxiliary data, NMS, and protection switching.
The backplane bus can operate in one of five user-programmable configurations,
NxE1 (2.048 Mbps), NxDS1 (1.544 Mbps), NxDS3 (44.736 Mbps), or NxSTM1/
OC3 (155.52 Mbps). In this way, a 9500 MXC Node can be configured to be an
NxE1, NxDS1, NxDS3, or NxSTM1/OC3 radio, or an Ethernet radio with or
without companion TDM traffic.
INU
INUe
Fan
Slot 1 Slot 2 Slot 3
NCC Slot 4
Fan
Slot 1 Slot 2 Slot 3
Slot 4
Fan
Slot 7
Slot 5 Slot 6
Slot 9
Slot 8
NCC
Slot 10
Slots 1, 2, 3, 4 are universal: any RAC, DAC or AUX plug-in
Slot 4 is NPC or universal: NPC or any RAC, DAC, AUX
NCC and FAN slots are dedicated
For protected operation the RAC, or RAC/DAC 155oM pairings can be installed in any
of the universal slots
Slots 1, 2, 3, 4, 5, 6 are universal: any RAC, DAC or AUX plug-in
Slots 7, 8, 9 are restricted: any DAC or AUX (except DAC 155oM and AUX*)
Slot 10 is restricted: NPC option only
NCC and FAN slots are dedicated
For protected operation the RAC, or RAC/DAC 155oM pairings must be installed in
the positions indicated by the arrows
* Internal (backplane) NMS access is only provided for slots 1 to 6. Do not install
DAC 155oM or AUX in slots 7 to 9 if an NMS connection is required in their configuration
