Chapter 2. 9500 MXC Terminals
Vol. II-2-34 Alcatel-Lucent
Platform Layout and Interoperation Data
This section includes data on platform layout, operational parameters, and
interoperation.
Figure 2-15 illustrates support for:
• Protected operation.
• ODU options.
• Capacity and modulation.
Table 2-11 on page 2-35 summaries IDU/ODU options and over-air
compatibility.

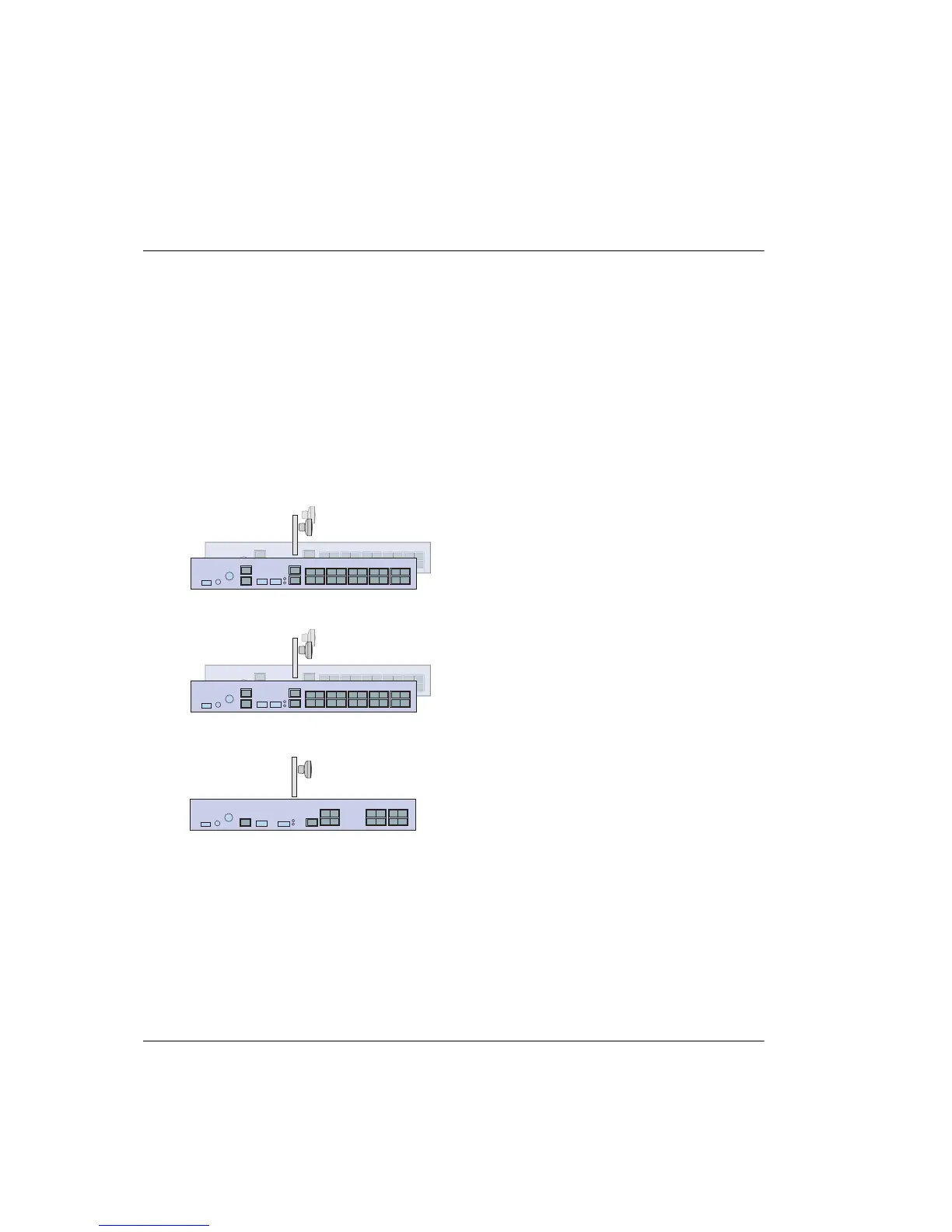

Figure 2-15. 9500 MXC IDU Platforms
ODU 300ep/hp
QPSK to 256 QAM modulation
Non-protected operation
Ethernet to 200 Mbps with up to 8xE1/DS1 wayside
Can be linked to 9500 MXC Node (ODU 300, RAC 30v3, RAC 3X
DAC ES, DAC 4/16x, AUX)
Includes auxiliary data and alarm I/O
ODU 300ep/hp
QPSK to 64 QAM modulation for 5x to 40xE1, 4x to 32xDS1
Non-protected, hot-standby, space diversity
Can be linked to 9500 MXC Node (ODU 300, RAC 30v3,
DAC 4/16x, AUX)
Includes auxiliary data and alarm I/O
IDU 20x
IDU ES
ODU 300ep/hp
16/64/128 QAM modulation for 1xSTM1/OC3
Non-protected, hot-standby, space diversity
Can be linked to 9500 MXC Node (ODU 300, RAC 30v3, RAC 3X,
DAC 155o, AUX)
Includes auxiliary data and alarm I/O
IDU 155o
